10-Port GBE Industrial Profi Line Switch (opt. PoE) CERT

10-Port GBE Industrial Profi Line Switch (opt. PoE) CERT
Secure Download
Detail information
Description
Description

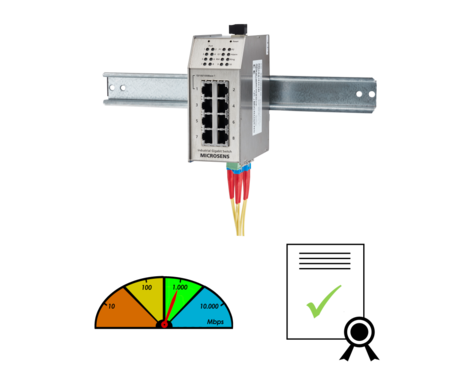

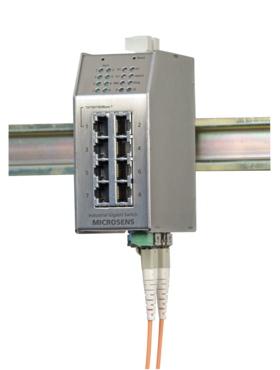

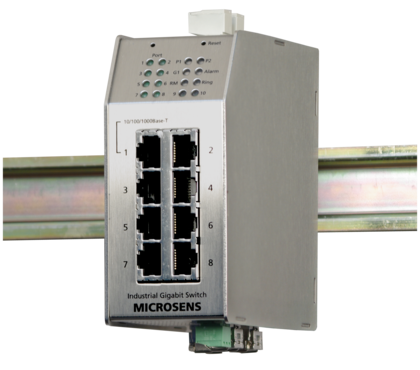

The 10-port Gigabit Industrial Switch of the Profi Line series is the most compact manageable switch solution from MICROSENS for industrial networking. In addition to the two SFP uplink ports (100/1000Base-X SFP slots) and the seven 10/100Base-TX copper ports, another Dual Media Comboport is available (10/100/1000Base-T or 100/1000Base-X).



The Profi Line version is specially approved for rail applications. With certification according to the standards EN50121-4:2006 (for stricter EMC requirements for electromagnetic immunity) and EN50125-3:2003 (temperature, climate, vibration and shock resistance). The switch can be placed directly up to 1 m of the railway track.

With further certifications according to IEC 61850-3 and IEEE 1613, this switch can also be used in extreme high-voltage environments such as those found in power plants and transformer stations of power utilities and in energy transport. The gigabit ports are available for setting up a fiber optic ring (fast redundancy) and the copper ports for connecting Ethernet devices such as machine controllers, network uplinks, consoles and other network devices.

Fast redundancy is made possible by a mechanism patented by MICROSENS that reconfigures the Ethernet network within milliseconds in the event of a fault. The switches are configured and monitored via the integrated management. This can be done via Telnet, SNMP, web or the MICROSENS NMP software (Network Management Platform).

The PoE version of the Profi Line Switch delivers PoE according to IEEE 802.3af and is powered via 48 VDC, while the non-PoE version is powered via 24 VDC.

Products
Products
Products

MS650869M-B


Product is available

MS650869M-B

10-Port GbE Industrial Profi Line Switch ZERT 1x 10/100/1000T bzw. 100/1000X (Combo), 2x 100/1000X, 7x 10/100TX, 2x 24VDC, DIN-Rail, managed, RC, IEC61850/EN50121-zert.

8x RJ-45, 3x SFP Slots, 2x 2plg. 24VDC, 1x RC

Products

MS650869PM-48-B


Product is available

MS650869PM-48-B

10-Port GbE Industrial Profi Line Switch PoE ZERT 1x 10/100/1000T PoE bzw. 100/1000X (Combo), 2x 100/1000X, 7x 10/100TX PoE, 2x 48VDC, DIN-Rail, managed, RC, IEC61850/EN50121-zert.

8x RJ-45, 3x SFP Slots, 2x 2plg. 48VDC, 1x RC
