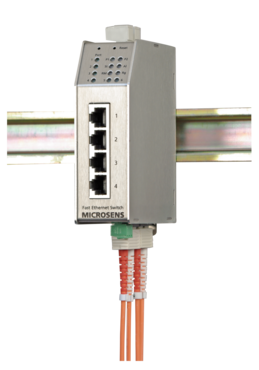

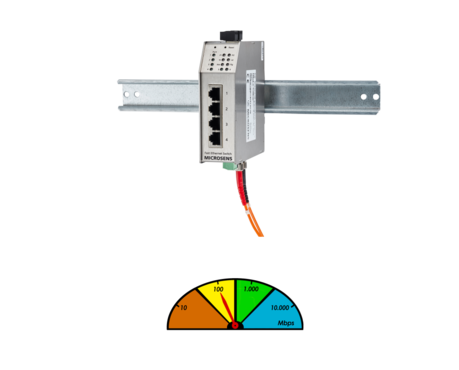

6-Port FE Industrial Profi Line Switch (opt. PoE)

6-Port FE Industrial Profi Line Switch (opt. PoE)

6-Port FE Industrial Profi Line Switch (opt. PoE)

  • Compact Fast Ethernet 6 port ring switch, 2x LWL 100FX with integrated SC / ST optics available in multimode and single mode
  • Redundant in power and data, fail-safe due to MICROSENS ring function with shortest recovery time
  • Convenient management via Web, Telnet, SNMP interface or MICROSENS NMP software
  • Optional version with integrated Power-over-Ethernet (802.3af) available
  • Robust, compact and fanless VA housing with integrated DIN rail adapter
  • Effective surge protection
Secure Download
Detail information
Description
Description

The 6-port Fast Ethernet Industrial Switch of the Profi Line series is the most compact manageable switch solution from MICROSENS for industrial networking. In addition to the two fiber optic uplink ports (100Base-FX, depending on the version SC Multimode or Single Mode or ST Multimode or Single Mode with range up to 80km), four 10/100Base-TX copper ports are available.



The fiber optic ports can be used to set up a fiber optic ring (fast redundancy, Fast Ethernet with a reconfiguration time of 100ms), while the copper ports are available for connecting Ethernet devices such as machine controllers, network uplinks, consoles and other network devices.

Fast redundancy is made possible by a mechanism patented by MICROSENS, which reconfigures the Ethernet network within milliseconds in the event of a fault.  The switches are configured and monitored via the integrated management. This can be done via Telnet, SNMP, web or the MICROSENS NMP software (Network Management Platform).

The PoE version of the Profi Line Switch delivers PoE according to IEEE 802.3af on all four copper ports and is powered via 48 VDC, while the non-PoE version is powered with 24 VDC.





Products
Products
Products

MS650501M


Product is available

MS650501M

6-Port FE Industrial Profi Line Switch 2x 100FX ST/MM, 4x 10/100TX, 2x 24VDC, DIN-Rail, managed, RC

4x RJ-45, 2x ST duplex MM, 2x 2plg. 24VDC, 1x RC

Products

MS650501MX


Product is available

MS650501MX

Industrie-Switch 4x10/100TX+2x100FX MMST 2xRedundant-Uplink ST 1310nm Multimode erweiterter Temperaturbereich -40..75°C

4x RJ-45, 2x ST duplex MM, 2x 2plg. 24VDC, 1x RC

Products

MS650501PM-48


Product is available

MS650501PM-48

6-Port FE Industrial Profi Line Switch PoE 2x 100FX ST/MM, 4x 10/100TX PoE, 2x 48VDC, DIN-Rail, managed, RC

4x RJ-45, 2x ST duplex MM, 2x 2plg. 48VDC, 1x RC

Products

MS650502M


Product is available

MS650502M

6-Port FE Industrial Profi Line Switch 2x 100FX SC/MM, 4x 10/100TX, 2x 24VDC, DIN-Rail, managed, RC

4x RJ-45, 2x SC duplex MM, 2x 2plg. 24VDC, 1x RC

Products

MS650502MX


Product is available

MS650502MX

Industrie-Switch 4x10/100TX+2x100FX MMSC 2xRedundant-Uplink SC 1310nm Multimode erweiterter Temperaturbereich -40..75°C

4x RJ-45, 2x SC duplex MM, 2x 2plg. 24VDC, 1x RC

Products

MS650502PM-48


Product is available

MS650502PM-48

6-Port FE Industrial Profi Line Switch PoE 2x 100FX SC/MM, 4x 10/100TX PoE, 2x 48VDC, DIN-Rail, managed, RC

4x RJ-45, 2x SC duplex MM, 2x 2plg. 48VDC, 1x RC

Products

MS650504M


Product is available

MS650504M

6-Port FE Industrial Profi Line Switch 2x 100FX SC/SM (15km), 4x 10/100TX, 2x 24VDC, DIN-Rail, managed, RC

4x RJ-45, 2x SC duplex SM, 2x 2plg. 24VDC, 1x RC

Products

MS650504MX


Product is available

MS650504MX

Industrie-Switch 4x10/100TX+2x100FX SMSC 2xRedundant-Uplink SC 1310nm Monomode erweiterter Temperaturbereich -40..75°C

4x RJ-45, 2x SC duplex SM, 2x 2plg. 24VDC, 1x RC

Products

MS650504PM-48


Product is available

MS650504PM-48

6-Port FE Industrial Profi Line Switch PoE 2x 100FX SC/SM (15km), 4x 10/100TX PoE, 2x 48VDC, DIN-Rail, managed, RC

4x RJ-45, 2x SC duplex SM, 2x 2plg. 48VDC, 1x RC
