6-Port GbE Micro Switch TP G6
MS450186-G6+
MS450186-G6+
MS450187-G6+
MS450187-G6+

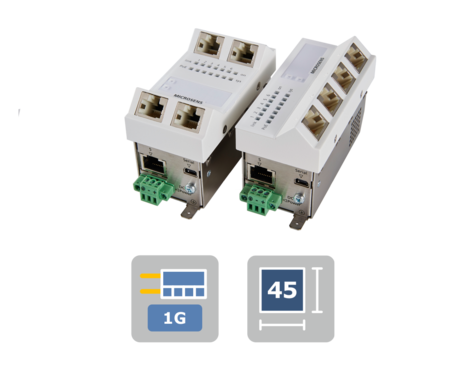

6-Port GbE Micro Switch TP G6

  • Smallest & most compact Gigabit Ethernet switch on the market! M45 design for tool-free installation in cable ducts, floor tanks etc.
  • 6-Port Full Gigabit Ethernet Switch
  • High security through SSH, HTTPS, SNMPv3, Port Security 802.1x and full RADIUS NAC compatibility
  • Internal power supply with 230VAC input
  • Intuitive management via Web, SSH, SNMP interface and MICROSENS NMP software
  • MicroSD, Device Server Port
Secure Download
Detail information
Description
Description

With the current 6th generation of Micro Switches (according to IEEE 802.3az Energy Efficient Ethernet) MICROSENS continues to use the unique device form of the installation switch, which has been available since 1995.

The Micro Switch TP a 6-port copper version (6x 10/100/1000Base-T) is a special Micro Switch version that can be integrated into existing infrastructures as an extension component of existing standard structured TP cabling in order to increase the number of user ports at the workstation. Another application of the Micro Switch TP is the optimization of shared cabling network infrastructures, in which the 2x4 TP cores are re-equipped to 1x8 and the limited number of TP links is increased using Micro Switch.

The Micro Switch TP hides 2 of its 6 TP ports within the installation as an uplink or for expansion purposes. 4 TP ports 10/100/1000Base-T are always designed as user ports.

The non-PoE Micro Switch TP versionis powered directly via the existing 230 VAC network.

The mini-USB interface, which is hidden when installed, serves as a console port for direct management access to the high-performance Layer2 management. This based on a future-proof Linux operating system. The very wide range of features (especially in the area of IT security, IEEE 802.1x, VLANs IEEE 802.1q etc.) is shown in the firmware feature list (see download area), which is always extended by the implemented features after the firmware has been upgraded.

Access to the switch is password-protected via all common management interfaces such as browser-based (via web browser https/http), SSH, SNMPv3. MICROSENS NMP software optimizes access to a large number of micro switches within an FTTO network using group and master configuration.

The microSD card slot can optionally be used as a backup system for firmware and configuration. The complete device status can be transferred by exchanging the card. The memory card complies with the industry standard. A fault-tolerant journaling file system is used, which can be encrypted using the security option.

Products
Products
Products

MS450186M-G6+


Product is available

MS450186M-G6+

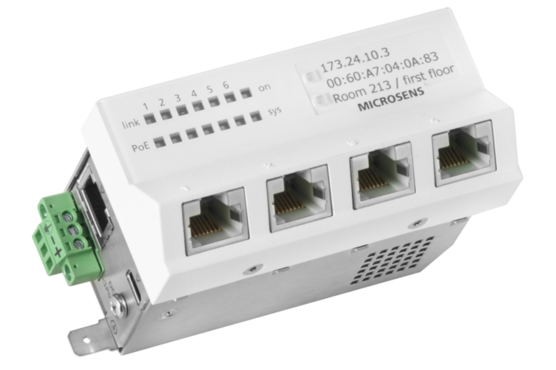

6-Port GbE Micro Switch TP G6 6x 10/100/1000T, horizontal, managed 230VAC, microSD-Slot, RS-232 Port (mini USB)

6x RJ-45, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS450187M-G6+


Product is available

MS450187M-G6+

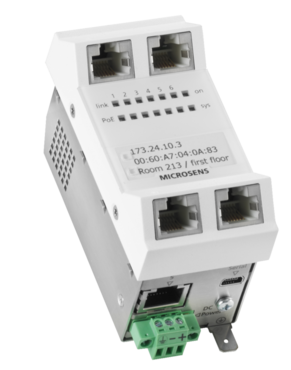

6-Port GbE Micro Switch TP G6 6x 10/100/1000T, vertikal, managed 230VAC, microSD-Slot, RS-232 Port (mini USB)

6x RJ-45, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Accessories
Accessories

MS140894X-4G


Product is available

MS140894X-4G

Micro Storage Media Card 4GB für MICROSENS G6 Micro Switches, -25..+85°C

Accessories

MS140805-G6


Product is available

MS140805-G6

DIN-Rail Adapter für Micro Switch G6 drehbar, inkl. Schrauben

Accessories

MS190410-01,5


Product is available

MS190410-01,5

Konsolenkabel für G6 Micro Switch mit RS-232 Port (mini USB), auf SUBD9 weiblich, Länge 1,5m

Accessories

MS140800


Product is available

MS140800

Halter für Hutschiene Kunststoff schraubbar, schwarz

Accessories

MS190050


Product is available

MS190050

Abmantelwerkzeug für Rundkabel 4-16mm Ø Rund-/Längsschnitt

Accessories

MS190052-1,0


Product is available

MS190052-1,0

Gerätezuleitung 3pol Stecker mit offenem Ende, 3 x 1,5mm² schwarz 1,0m

Accessories

MS190054


Product is available

MS190054

Rundkabeladapter 2x3pol Buchse für Kabel 1,5-2,5mm² Massivdraht
