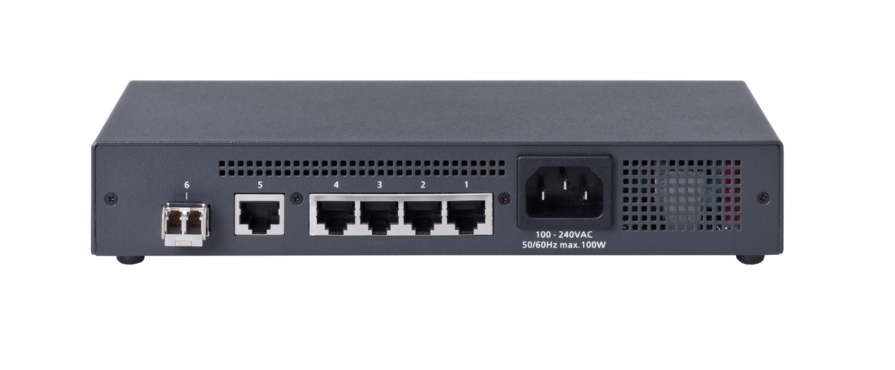

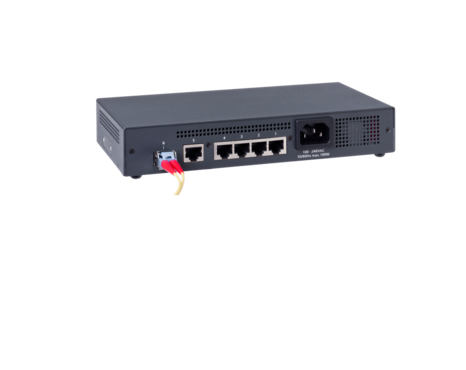

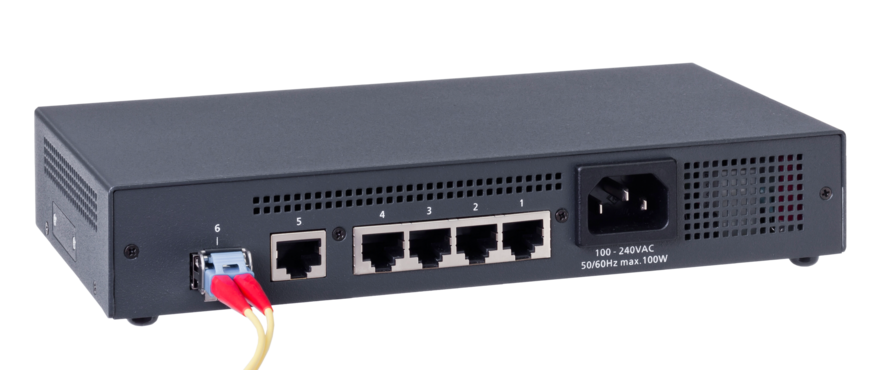

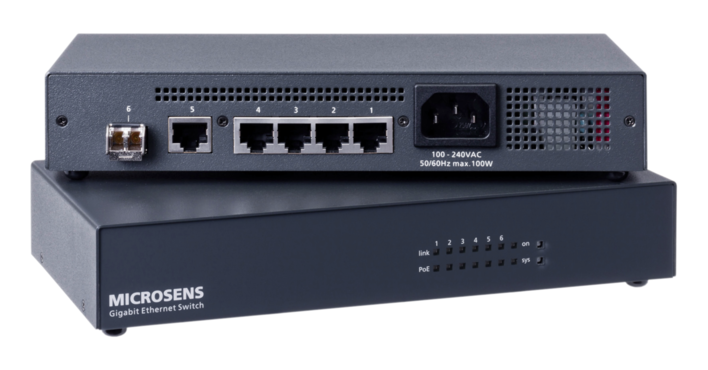

6-Port GbE Desktop Switch G6 PoE+
- Compact, fanless GbE Desktop Switch PoE/PoE+ with integrated power supply
- 6-Port Full Gigabit Ethernet Switch
- High security through SSH, HTTPS, SNMPv3, Port Security 802.1x and full RADIUS NAC compatibility
- Power-over-Ethernet (PoE+) with max. 30W on 4x RJ-45 ports, integrated 230V power supply
- Intuitive management via Web, SSH, SNMP interface and MICROSENS NMP software
- Fiber SFP uplink with Dual-Speed 100/1000Base-X
The Desktop Switch G6 is the "standalone" version of the MICROSENS Micro Switch. It can be used as an alternative to the installation device within the Fiber to the Office (FTTO) concept. In this case as a decentralized workstation component to convert or switch the optical signal coming directly from the central building distributor from fiber optic to the typical user interface RJ-45.
The FO uplink is designed as an SFP slot (Dual Speed 100/1000Base-X). Five other 10/100/1000Base-T user ports are also available, 4 of which function as PSE (Powered Source Equipment) with PoE+ (according to IEEE 802.3at, downward compatible IEEE 802.3af). These supply power to PoE-compliant end devices (VoIP telephones, WLAN access points, IP cameras, thin clients, etc.) within the office environment directly and without a separate power supply.
The desktop switch G6 is characterized by its compactness. The power supply for the switch and the PoE+ devices is integrated in the switch. An external power supply is not required.
The concealed mini-USB interface serves as a console port for direct management access to the high-performance Layer2 management. It is based on a future-proof Linux operating system. The very wide range of features (especially in the area of IT security, IEEE 802.1x, VLANs IEEE 802.1q etc.) is shown in the firmware feature list (see download area), which is always extended by the implemented features after the firmware has been upgraded.
Access to the switch is password-protected via all common management interfaces such as browser-based (via web browser https/http), SSH, SNMPv3. MICROSENS' NMP software optimizes access to a large number of desktop switches within an FTTO network using group and master configuration.
The microSD card slot can optionally be used as a backup system for firmware and configuration. The complete device status can be transferred by exchanging the card. The memory card complies with the industry standard. A fault-tolerant journaling file system is used, which can be encrypted using the security option.
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453502PM-G6+
Product is available
MS453502PM-G6+
6-Port GbE Desktop Switch G6 PoE+ 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE+, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453504PM-G6+
Product is available
MS453504PM-G6+
6-Port GbE Desktop Switch G6 PoE+ 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE+, 230VAC, 100VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS140815
Product is available
MS140815
Magnethalter für Desktop-Switches beidseitig magnetisch 80x60x1mm
MS140816
Product is available
MS140816
Magnethalter für Desktop-Switches beidseitig magnetisch 160x60x1mm
MS45350XPM-G6+MW
Product is available
MS45350XPM-G6+MW
Montageadaptersatz 19" für Desktop Switch G6
MS140894X-4G
Product is available
MS140894X-4G
Micro Storage Media Card 4GB für MICROSENS G6 Micro Switches, -25..+85°C
MS190001VS
Product is available
MS190001VS
Gerätezuleitung mit Kaltgerätedose 3 x 0,75mm schwarz 2m lang, verriegelbar
MS190009
Product is available
MS190009
Gerätezuleitung CH mit C13 Kaltgerätebuchse H03VV-F3G 0.75 mm² schwarz 1.8m
MS190410-01,5
Product is available
MS190410-01,5
Konsolenkabel für G6 Micro Switch mit RS-232 Port (mini USB), auf SUBD9 weiblich, Länge 1,5m
MS453080M
Product reached his Life-Time
MS453080M
6 Port Desktop Switch 5x10/100TX 1x100FX Multimode 1310nm SC,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, inklus ive externes Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-48G6+
Product is available
MS453501PM-48G6+
6-Port GbE Mini Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, inkl. PS 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 54VDC, 1x Konsole, 1x microSD-Slot
MS453080PM
Product reached his Life-Time
MS453080PM
5 Port Desktop PoE Switch 5x10/100TX SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, Power-over-Ethernet auf 4 TX-Ports nach IEEE802.3af , 230VAC interne Strom versorgung
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453081M
Product reached his Life-Time
MS453081M
6 Port Desktop Switch 5x10/100TX 1x100FX Multimode 1310nm ST,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, inklus ive externes Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453081PM
Product reached his Life-Time
MS453081PM
6 Port Desktop PoE Switch 5x10/100TX 1x100FX Multimode 1310nm ST,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, Power- over-Ethernet auf 4 TX-Ports nach IEEE802.3af , i nternes 230VAC Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-48G6+
Product is available
MS453501PM-48G6+
6-Port GbE Mini Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, inkl. PS 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 54VDC, 1x Konsole, 1x microSD-Slot
MS453082M
Product reached his Life-Time
MS453082M
6 Port Desktop Switch 5x10/100TX 1x100FX Multimode 1310nm SC,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, inklus ive externes Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-48G6+
Product is available
MS453501PM-48G6+
6-Port GbE Mini Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, inkl. PS 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 54VDC, 1x Konsole, 1x microSD-Slot
MS453082PM
Product reached his Life-Time
MS453082PM
6 Port Desktop PoE Switch 5x10/100TX 1x100FX Multimode 1310nm SC,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, Power- over-Ethernet auf 4 TX-Ports nach IEEE802.3af , i nternes 230VAC Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100190DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453083M
Product reached his Life-Time
MS453083M
6 Port Desktop Switch 5x10/100TX 15km 1x100FX SingleMode1310nm SC,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, inklus ive externes Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100191DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453083PM
Product reached his Life-Time
MS453083PM
6 Port Desktop PoESwitch 5x10/100TX,15km 1x100FX SingleMode1310nm SC,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, Power- over-Ethernet auf 4 TX-Ports nach IEEE802.3af , i nternes 230VAC Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100191DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453084M
Product reached his Life-Time
MS453084M
6 Port Desktop Switch 5x10/100TX 15km 1x100FX SingleMode1310nm ST,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, inklus ive externes Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100191DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
MS453084PM
Product reached his Life-Time
MS453084PM
6 Port Desktop PoESwitch 5x10/100TX,15km 1x100FX SingleMode1310nm ST,SNMP/web/CLI Management, VLANs, Datenpriorisierung QoS, Power- over-Ethernet auf 4 TX-Ports nach IEEE802.3af , i nternes 230VAC Netzteil
EOL -> MS453501PM-48G6+ zzgl. MS100191DX
MS453501PM-G6+
Product is available
MS453501PM-G6+
6-Port GbE Desktop Switch G6 PoE 1x 100/1000X SFP-Slot, managed, 5x 10/100/1000T, 4x PoE, 230VAC, 65VA, microSD-Slot, RS-232 Port (mini USB)
5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
