6-Port GbE Micro Switch G6
MS440207M-G6+
MS440207M-G6+
MS440207M-G6+GT
MS440207M-G6+GT

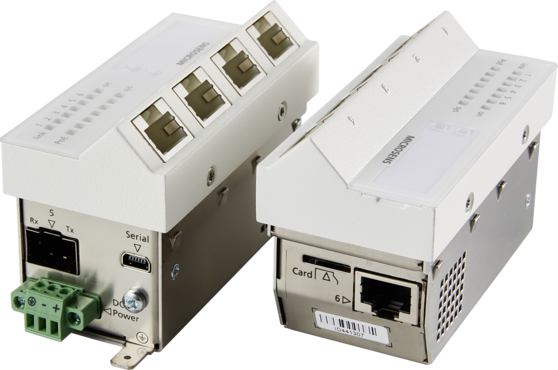

front and rear view
front and rear view
mounted in GT-Chassis
mounted in GT-Chassis
underfloor mounting sample
underfloor mounting sample
horizontal installation
horizontal installation
vertical installation
vertical installation

6-Port GbE Micro Switch G6

  • Smallest & most compact Gigabit Ethernet switch on the market! M45 design for tool-free installation in cable ducts, floor tanks etc.
  • 6-Port Full Gigabit Ethernet Switch
  • High security through SSH, HTTPS, SNMPv3, Port Security 802.1x and full RADIUS NAC compatibility
  • Internal power supply with 230VAC input
  • Intuitive management via Web, SSH, SNMP interface and MICROSENS NMP software
  • Fiber SFP uplink with Dual-Speed 100/1000Base-X, optionally as 2x fiber optic version or with integrated SC/ST fiber optics
Secure Download
Detail information
Description
Description

With the current 6th generation of Micro Switches (according to IEEE 802.3az Energy Efficient Ethernet) MICROSENS continues to use the unique device form of the installation switch, which has been available since 1995. Within the Fiber to the Office (FTTO) concept, the Micro Switch represents the decentralized workstation component. It converts or switches the optical signal coming directly from the central building distributor in the form of a fiber optic interface, to a typical RJ-45 user interface.



The fiber optic uplink, can optionally be equipped with fixed SC or ST optics in multimode or single mode or as SFP slot (Dual Speed 100/1000Base-X). Besides this, there is another port hidden within the installation (also referred to by MICROSENS as "downlink"). This downlink serves as an extension or hidden user port when the FTTO network is aligned in a star configuration in order to network further applications (WLAN access point in the double ceiling or similar) within the cabling infrastructure. In the case of the MS4402x7... (2x 100/1000Base-X SFP slots), double fiber optic version, the second optical interface can be used for FO-based topology expansion (e.g. bus or ring topology for redundancy purposes, see application examples within the FTTO).

The non-PoE Micro Switch version, the Micro Switch is supplied with power directly via the existing 230 VAC network. Within the installation, 4 TP ports 10/100/1000Base-T are always designed as user ports.

The hidden mini-USB interface serves as a console port for direct management access to the high-performance Layer2 management. This is based on a future-proof Linux operating system. The firmware feature list (see download area) shows the very wide range of features (especially in the area of IT security, IEEE 802.1x, VLANs IEEE 802.1q etc.), which is always extended by the implemented features after the firmware has been upgraded.

Access to the switch is password-protected via all common management interfaces such as browser-based (via web browser https/http), SSH, SNMPv3. MICROSENS NMP software optimizes access to a large number of micro switches within an FTTO network using group and master configuration.

The microSD card slot can optionally be used as a backup system for firmware and configuration. The complete device status can be transferred by exchanging the card. The memory card complies with the industry standard. A fault-tolerant journaling file system is used, which can be encrypted using the security option.



Products
Products
Products

MS440200M-G6+


Product is available

MS440200M-G6+

6-Port GbE Micro Switch G6 1x 1000SX ST/MM, horizontal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x ST duplex MM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440201M-G6+


Product is available

MS440201M-G6+

6-Port GbE Micro Switch G6 1x 1000SX SC/MM, horizontal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x SC duplex MM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440202M-G6+


Product is available

MS440202M-G6+

6-Port GbE Micro Switch G6 1x 1000LX SC/SM, horizontal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x SC duplex SM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440203M-G6+


Product is available

MS440203M-G6+

6-Port GbE Micro Switch G6 1x 1000LX ST/SM, horizontal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x ST duplex SM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440207M-G6+


Product is available

MS440207M-G6+

6-Port GbE Micro Switch G6 2x 100/1000X SFP-Slots, horizontal, managed, 4x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (RJ-45)

4x RJ-45, 2x SFP Slots, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440209M-G6+


Product is available

MS440209M-G6+

6-Port GbE Micro Switch G6 1x 100/1000X SFP-Slot, horizontal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x SFP Slot, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440210M-G6+


Product is available

MS440210M-G6+

6-Port GbE Micro Switch G6 1x 1000SX ST/MM, vertikal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x ST duplex MM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440211M-G6+


Product is available

MS440211M-G6+

6-Port GbE Micro Switch G6 1x 1000SX SC/MM, vertikal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x SC duplex MM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot

Products

MS440212M-G6+


Product is available

MS440212M-G6+

6-Port GbE Micro Switch G6 1x 1000LX SC/SM, vertikal, managed, 5x 10/100/1000T, 230VAC, microSD-Slot, RS-232 Port (mini USB)

5x RJ-45, 1x SC duplex SM, 1x 3plg. 230VAC, 1x Konsole, 1x microSD-Slot
