Micro Switch Surface-mounted / table / furniture adaptation

  • Modular installation units for flexible combination with other connections
  • Various possibilities for mounting on and under the table, ranging from embedded in furniture up to wall mounting
  • Special solutions for medical, laboratory and table units (standard rail)
  • Desk channels for extensive installations
  • Concealed or disappearing installation
Detail information
Description
Description

In modern office environments with flexible room design, the classic installation systems of cable ducts or floor tanks are increasingly renounced. Installation solutions for workstations that cannot be optimally connected to installation ducts or floor tanks are can be integrated in external housing or table inlet adapters.



Universal application possibilities include e.g:
- Wall/surface mounting
- Mounted directly on the desk
- Mounting in the desk / piece of furniture
- Mounting under the table top
- intermediate floor installation

Surface-mounted versions GT housing / SLIM housing:
The housing solutions from MICROSENS (GT housing, SLIM housing) are designed for M45. Depending on the version, both the front profile and the side accesses as well as the length for individual constellations and adaptations can be flexibly adapted to the requirements. Both horizontal and vertical mounting can be selected with the appropriate mounting accessories.

On request, customer-specific configurations can be set up by MICROSENS and supplied ready to use. MICROSENS can also support you directly with the optimal equipment for the desired solution.

Free M45 module slots are required for the installation of a PoE+-capable power supply unit in the housing.

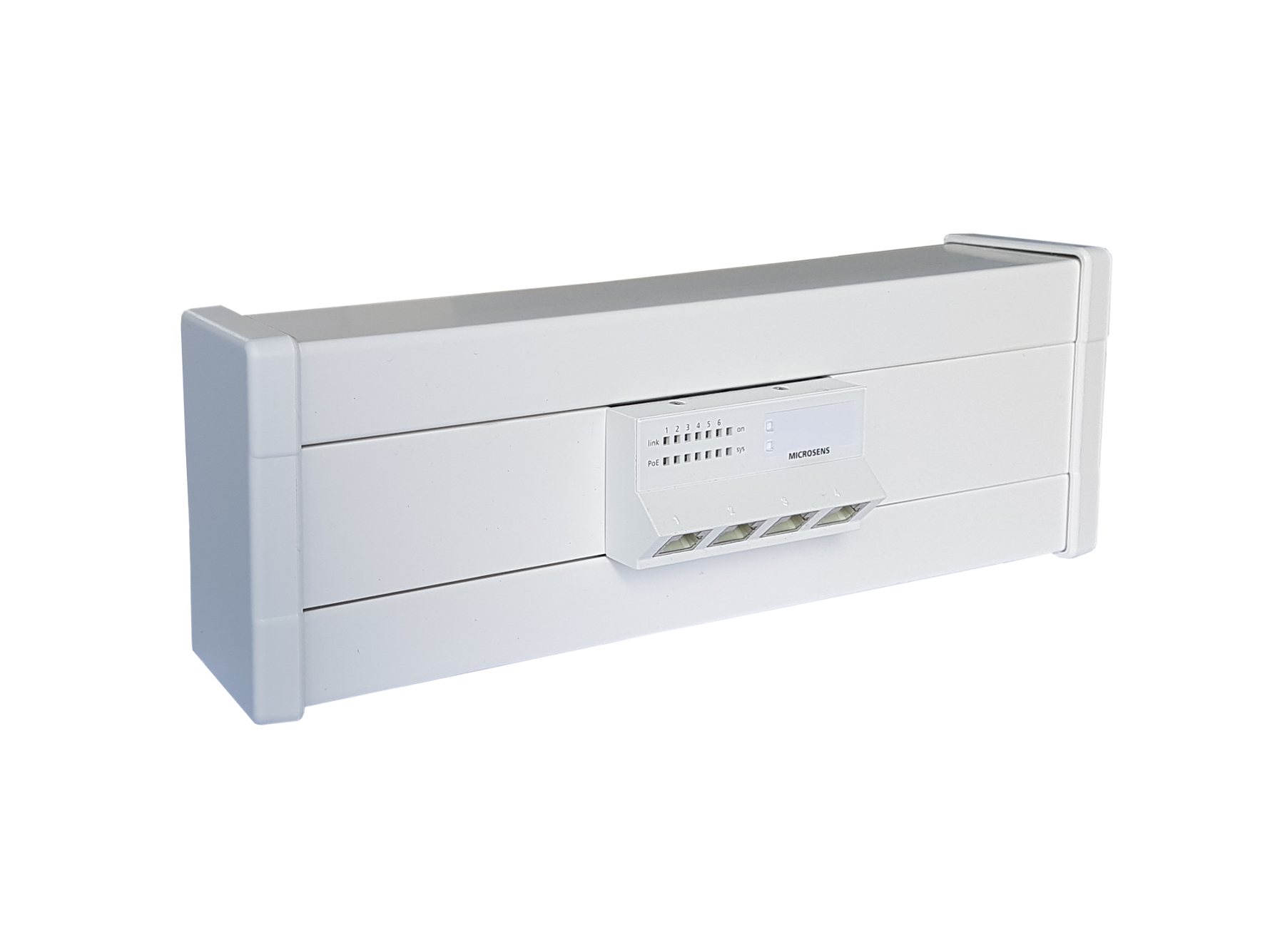

RAPID housing:
The right set for easy installation of a MICROSENS Micro Switch. This ideal version in design, as well as in installation, offers enough storage space to cover the necessary wiring perfectly.

 This category offers versatile solutions for users who do not have device installation ducts or floor tanks or who do not want to install them at a later date. Here you will find a practical option that offers easy installation and an attractive design for numerous areas of application such as office desks, laboratories, cabinets or counters.

Furniture installation / desk column:
This installation kit is sunk into an adapted opening in the piece of furniture and is easy to assemble. A space-saving and stylish solution for mounting a Micro Switch close to the user. MICROSENS offers a version with cable outlets at the rear and a version with cable outlets at the side to allow sufficient space for cable entry depending on the inlet depth. An additional set is offered for mounting.

Possible examples for installation situations: Inlet in table, cabinet or counter.

The desk column is ideal for meeting rooms, the entire unit including active technology is sunk into the table. MICROSENS M45 components fit perfectly into the housing, which also offers space for other module components such as sockets. The cover is available in the desired colour graphite grey or aluminium.



Products
Products
Products

MS140091


Product is available

MS140091

RAPID45-Aufputzmontageset reinweiß für MicroSwitch vormontiert inkl. Endstücke und Oberteil, RAL 9010

Products

MS140091P


Product is available

MS140091P

Wall mounting set M45 for Micro Switch PoE+, incl. Micro Power Supply 230 VAC / 54 VDC, 70W premounted, Wall box + blind cover, RAL9010

Products

MS140131GT-n


Product is available

MS140131GT-n

M45 GT-Gehäuse n-fach inkl. 2x Blindmodul GT

Products

MS140131SL-n


Product is available

MS140131SL-n

M45 SLIM-Gehäuse n-fach inkl. 2x Blindmodul RW

Products

MS140122-GT-5


Product is available

MS140122-GT-5

M45 Tischsäule GT versenkbar 5-fach inkl. 2x ½ Blindmodul GT und 1x M45 Blindmodul GT, RAL7021

Products

MS140122-GT-6


Product is available

MS140122-GT-6

M45 Tischsäule GT versenkbar 6-fach inkl. 2x ½ Blindmodul GT und 1x M45 Blindmodul GT, RAL7021

Products

MS140128R-5


Product is available

MS140128R-5

Tischeinlassgehäuse 5x M45 Abdeckung polierter verchromter Stahl, Kabelabgänge hinten, Tischplatte mit 10..24mm Stärke

Products

MS140128S-5


Product is available

MS140128S-5

Tischeinlassgehäuse 5x M45 Abdeckung polierter verchromter Stahl, Kabelabgänge seitlich, Tischplatte mit 10..24mm Stärke

Accessories
Accessories

MS140033


Product is available

MS140033

M45 Blindmodul RW (RAL9010)
