Micro Switch Floor tank adaptation

  • Accessories for the brands Hager (Electraplan), OBO Betterman (Ackermann) and PUK
  • Adapter for older floor tank generations
  • Overview of compatibility and adapters
Detail information
Description
Description

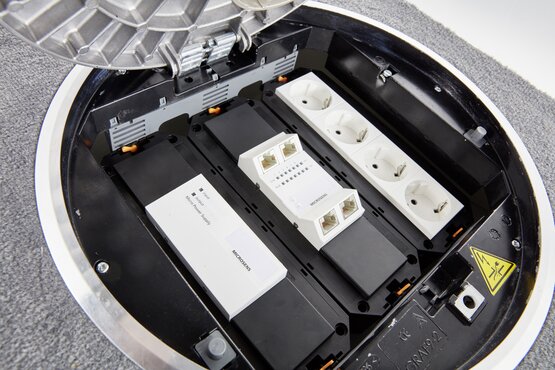

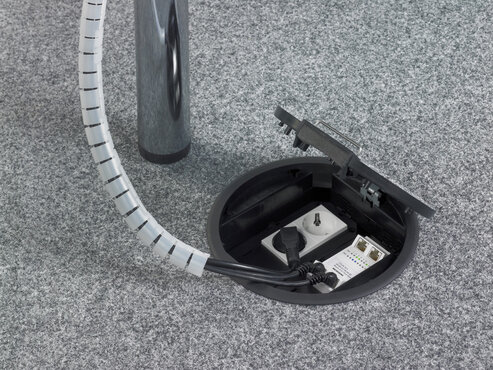

With the introduction of underfloor installation in modern office architecture, sockets, passive data ports and active installation components can be installed easily, space-savingly and discreet.



MICROSENS offers for example

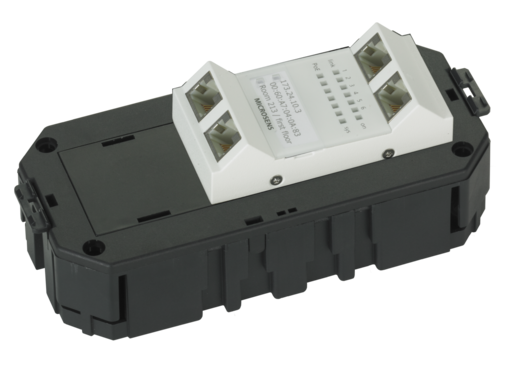

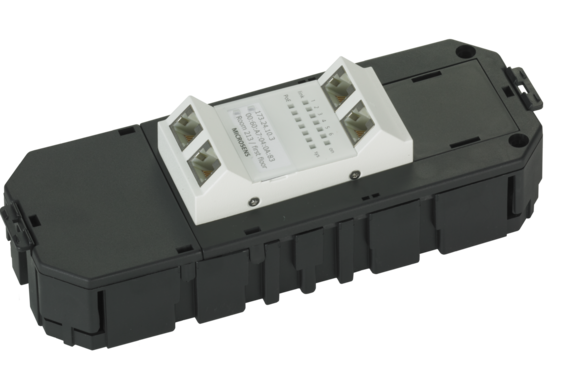

- sets for the installation of MICROSENS switches with module size M45 in OBO BETTERMANN underfloor systems (formerly Ackermann) sets. Which of the sets is required depends on the size of the underfloor tank

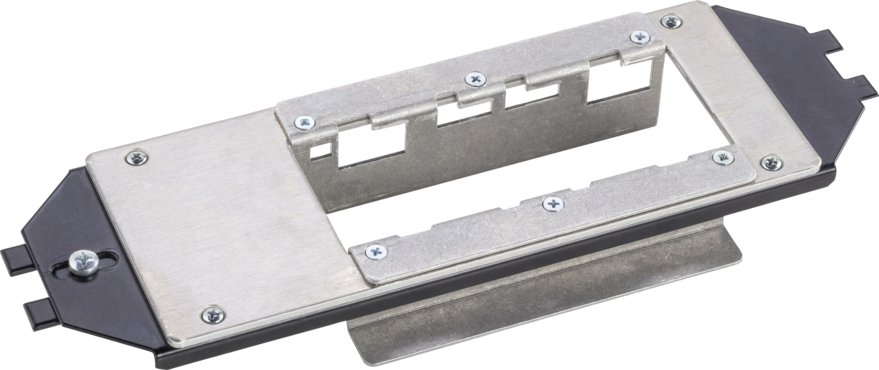

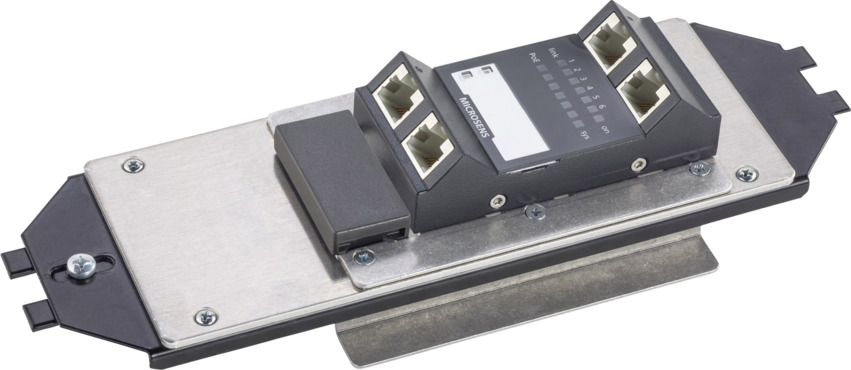

- sets for older underfloor systems from OBO Bettermann (type GEE 7/10-5 R, GEE 9/12-5, compatible with device cases type GTK 9/12), a special adapter is available which corresponds exactly to the installation dimensions of the GTK 9/12 and also has an M45-2 snap-in track. The adapter is made of galvanized sheet steel and has a locking plate to secure the micro switch.

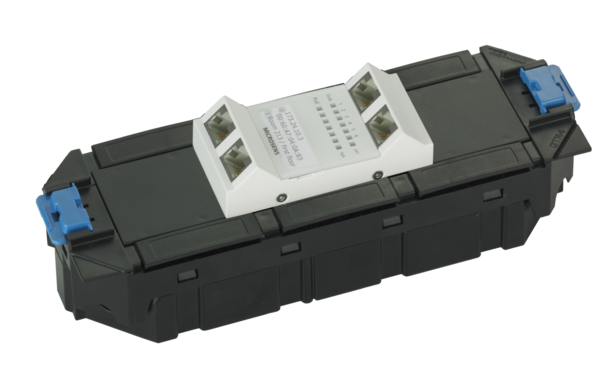

- sets for electraplan (Hager) supply units Mounting kits. The box included in the set has a 45 mm snap-in rail into which all MICROSENS installation components fit without additional mounting tools.

- sets for older supply units ("hinged covers") from electraplan (Hager), which were offered before 2008. These sets contain a suitable device box for these models

- mounting kit for PUK underfloor systems. The box included in the set has a 45 mm locking rail into which all M45 installation components fit without additional tools.

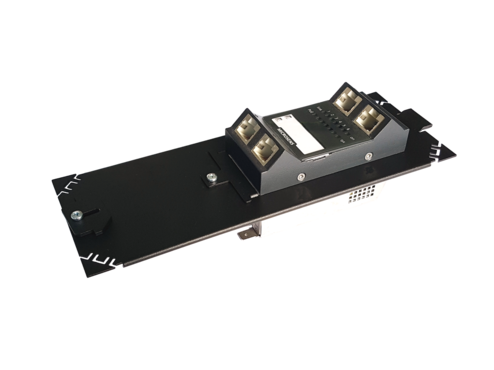

- a special installation kit for PUK underfloor systems for better dissipation of waste heat. The installation kit has a 45 mm snap-in rail into which all M45 installation components fit without additional tools. The set contains a metal mounting bracket and a M45 dummy module.

In addition to the MICROSENS installation components in 45x45 dimensions (M45), there are further adaptation options for the PoE+ installation power supply (MS700710).

The MICROSENS document "Mounting Sets", which is available in the download area, provides a complete overview.



Products
Products
Products

MS140021-45


Product is available

MS140021-45

Einbausatz für electraplan Bodentank bestehend aus Gerätedose, Rastschiene, 2x M45 Blindmodul UF

Products

MS140021-AB


Product is available

MS140021-AB

BT-Einbausatz 45x45-System 4fach Electra plan Abdeckung und Blech

Products

MS140026


Product is available

MS140026

Einbausatz Unterflur Ackermann GB2 inkl. Becher bestehend aus Geräteträger, Abdeckung, M45 Blindmodul UF

Products

MS140027


Product is available

MS140027

Einbausatz Unterflur Ackermann GB3 inkl. Becher bestehend aus Geräteträger, Abdeckung, M45 Blindmodul UF, Stirnseite gefräst

Products

MS140027-GB3


Product is available

MS140027-GB3

Einbausatz Unterflur OBO Bettermann GTK 9/12, bestehend aus Adapterblech M45-2 inkl. Verriegelungsplatte

Products

MS140121


Product is available

MS140121

Stahlblech Einbausatz für PUK zweiteilig bestehend aus Geräteträger und ½ M45 Blindmodul RW, RAL9010

Products

MS140121-GT


Product is available

MS140121-GT

Stahlblech Einbausatz für PUK zweiteilig bestehend aus Geräteträger und ½ M45 Blindmodul GT, RAL7021

Products

MS140121-KU


Product is available

MS140121-KU

Einbausatz für PUK dreiteilig bestehend aus Gerätedose und 2x M45 Blindmodul UF

Accessories
Accessories

MS140021


Product is available

MS140021

BT-Einbausatz 45x45-System 4fach Electra plan mit Becher BG3+Montageblech+Kabel
