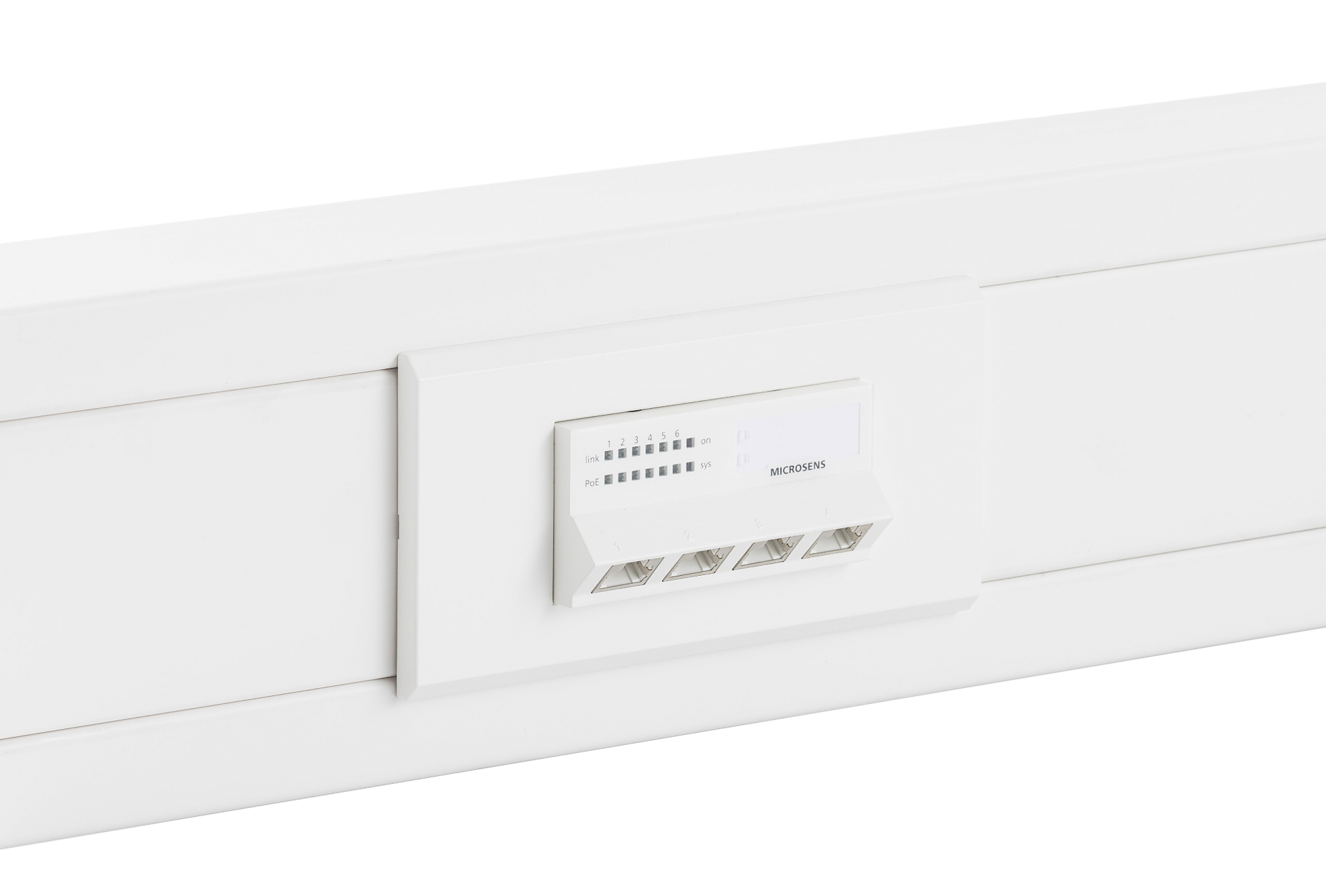

MS140029 mounted

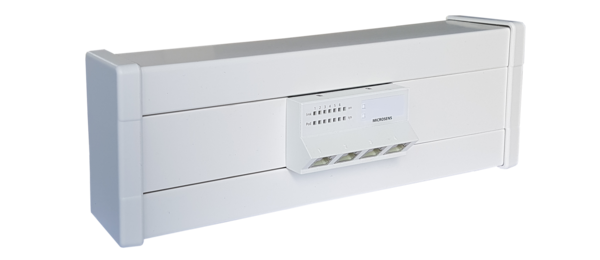

Micro Switch parapet trunking adaptation

Micro Switch parapet trunking adaptation
MS140029 mounted
MS140029 mounted
MS140040F2
MS140040F2
MS140029
MS140029
MS140047F3-ND mounted
MS140047F3-ND mounted
MS140069 mounted
MS140069 mounted
MS140040BR2
MS140040BR2
MS140075-10F
MS140075-10F
MS140040BR2 mounted
MS140040BR2 mounted

Micro Switch parapet trunking adaptation

Detail information
Description
Description

MICROSENS offers a wide range of mounting adapters for installation in trunks whose nominal dimension of the installation track is greater than 45 mm.



MICROSENS offers:

- Mounting adapters and installation kits for ducts with internal anchor rail located on the rear wall. Eitherin the form of an anchor rail with C profile, 35 mm combination rail or DIN rail.

- Mounting adapters for front locking device installation ducts made of steel from selected manufacturers such as Hager (tehalit), Kleinhuis, Niedax etc. The set replaces the device socket and offers a lot of space for the connection of power supply and network connection due to the open construction.

- A standard adapter for the universal mounting of MICROSENS installation components in commercially available channels with existing E2 device sockets. The two-piece set consists of a mounting adapter with M45 track, here a Micro Switch can be used directly without additional tools. Compatible E2 device sockets such as Legrand, Bticino or OBO-Bettermann are not included in the set.

As an option, a locking bracket can be inserted into the adapter to secure the micro switch.

In addition to the MICROSENS installation components in 45x45 dimensions (M45), there are further adapter options for the PoE+ installation power supply (MS700710).

The MICROSENS document "Mounting Sets", which is available in the download area, provides a complete overview.



Products
Products
Products

MS140029


Product is available

MS140029

M45 Einbausatz universal für E2-Gerätedose bestehend aus Montageadapter und Abdeckrahmen, RAL9010

Products

MS140029-GT


Product is available

MS140029-GT

M45 Einbausatz GT universal für E2-Gerätedose bestehend aus Montageadapter und Abdeckrahmen, RAL7021

Products

MS140035


Product is available

MS140035

BK OBO-GEKK Einbausatz für 45x45 System Geräteträger, Rahmen 2-fach RW

Products

MS140038-RP80


Product is available

MS140038-RP80

BK Rapid 80 Einbausatz für 45x45 System bestehend aus 3fach-Geräteträger und 2-fach Rahmen

Products

MS140039-RP80


Product is available

MS140039-RP80

BK Rapid 80 Einbausatz für 45x45 System 3-fach Geräteträger, 3erRahmen, Blindplatte

Products

MS140040BR2


Product is available

MS140040BR2

M45 Einbausatz für Ankerschiene mit C-Profil bestehend aus Abdeckrahmen, Montageadapter, 2x Geräteträger, vormontiert, RAL9010

Products

MS140040BR2-GT


Product is available

MS140040BR2-GT

45x45 Einbauset univ BRS rastend Geräteträger Adapterblech,Abdeckrahmen 2-fach,Farbe graphitgrau

Products

MS140040F2


Product is available

MS140040F2

M45 Einbausatz für frontrastende BRS-Kanäle bestehend aus Geräteträger, Abdeckrahmen 3-fach, M45 Blindmodul, RAL9010

Products

MS140040F2-GT


Product is available

MS140040F2-GT

45x45 Einbauset Hager/Tehalit BRS frontrastend Geräteträger,Abdeckung,Blindabdeckung graphitgrau
