Industrial Entry Line PoE-Injector

Industrial Entry Line PoE-Injector
MS656030
MS656030
MS657031X
MS657031X

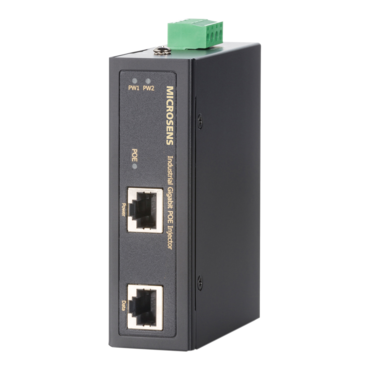

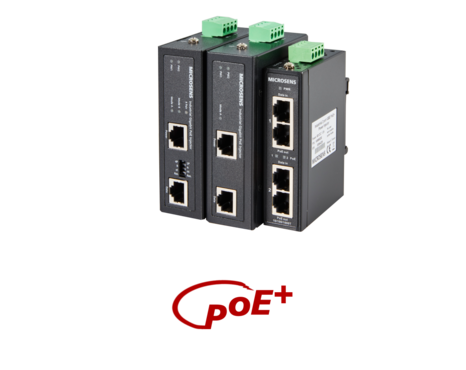

Industrial Entry Line PoE-Injector

  • Cost-effective plug and play Gigabit and PoE+ performance for industrial environments with DIN rail adapter and extended operating temperature range -40°..+75°C

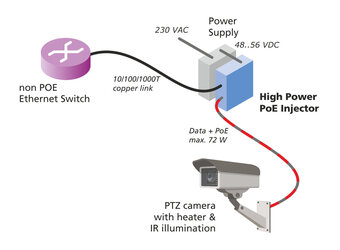

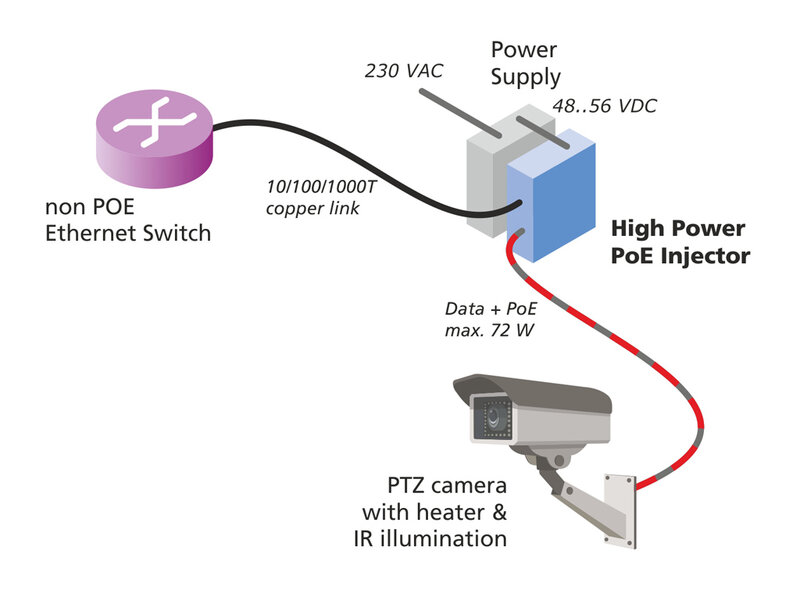

  • TP port with PoE+ (802.3at), version with HI-PoE (60W) and PoH (95W) available

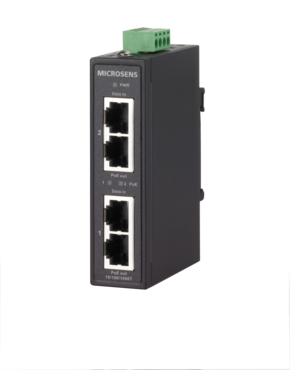

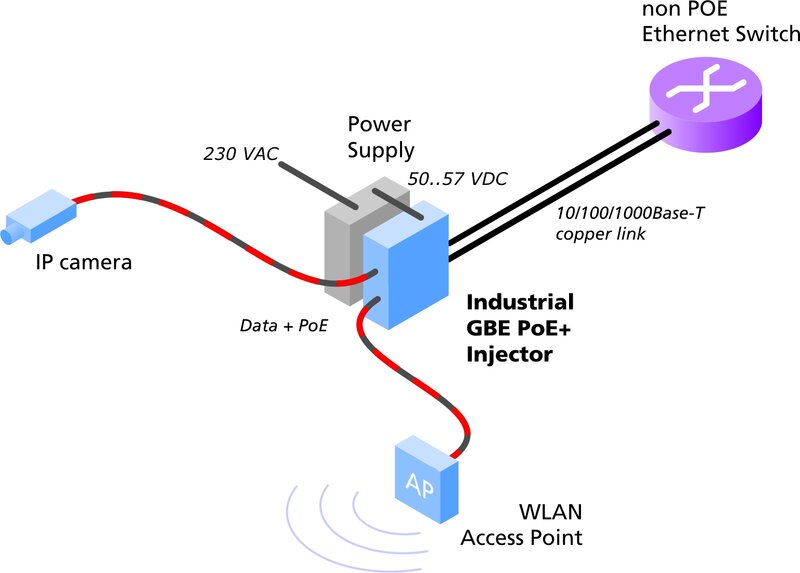

  • Dual PoE+ injector (MS656030) available (double injector)
  • 48..56 VDC power supply connection, redundant design, 24 VDC version available (MS657032X-24)
  • Potential-free relay contact
  • Robust metal housing with IP-30 protection class
Detail information
Description
Description

The Entry-Line series stands for economical and powerful Plug and Play Industrial Ethernet solutions. It offers a wide range of devices with diverse features. The Entry Line Bridges product series consists of the following components with different features:

- Gigabit Industrial Bridge (1x 10/100/1000Base-T, 1x 100/1000Base-X SFP slot)

- Fast Ethernet Industrial Micro Bridge (1x 10/100Base-TX, 1x 100Base-FX SFP slot)

- Fast Ethernet Industrial Bridge (1x 10/100Base-TX, 1x 100Base-FX Multimode SC)

- Fast Ethernet Industrial Bridge (1x 10/100Base-TX, 1x 100Base-FX Single Mode SC)

Bridges, also known as media converters, are used in networks to convert communication data between copper and fibre optic media.

Media converters are also being used more and more in control cabinets and outdoor applications. The modern form of the media converter is the bridge, whose copper port automatically selects between the different speeds by autonegotiation. Therefore the copper ports here are also designed as 10/100Base-TX or 10/100/1000Base-T.

In addition to the typical "DIN-Rail" design, MICROSENS also offers a Micro Bridge in this series. This can be integrated into the narrowest areas (e.g. in camera boxes etc.) due to its extremely compact design. This version also differs in the power supply, besides the typical entry line power supply in 24 VDC, the Micro Bridge can also be supplied with 24 VAC.

The robust metal housing with DIN-Rail adapter (as well as alternative wall mounting adapters included) and the extended operating temperature range from -40° to +75°C are further features of the Entry Line series.

Products
Products
Products

MS657031X


Product is available

MS657031X

GbE Industrial Entry Line PoE-Injektor PoE+ 1x 10/100/1000T, 1x 10/100/1000T PoE+, DIN-Rail, -40..+75°C, 48..56VDC

2x RJ-45, 2x 2plg. 48..56VDC

Products

MS657032X-24


Product is available

MS657032X-24

GbE Industrial Entry Line PoE-Injektor HI-PoE 24V 1x 10/100/1000T, 1x 10/100/1000T PoE 72W, DIN-Rail, -40..+75°C, 18..56VDC

2x RJ-45, 2x 2plg. 18..56VDC

Products

MS657032X


Product is available

MS657032X

GbE Industrial Entry Line PoE-Injektor HI-PoE 1x 10/100/1000T, 1x 10/100/1000T PoE 72W, DIN-Rail, -40..+75°C, 48..56VDC

2x RJ-45, 2x 2plg. 48..56VDC

Products

MS657034X


Product is available

MS657034X

GbE Industrial Entry Line PoE-Injektor U-PoE 1x 10/100/1000T, 1x 10/100/1000T PoE 95W HDBase-T, DIN-Rail, -40..+75°C, 48..56VDC

2x RJ-45, 2x 2plg. 48..56VDC

Products

MS656030


Product is available

MS656030

2-Fach GbE Industrial Entry Line PoE-Injektor PoE+ 2x 10/100/1000T, 2x 10/100/1000T PoE+, DIN-Rail, -20..+70 °C, 50..56VDC

4x RJ-45, 2x 2plg. 50..56VDC

End of Life / Out of product range
End of Life / Out of product range

MS655033X

show alternative

Product reached his Life-Time

MS655033X

End of Life / Out of product range

Industrial GBE PoE Power Injector 802.3at up to 30W 2x RJ45 Data In/PoEOut

EOL -> MS657032X-24

hide alternative

MS657032X-24

hide alternative

Product is available

MS657032X-24

hide alternative

GbE Industrial Entry Line PoE-Injektor HI-PoE 24V 1x 10/100/1000T, 1x 10/100/1000T PoE 72W, DIN-Rail, -40..+75°C, 18..56VDC

2x RJ-45, 2x 2plg. 18..56VDC

End of Life / Out of product range

MS657033X

show alternative

Product reached his Life-Time

MS657033X

End of Life / Out of product range

GbE Industrial Entry Line PoE-Injektor U-PoE 1x 10/100/1000T, 1x 10/100/1000T PoE 90W, DIN-Rail, -40..+75°C, 48..56VDC

NIL -> MS657034X

hide alternative

MS657034X

hide alternative

Product is available

MS657034X

hide alternative

GbE Industrial Entry Line PoE-Injektor U-PoE 1x 10/100/1000T, 1x 10/100/1000T PoE 95W HDBase-T, DIN-Rail, -40..+75°C, 48..56VDC

2x RJ-45, 2x 2plg. 48..56VDC
