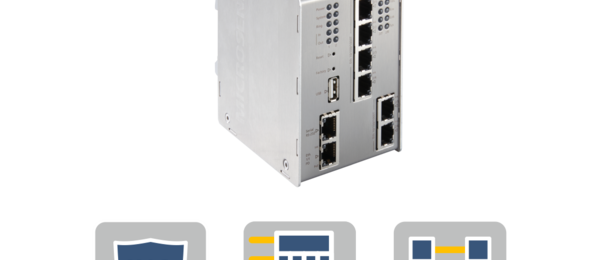

10G Expansion Module for Profi Line Modular Industrial Switches

10G Expansion Module for Profi Line Modular Industrial Switches

MACsec (IEEE 802.1AE) - GCM-AES encrypted 10G LAN communication
10G uplinks (IEEE 802.3ae) - 2 x 1/10G uplink ports in SFP/SFP+ version
Network ring redundancy - Feature set for fail-safe redundancy topologies
IT security - Feature set for high level of IT security
Extended operating temperature range - Ambient temperature range -40°..+75°C
Industrial Fanless design - Easy to maintain, no noise emission for use in the workstation area

Download

Datenblatt

Secure Download

Firmware G6 v10.8.3

Firmware G6 v10.8.3a

Detail information

Description

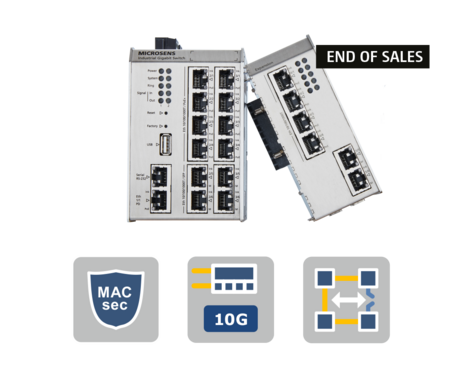

The success factors of the well-established MICROSENS Profi Line Modular Switches are the modularity and expansion options. A new module from MICROSENS now complements the PLM series with features that lift the PLM into new heights in terms of performance:

- 1/10G-Base-X SFP+ uplink ports (according to IEEE 802.3ae)

- MACsec function (according to IEEE 802.1AE)

- Upgraded by additional 6x 10/100/1000Base-T LAN ports

The PLM switch can now be enhanced by the 10G module MACsec in order to improve performance and security. The design and hardware is based on the Profi Line G6 series, the 10G expansion module offers the same features as the Profi Line series.

- Extended operating temperature range -40..+75°C

- Compact stainless steel housing with integrated DIN rail adapter

- Fanless

- Profi Line Generation 6 functionalities

The uplink ports can be operated with encryption to ensure secure communication between the devices within the LAN. Security plays an increasingly important role, especially when it comes to communication via fiber as these communication paths are often routed in or through public areas. The standardized MACsec function (media access control security) according to the IEEE 802.1AE standard, which has been well-proven in Layer2, ensures this.

The PLX Switch is the standalone version of the 10G expansion module of the PLM switch.
