Módulo de expansión 10G para conmutadores industriales modulares Profi Line

Módulo de expansión 10G para conmutadores industriales modulares Profi Line

Módulo de expansión 10G para conmutadores industriales modulares Profi Line

  • MACsec (IEEE 802.1AE) - Comunicación LAN 10G cifrada GCM-AES
  • Enlaces ascendentes 10G (IEEE 802.3ae) - 2 puertos de enlace ascendente 1/10G en versión SFP/SFP+
  • Redundancia en anillo de red: conjunto de funciones para topologías de redundancia a prueba de fallos
  • Seguridad IT: conjunto de funciones para un alto nivel de seguridad informática
  • Rango de temperatura de funcionamiento ampliado - Rango de temperatura ambiente -40°..+75°C
  • Diseño industrial sin ventilador - Fácil de mantener, sin emisión de ruidos para su uso en el área de trabajo
Download
Secure Download
Detail information
Description
Description

The success factors of the well-established MICROSENS Profi Line Modular Switches are the modularity and expansion options. A new module from MICROSENS now complements the PLM series with features that lift the PLM into new heights in terms of performance:

- 1/10G-Base-X SFP+ uplink ports (according to IEEE 802.3ae)

- MACsec function (according to IEEE 802.1AE)

- Upgraded by additional 6x 10/100/1000Base-T LAN ports

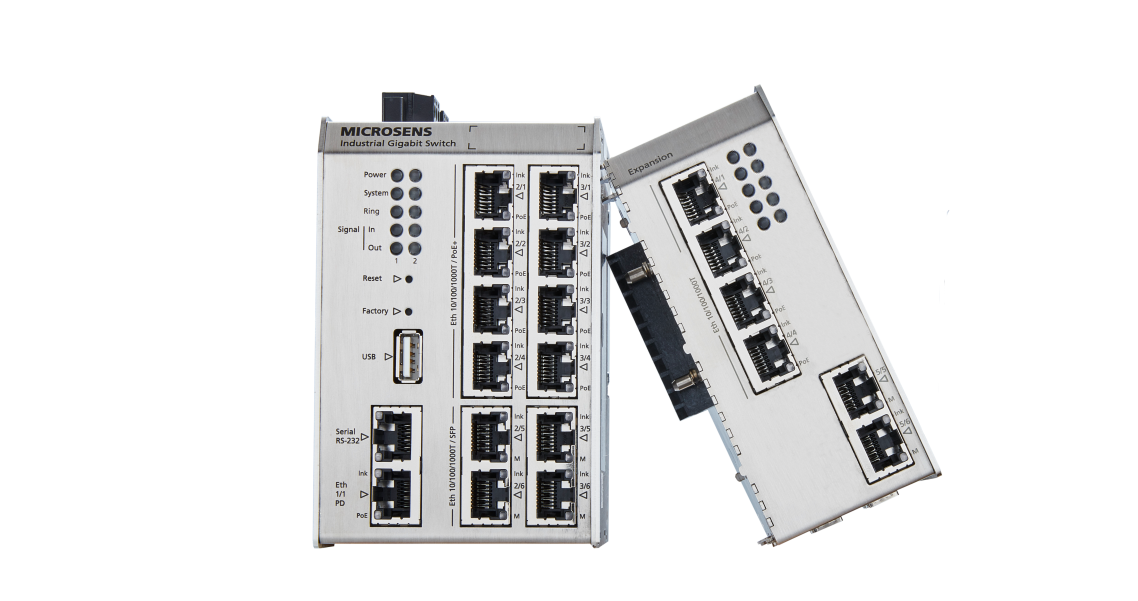

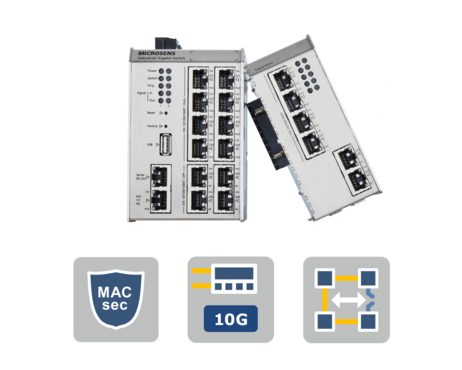

The PLM switch can now be enhanced by the 10G module MACsec in order to improve performance and security. The design and hardware is based on the Profi Line G6 series, the 10G expansion module offers the same features as the Profi Line series.

- Extended operating temperature range -40..+75°C

- Compact stainless steel housing with integrated DIN rail adapter

- Fanless

- Profi Line Generation 6 functionalities

The uplink ports can be operated with encryption to ensure secure communication between the devices within the LAN. Security plays an increasingly important role, especially when it comes to communication via fiber as these communication paths are often routed in or through public areas. The standardized MACsec function (media access control security) according to the IEEE 802.1AE standard, which has been well-proven in Layer2, ensures this.

The PLX Switch is the standalone version of the 10G expansion module of the PLM switch.

Products
Products
Products

MS652608M


Product is available

MS652608M

8-Port 10GbE Expansion Module MACsec, 2x 1/10GBase-X SFP+ Slots, 6x 10/100/1000T, for MS652119PM-V2 (upgrade to 21-Port 10G Macsec)

Products

MS100700DX


Product is available

MS100700DX

SFP+ 10G Transceiver Multimode 850nm, DDM, LC -40..+85°C

1x LC duplex MM

Products

MS100702DX


Product is available

MS100702DX

SFP+ 10G Transceiver LR SingleMode 1310nm, 10km, DDM, LC, -40..+85°C

1x LC duplex SM

Products

MS100702DXA


Product is available

MS100702DXA

SFP+ 10G WDM-Transceiver Bidi-LR, SingleMode TX1270nm / RX1330nm, 10km, DDM, LC simplex, -40..+85°C

Products

MS100702DXB


Product is available

MS100702DXB

SFP+ 10G WDM-Transceiver Bidi-LR, SingleMode TX1330nm / RX1270nm, 10km, DDM, LC simplex, -40..+85°C

Products

MS652119PM-V2


Product is available

MS652119PM-V2

13-Port GbE Industrial PLM Switch PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

13x RJ-45, 4x SFP Slots, 2x 3plg. 24..57VDC, 1x Konsole, 1x USB, 1x SD-Slot, 2x I/O, 1x Expansion Port
