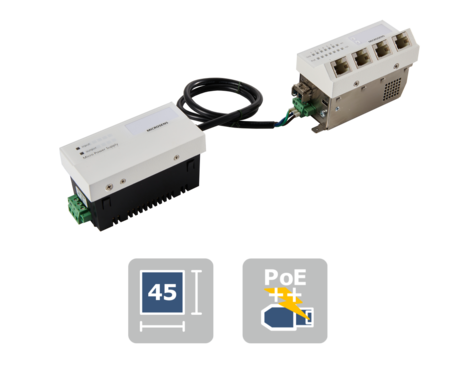

FTTO Micro Power Supply PoE+
MS700750
MS700750
underfloor mounted
underfloor mounted

FTTO Micro Power Supply PoE+

  • Micro Power Supply PoE+, Power Supply for Micro Switches in M45 Design
  • Optimized for use in cable ducts, floor tanks, etc.
  • Input voltage 90..264 VAC, output voltage 54 VDC, 70 W
  • Compatible with all PoE+, IEEE 802.3af/at MICROSENS Micro Switch models
  • Separate LED for availability indication of AC input and DC output voltage
  • Easy and fast installation, similar to the Micro Switch
Detail information
Description
Description

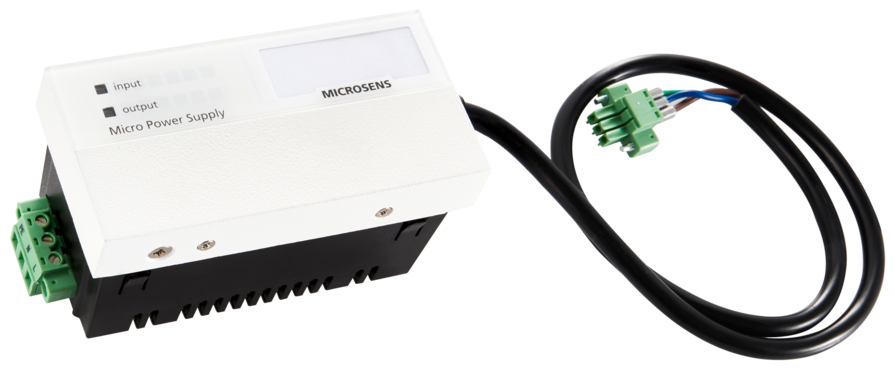

The MICROSENS Micro Power Supply was designed for fast snap-in mounting in cable ducts with M45 module dimensions. The main field of application is the DC power supply of devices with Power-over-Ethernet output (PoE+ according to IEEE 802.3af or IEEE 802.3at).



To simplify IT servicing, the Micro Power Supply has LEDs for monitoring primary AC input and secondary DC output voltage. This makes the availability of the power supply visible at a glance. Even during the recording of fault messages, possible faults associated with the terminal device power supply can be diagnosed easily.

The Micro Power Supply can be compared with the Micro Switch in terms of pure installation adaptation (grid dimension 90 x 45 mm). This eliminates the need for special installation adapters and existing adapter portfolio can be used.



Products
Products
Products

MS700750


Product is available

MS700750

Micro Power Supply PoE+, prim. 115..230VAC, Combicon-con., M45-montage, sec. 54VDC /1.2A, 0.5m

In: 3-plg., Out: 3-plg.

Products

MS700751


Product is available

MS700751

M45 Micro Power Supply PoE+/++ 150W, prim. 115..230VAC, Combicon-con., M45-montage, sec. 54VDC / 2.8A, 1m
