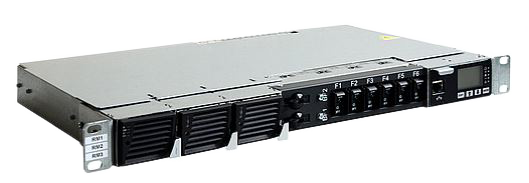

Central 19" PoE+ power supply

  • Extremely high power density & low space requirement
  • Versions from 850W up to 2550W available
  • High efficiency up to 95.2%.
  • DC output with temperature-controlled, powerful attributes
  • Wide operating temperature range -35 ... +60 °C
  • Easy installation, commissioning and expansion
  • Clear LCD Display
  •  Management controller included
Download
Detail information
Description
Description

Central 48/54 VDC power supplies offer many advantages compared to separate power supplies. Their use is above all more economical. With precise dimensioning or scaling, these systems are energy-efficient and are characterized by lower resource consumption. Central power supply systems can also be redundant and battery-buffered (UPS).



MICROSENS offers very compact solutions with a high power density that require very little space. With a wide operating temperature range from -35 to +60 °C, there is no need for complex room air conditioning. The power management of the MICROSENS Micro Switches optimally works together with the central power supply. The total load is continuously monitored and an overload of the power supply due to incorrect or defective end devices is prevented.

The 1 U chassis can accommodate up to three compact rectifier modules with 850 W each. A total power of up to 2,550 watts can be built up in a 1 U housing. The next expansion stage results in a 2 U solution with max. 5,100 W, which consists of up to six 850 W rectifier modules including carrier chassis.

The use of a central 54VDC power supply is particularly interesting for existing copper cabling with an optimum star configuration (e.g. the ISTY cabling of a previous telephone cabling from the pre-VoIP age) with sufficient dimensions.



Products
Products
Products

MS700871


Product is available

MS700871

19“ 1HE DC Stromversorgung, 850W, 54V (1x850W Gleichrichter-Modul), Ausgang: 42…58VDC SNMP Controller, LC-Display, für max. 3 x 850 W Gleichrichter SNMP fähig 2 Batterie-Eingänge LVD / PLD

Products

MS700872


Product is available

MS700872

19“ 1HE DC Stromversorgung, 1700W, 54V (2x850W Gleichrichter-Modul), Ausgang: 42…58VDC SNMP Controller, LC-Display, für max. 3 x 850 W Gleichrichter SNMP fähig 2 Batterie-Eingänge LVD / PLD

Products

MS700873


Product is available

MS700873

19“ 1HE DC Stromversorgung, 2550W, 54V (3x850W Gleichrichter-Modul), Ausgang: 42…58VDC SNMP Controller, LC-Display, für max. 3 x 850 W Gleichrichter SNMP fähig 2 Batterie-Eingänge LVD / PLD

Accessories
Accessories

MS700870-BAT8X9AH


Product is available

MS700870-BAT8X9AH

19” 3HE USV-Batterieerweiterung für MS70087x 8x 9Ah /48VDC, 19", 3HE,300mm inkl. Aussparung für Temperaturmessung, Symmetrie- / Sicherungsüberwachung

Accessories

MS700870-R850W


Product is available

MS700870-R850W

1U 850W Rectifier Module 48 VDC für 1 oder 2 HE Systemträger, -40C°…+70°C 80 … 300 Vrms 17,7A Leistungsdichte (30 W/in³) einphasig, «hot-pluggable», lüftergekühlt
