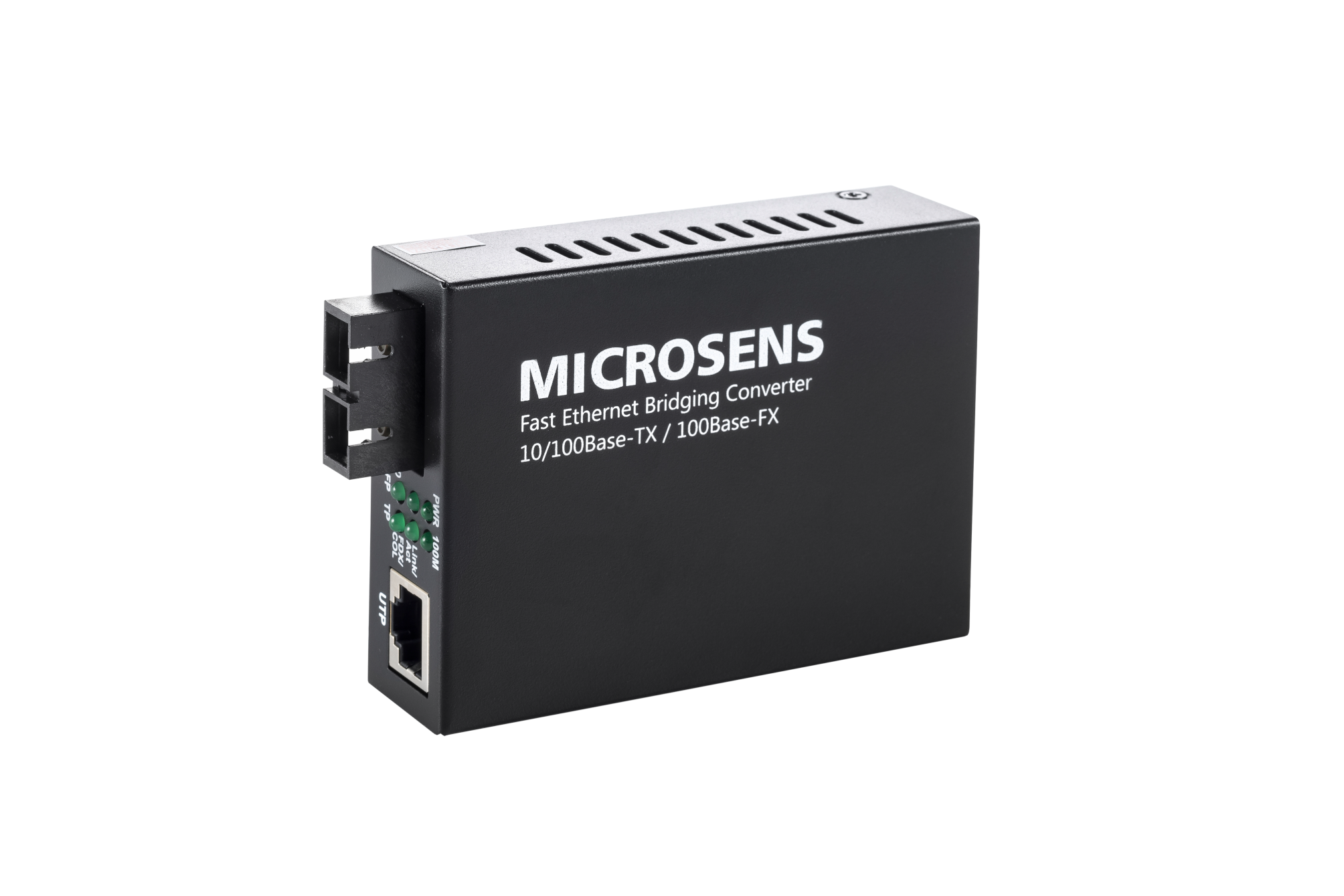

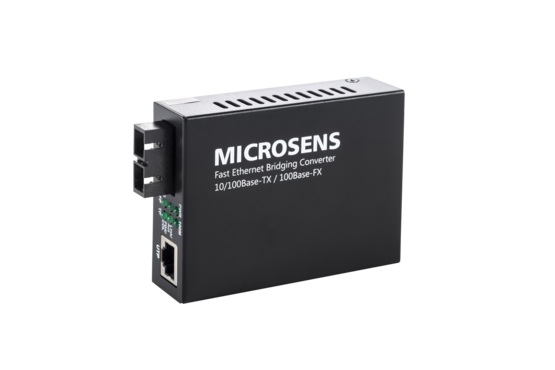

MS400160
MS400160

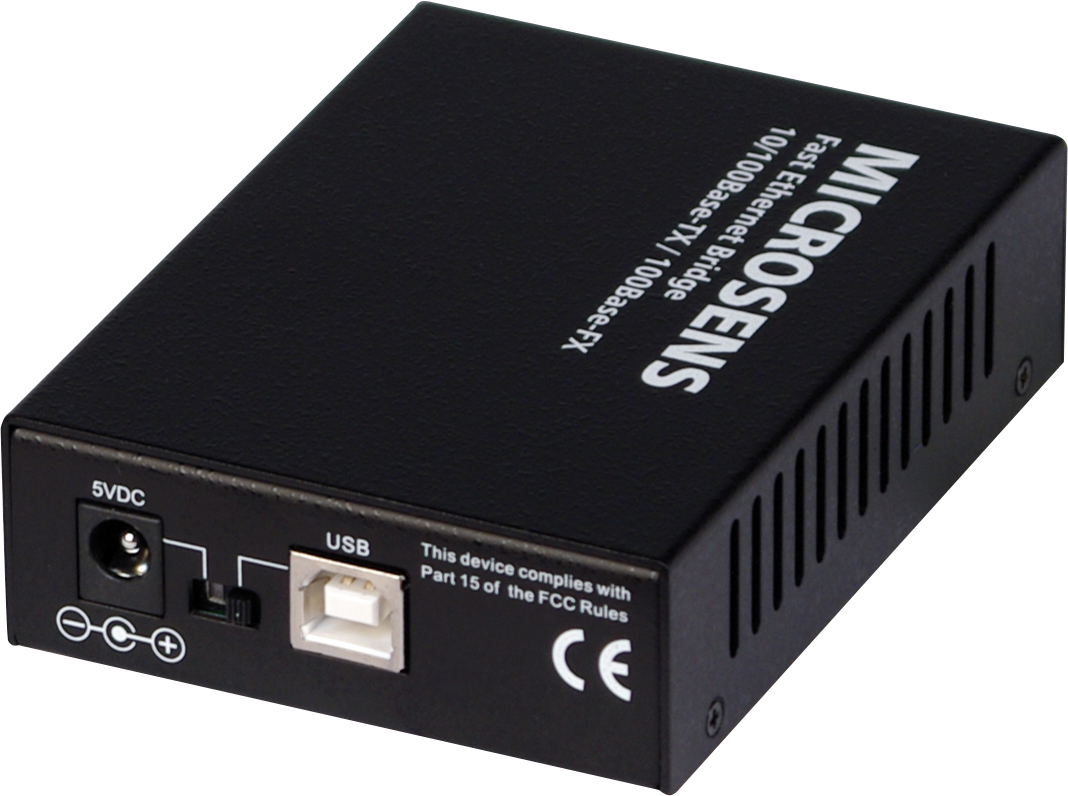

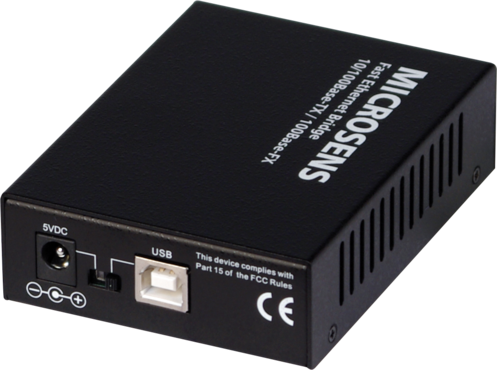

MS400160 power connection
MS400160 power connection

Desktop FE Bridge

  • Cost-effective Fast Ethernet (100Base-FX to 10/100Base-TX) media conversion
  • Compact desktop design with external power supply
  • Multimode and single mode versions (SC duplex), special versions with BiDi, WDM or special optics (MS41051x-V2 or MS41064x-V2)
  • Version with option for power supply via USB cable available (MS40016x)
  • Special version with screwable power connection available (MS41051x-V2)
Secure Download
Detail information
Description
Description

Bridges (typically called media converters, although there are significant differences here) in desktop design are among the simplest components for converting the Ethernet transmission media copper / fiber optic. The bridging of long transmission distances, the galvanic isolation or the bridging of communication paths susceptible to interference (EMC!) are the main reasons for the use of these components.



MICROSENS offers a converter with an optical transmission side of 10Base-FL which is still in demand in the field of automation and power supply.

This FLTP converter sets

- 10BaseT (RJ-45) to 10Base-FL (fixed optics, SC multimode)

The MICROSENS product portfolio in the area of Fast Ethernet media conversion copper / fiber optic is very varied for components in desktop design. Although the standard application, the conversion 10/100Base-TX to 100Base-FX is always given, MICROSENS uses various special designs here:

- Standard Desktopbridge 10/100Base-TX to 100Base-FX (MM / SM, depending on version, always SC duplex)

- Compact bridge 10/100Base-TX to 100Base-FX (optics on request, SC/ST/SC simplex, single mode up to 80km transmission range)

- Compact bridge 10/100Base-TX to 100Base-FX with special robust voltage input (optics on request, SC/ST/SC simplex, single mode up to 80km transmission range)

- Desktopbridge 10/100Base-TX to 100Base-FX with optional voltage input 5V via USB (MM / SM, depending on version, always SC duplex)

The conversion to single fiber (also known as BiDi or simplex) is becoming more and more common, using flexible optics (SFPs) that transmit and receive via just one fiber. This technique is mainly used in the FTTH range to save fibers. Currently, this technology is increasingly being used within existing (single mode) cabling in order to double existing cable capacities.

Products
Products
Products

MS400160


Product is available

MS400160

FE Desktop Bridging Konverter MM 1x 100FX SC/MM, 1x 10/100TX, USB Powerport, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex MM, 1x SV / USB

Products

MS400160-MED


Product is available

MS400160-MED

FE Desktop Bridging Konverter MM Med 1x 100FX ST/MM, 1x 10/100TX, USB Powerport, ext. Med-PS EN60601-1 (110/230VAC)

1x RJ-45, 1x SC duplex MM, 1x SV / USB

Products

MS400210


Product is available

MS400210

FE Desktop Bridging Konverter MM 1x 100FX SC/MM, 1x 10/100TX, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex MM, 1x SV

Products

MS400212


Product is available

MS400212

FE Desktop Bridging Konverter SM 1x 100FX SC/SM (15km), 1x 10/100TX, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex SM, 1x SV

Products

MS400161


Product is available

MS400161

FE Desktop Bridging Konverter MM 1x 100FX ST/MM, 1x 10/100TX, USB Powerport, ext. PS (110/230VAC)

1x RJ-45, 1x ST duplex MM, 1x SV / USB

Products

MS400162


Product is available

MS400162

FE Desktop Bridging Konverter SM 1x 100FX SC/SM (15km), 1x 10/100TX, USB Powerport, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex SM, 1x SV / USB

Products

MS400163


Product is available

MS400163

FE Desktop Bridging Konverter SM 1x 100FX ST/SM (15km), 1x 10/100TX, USB Powerport, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex SM, 1x SV / USB

Products

MS400164


Product is available

MS400164

Mini Bridge 1x10/100Base-TX, 1x100Base-FX, Monomode 1310nm min. 40km, SC-Stecker, inkl. Netzteil (extern) opt. über USB Port

1x RJ-45, 1x SC duplex SM, 1x SV / USB

Products

MS400165


Product is available

MS400165

Mini Bridge 1x10/100Base-TX, 1x100Base-FX, Monomode 1310nm min. 60km, SC-Stecker, inkl. Netzteil (extern) opt. über USB

1x RJ-45, 1x SC duplex SM, 1x SV / USB

show more
