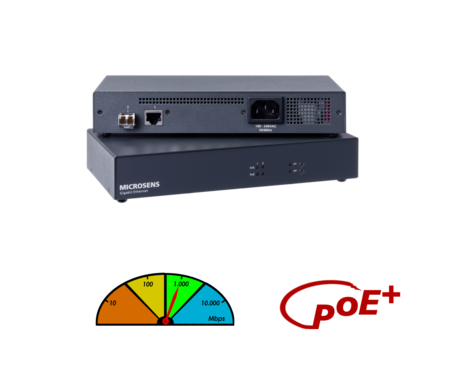

Desktop GbE Bridge PoE+

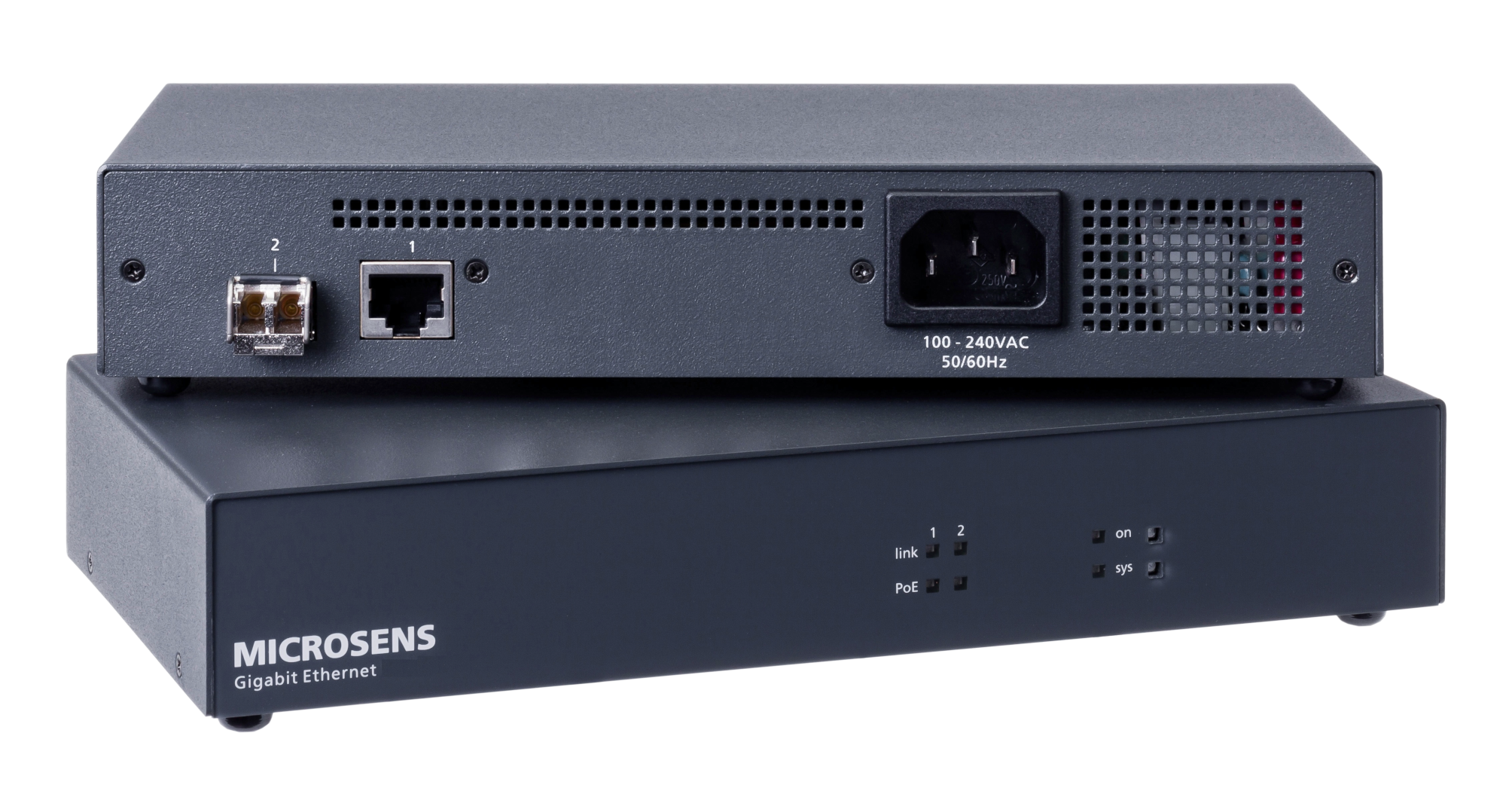

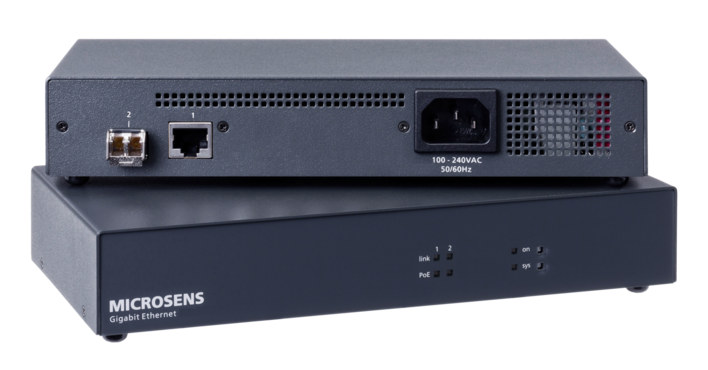

MS400075H front and back
MS400075H front and back

Desktop GbE Bridge PoE+

  • Compact bridging converter with integrated 230 VAC power supply and PoE+ (802.3at) PSE Port
  • Clean desktop or raised floor installation due to integrated power supply without switching or plug-in power supply unit
  • MICROSENS RDR hardware function adjustable via DIP switches, link through function can be activated
  • Fiber interface flexible through SFP slot in dual speed version (100/1000Base-X)
  • End device can be reset via manageable central switch, bridge transparent
Detail information
Description
Description

Modern IP-based networks, which map parallel services on a network infrastructure (computers, but also VoIP or WIFI applications), are designed for power supply via PoE or PoE+ (according to IEEE 802.3at, downward compatible IEEE 802.3af). This is mainly driven by the large number of compact end devices. There is no need for a separate power supply; a 230V socket and separate cabling are not required.

For simple 1:1 media conversion with additional PSE (Powered Source Equipment) supply, MICROSENS has special PoE bridges in its product portfolio that are designed in the typical desktop design.

The main features of these devices are

- Conversion / bridging from 10/100/1000Base-T (RJ-45 with PoE+ PSE function) to
- the Dual Speed fiber optic SFP slot (100/1000Base-X, depending on SFP type)
- the direct 230VAC power supply without an external power source (integrated power supply unit)
- the adjustable Link Fault/Pass Through function.

The adjustable LFP function contains a simple but extremely effective mechanism for IT administration. To reset the PoE-fed terminal device, only the interruption of the fiber optic connection to the bridge is necessary (this bridge is typically connected to a centrally administered access switch). As soon as the fiber connection is briefly interrupted by management access, the bridge in LFP mode can also forward this interruption to the TP port and the PoE power supply. If the PoE supply is briefly interrupted, the terminal restarts.

The compactness of the desktop PoE bridge is also worth mentioning; the power supply unit for the bridge and the PoE+ terminals is integrated in the housing. An external power supply is not required.

Products
Products
Products

MS400075H


Product is available

MS400075H

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range
End of Life / Out of product range

MS400080

show alternative

Product reached his Life-Time

MS400080

End of Life / Out of product range

PSE GBE Bridge 10/100/1000T 1000SX Multimode 850nm SC, int. power supply PSE Device (Power Source Equipment) complied to I EEE802.3af

NIL -> MS400075H zzgl. MS100200

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400080H

show alternative

Product reached his Life-Time

MS400080H

End of Life / Out of product range

PoE GBE Bridge 10/100/1000T 1000SX Multimode 850nm SC, int. power supply PSE Device (Power Source Equipment) IEEE802.3af & high power PoE 30W

NIL -> MS400075H zzgl. MS100200

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400081H

show alternative

Product reached his Life-Time

MS400081H

End of Life / Out of product range

PoE GBE Bridge 10/100/1000T 1000SX Multimode 850nm ST, int. power supply PSE Device (Power Source Equipment) IEEE802.3af & high power PoE 30W

NIL -> MS400075H zzgl. MS100200

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400082

show alternative

Product reached his Life-Time

MS400082

End of Life / Out of product range

PSE GBE Bridge 10/100/1000T 1000LX Single Mode 1310nm SC int. power supply PSE Device (Power Source Equipment) complied to I EEE802.3af

NIL -> MS400075H zzgl. MS100210

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400082H

show alternative

Product reached his Life-Time

MS400082H

End of Life / Out of product range

POE+ GBE Bridge 10/100/1000T 1000LX Singlemode 1310nm SC, int. power supply PSE Device (Power Source Equipment) IEEE802.3af & high power PoE+ 30W

NIL -> MS400075H zzgl. MS100210

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400089

show alternative

Product reached his Life-Time

MS400089

End of Life / Out of product range

PSE GBE Bridge 10/100/1000T 1000X SFP 802.2af max.15,4W,int.230VACpower supply PSE Device (Power Source Equipment) complied to I EEE802.3af

NIL -> MS400075H

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400090

show alternative

Product reached his Life-Time

MS400090

End of Life / Out of product range

PSE Ethernet Bridge 1x10/100TX 1x100FX Multimode 1310nm SC, int. power supply PSE Device (Power Source Equipment) complied to I EEE802.3af

NIL -> MS400075H zzgl. MS100190D

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS400091

show alternative

Product reached his Life-Time

MS400091

End of Life / Out of product range

PSE Ethernet Bridge 1x10/100TX 1x100FX Multimode 1310nm ST, int. power supply PSE Device (Power Source Equipment) complied to I EEE802.3af

NIL -> MS400075H zzgl. MS100191

hide alternative

MS400075H

hide alternative

Product is available

MS400075H

hide alternative

GbE Desktop Bridging Converter PoE+ 230VAC 1x 100/1000X SFP-Slot, 10/100/1000T PoE+, int. 110/230VAC (C14), LinkDown-PoE+off

1x RJ-45, 1x SFP Slot, 1x SV
