Medical Switch with Power Supply over PoE – Economically Efficient and Secure Network Technology in Medical Facilities

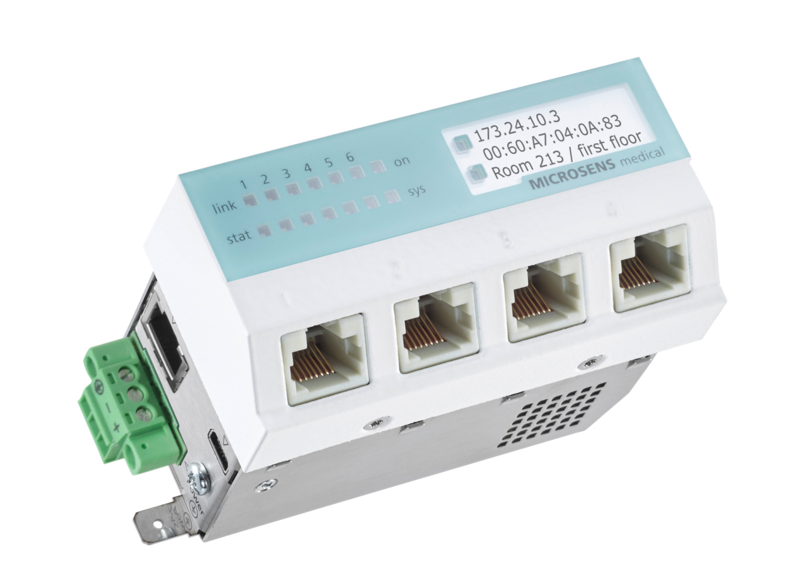

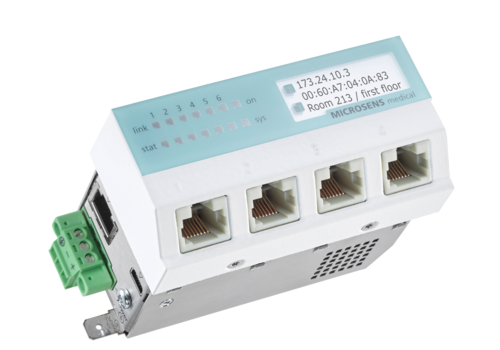

The new Medical Switch of the euromicron subsidiary MICROSENS offers performance, security, and economic efficiency for data networks in medical environments. Instead of installing new cabling with a high effort, the Medical Switch permits the extension of existing twisted pair networks in hospitals, clinics, and medical practices in a simple and cost-effective way. The retrofitting can be performed with running operational processes in the clinic and only minimal restrictions and provides performance and security where they are needed: at the outer boundaries of the network, at the access of the end device.


Instead of copper cables with four external network isolators as they are required in conventional network concepts, the Medical Switch offers a compact, fully integrated, robust, and secure solution. A special feature is the power supply via Power-over-Ethernet directly from the data network. In this case, the connection of a 230 VAC power supply is no longer necessary.




The Medical Switch is designed for the application in medically used rooms according to the IEC 60364-7-710 (VDE 0100 Part 710) Standard for the galvanic separation of signal lines according to Chapter 16 of the IEC/EN 60601-1. The switch ensures the security for patients and medical facilities by means of four galvanically separated 10/100/1000 Mbps access ports with integrated network isolators. Two Gigabit uplink ports provide top-level performance and network availability with redundancy, so that the huge data volumes generated by IT-based diagnostic and medical attendance systems are transferred quickly, reliably, and in secure mode.




The Medical Switch fulfils the requirements of patient protection with 2 MOPP (Means of Patient Protection) and and exceeds the strict requirements according to IEC/EN 60601-1 (at least 4 kV minimum ­­electric strength) for medical devices.




By using these switches, the operating units (e.g. hospitals or medical practices) at the same time fulfil the requirements of Chapter 16 of the IEC/EN 60601-1 Standard relating to the required separation of signals in patient environments. In this way, the corresponding national stipulations for the installation, operation, usage, and maintenance of medical products and their combination with other components, such as IT networks, are also complied with.



The protection of sensitive data is ensured by means of port security according to IEEE 802.1X. The switch can be integrated into a Radius solution and is compatible with all conventionally available NAC solutions. The snap-in assembly with an internationally standardised installation measure of 45 mm permits the fast and tool-less assembly in all conventional installation systems, as well as the integrated assembly in ceiling supply units. The surface of the Medical Switch is made up of robust plastic and permits effective cleaning and disinfection. It is available with an antibacterial coating.


Transmitting information via fiber optic connections offers numerous benefits. MICROSENS GmbH & Co. KG recognised this very early on. As one of the pioneers, the company has developed and produced high-performance communications and transmission systems in Germany since 1993. Individually matched to the demands of diverse usage areas and embedded in comprehensive concepts for individual sectors. But, above all, close to the customer. Technical challenges from customer projects are incorporated directly into product development. This way, IP-based automation solutions are created for modern buildings, cost-efficient network concepts for the office and workspace, robust and fail-safe solutions for industrial environments, optical transport systems future-oriented wide area networks and efficient coupling of sites and computer centres.
