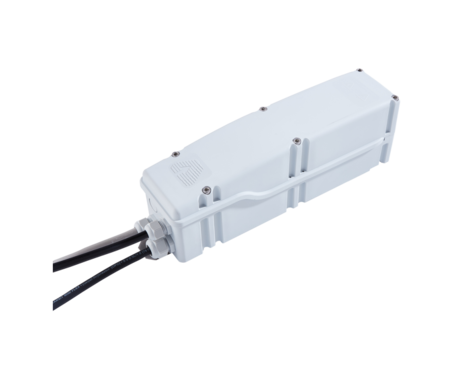

Outdoor mast box IP67 for PoE+ and fiber optic outdoor applications

Outdoor mast box IP67 for PoE+ and fiber optic outdoor applications

Outdoor mast box IP67 for PoE+ and fiber optic outdoor applications

  • Compact, fiber-reinforced enclosure for outdoor applications (IP67) with integrated PoE+ power supply unit
  • Optimized for the use of a ruggedized micro switch PoE+
  • For mast or wall mounting, depending on mast profile also mountable inside masts
  • Prepared housing with power supply, 230V, splice cassette and power supply including cabling
  • Versions with 230 VAC and 24 VDC (for non-PoE applications) available
Detail information
Description
Description

With the IP67 mast box MICROSENS offers a pre-assembled compact enclosure, which is suited perfectly for the integration of the Ruggedized Gigabit Micro Switches. WiFi access points, video cameras, weather stations, barrier systems as well as other control and monitoring systems can be connected to an IP network.

The housing is usually mounted using a clamp band or corresponding mounting brackets. The compact housing dimensions also allow direct mounting inside mast systems, for which optional mast hooks are available.

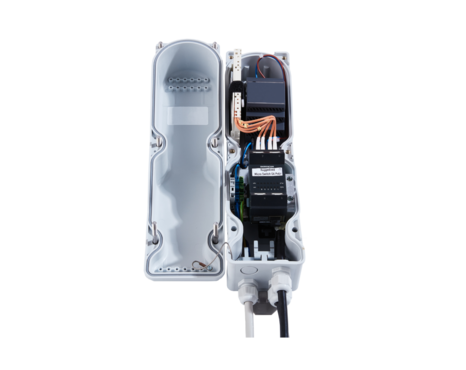

The pre-assembled IP67 housing has a fiber tray (splice cassette) and thus supports the accommodation of fiber optic connections. Furthermore, it optionally includes a 24 VDC or 48 VDC power supply, whereby the 230 VAC supply line is intercepted via an existing terminal block.

The housing is equipped with three PG fitting (2x PG11 and 1x PG16) for feeding the cables. A further PG13 cable fitting can optionally be realized using a further drilling device.

The 6-port Gigabit Ruggedized Micro Switch is ideally suited as an active network component and is available in various versions depending on requirements. Three different voltage versions are available (48 VDC for PoE/PoE+ applications, 24 VDC and 230 VAC) as well as three different port versions (2x optical fiber for bus or ring topologies, 1x optical fiber and a pure RJ-45 variant).

In combination with the Ruggedized Micro Switch, the IP67 mast box becomes a powerful and compact active distributor for outdoor applications.

Products
Products
Products

MS711000


Product is available

MS711000

IP67 Mastbox für Außeneinsatz inkl. Faserkassette, DIN-Schiene, 3x PG-Verschraubung, Montageplatte

3x PG

Products

MS711000-230NT48


Product is available

MS711000-230NT48

IP67 Mastbox PoE+ für Außeneinsatz inkl. Faserkassette, 2 DIN-Schienen, PoE+Netzteil, 3x PG-Verschraubung, Montageplatte, 230VAC-Anschlussklemmen, vorverkabelt

3x PG

Accessories
Accessories

MS711000-PH


Product is available

MS711000-PH

Masthaken für Mastbox MS711000-xxx
