MSP800 chassis and power supply

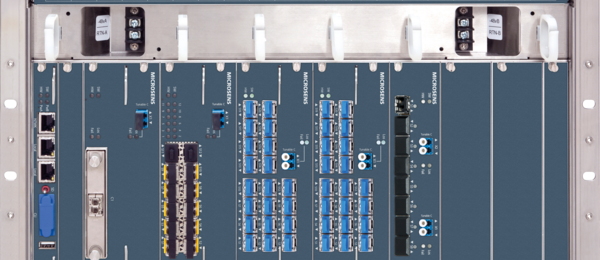

  • 19" chassis in 1U (3 slots) and 3U (14 slots), redundant power supply version available
  • Also suitable for small distributors due to low installation depth
  • Fan module on the back side can be replaced in the field
  • 3 service modules for the 1U chassis, up to 12 service modules can be used within the 3U chassis
  • 230 VAC and 48 VDC voltage input possible, mixed voltage for 3U chassis
  • Desk chassis available for one service module
Secure Download
Detail information
Description
Description

The Microsens Enterprise Access Platform (MSP800) offers a variable and versatile platform for the connection of different services and protocols up to a bandwidth of 2.7GBit/s. This flexibility is achieved by the modular design and the wide range of chassis types with different numbers of modules and power supplies with different voltage ranges.



The 19" chassis offers a fail-save redundant power supply option.. Our portfolio offers a4U chassis with 28 module slots, a 3U chassis with 14 and a desktop chassis for just one slot (typically used locally as a remote station).

All modules of the same series can be combined freely and exchanged during operation (hot swap). All connections are accessible from the front, making installation and maintenance extremely easy.

A management insertion module provides current operating states, such as power supply, temperature or information about connections of individual segments via SNMP. Besides this, the web-based management allows visualization using Internet browsers.

With MSP800, xWDM systems up to a transmission bandwidth of 2.7 GBit/s can be set up cost-efficiently in addition to the classic conversion and conversion services. Services are not limited to Ethernet; the modular design even allows the integration of serial protocols such as RS-232, RS-422 and RS-485 or even the xWDM transmission of G.703 protocols. This parallel transmission via just one fiber optic cable optimizes existing networks up to the simplest protocols.

Products
Products
Products

MS416001M


Product is available

MS416001M

MSP800 Enterprise Access 3HE Chassis 19" 14 Modulslots, red. SV vorbereitet, inkl. Backplane

Products

MS416004M


Product is available

MS416004M

MSP800 3HE/4HE-Chassis Netzteil 230VAC 90W, belegt 2 Modulslots

1x SV

Products

MS416005M-24


Product is available

MS416005M-24

MSP800 3HE/4HE-Chassis Netzteil 24VDC 90W, belegt 2 Modulslots

Products

MS416006M


Product is available

MS416006M

MSP800 Enterprise Access 1HE Chassis 19" Spannungsversorgung 230VAC (40W), 3 aktive Modulslots

1x SV

Products

MS416006L


Product is available

MS416006L

MSP800 Enterprise Access 1HE Chassis 19" passiv 3 passive Modulslots

Products

MS416010M


Product is available

MS416010M

MSP800 Enterprise Access 4HE Chassis 19" 28 Slots, vor- und rückseitige Modulslots, inkl. Backplane

Products

MS417001


Product is available

MS417001

MSP800 Desktop Gehäuse ext. Netzteil 230VAC für Modulaufnahme MS416xxx & MS415xxx, 1 aktiver Modulslot

Products

MS417021


Product is available

MS417021

MSP800 Desktop Gehäuse int. Netzteil 230VAC für Modulaufnahme MS416xxx & MS415xxx, 1 aktiver Modulslot

Accessories
Accessories

MS416100


Product is available

MS416100

MSP800 1 Modulslot Blindabdeckung
