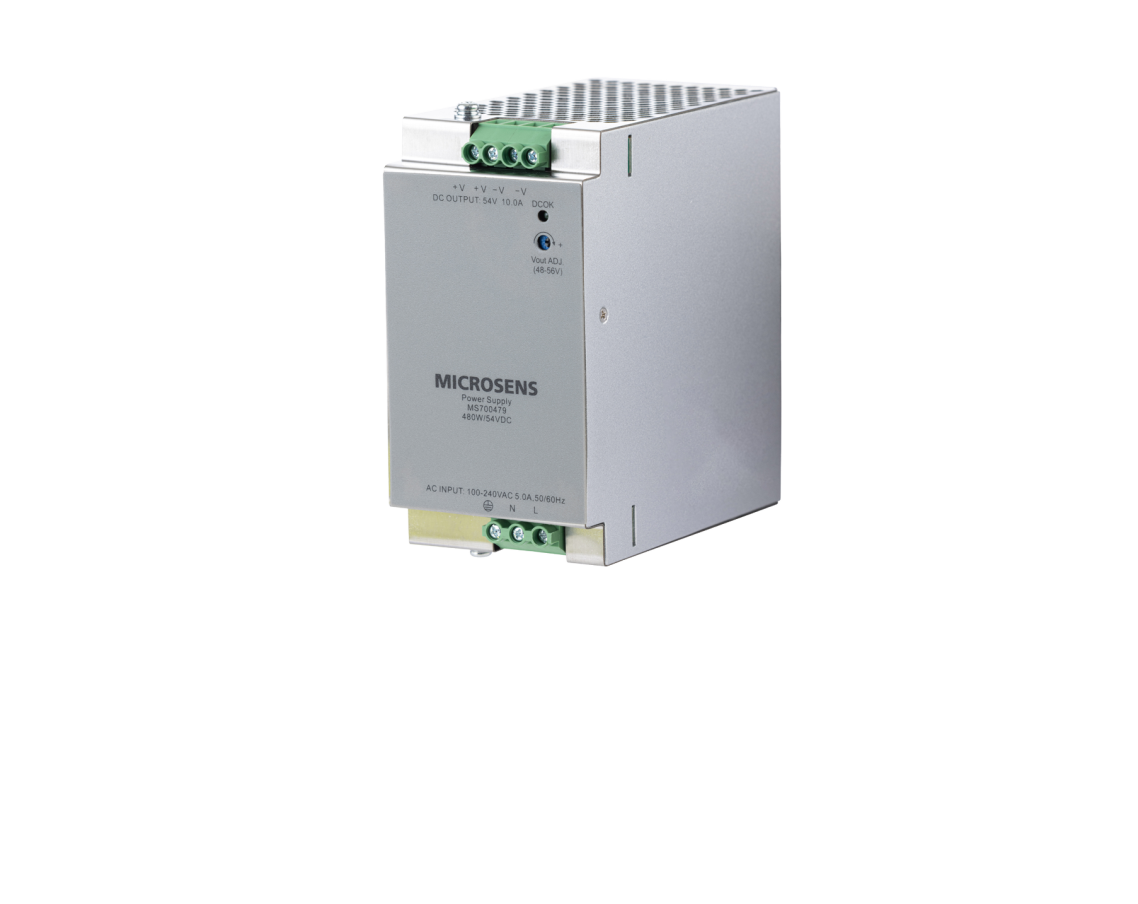

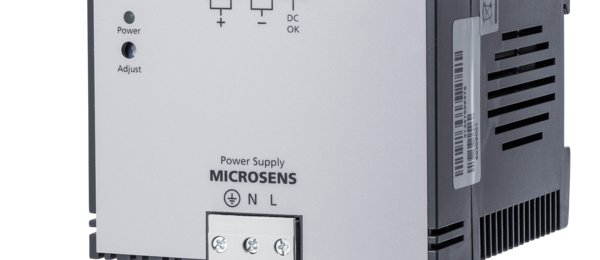

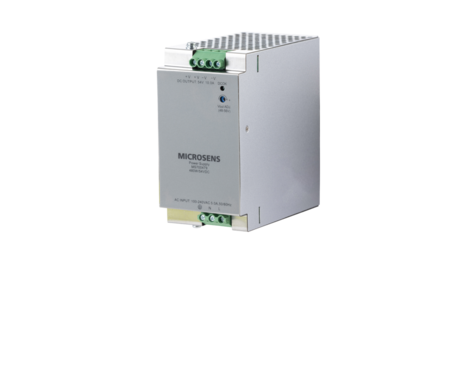

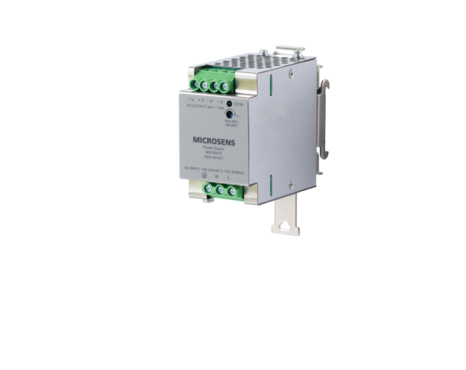

Industrial DIN-Rail PoE+ Power Supply

Industrial DIN-Rail PoE+ Power Supply
MS700455
MS700455

Industrial DIN-Rail PoE+ Power Supply

  • Industrial power supply for highest reliability, efficiency and availability

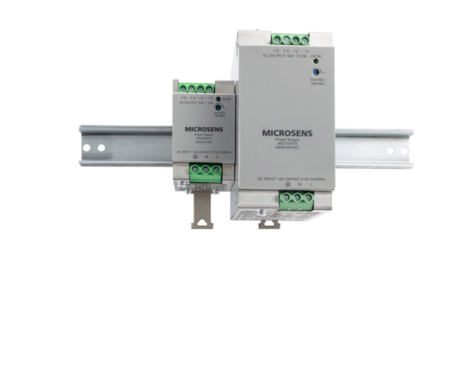

  • DIN rail adapter and terminal blocks for easy mounting
  • Wide range input depending on variant 85..264 VAC or 90..132/180..264 VAC (auto select)
  • Adjustable output voltage depending on version 45..56 VDC
  • Power classes from 50W up to 600W

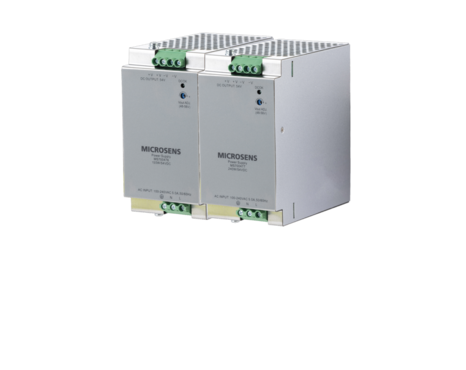

  • Operation mode for normal, battery or parallel operation depending on version
Secure Download
Detail information
Description
Description

Active network components that have Power-over-Ethernet, PoE+ or higher performance classes usually require an external high-performance supply of 48 VDC. MICROSENS offers special power supplies in industrial DIN rail design for this extremely demanding application.

The main feature of these power supply units is their insensitivity to electrical interference, which is particularly important for failure-sensitive applications. Further important features are high efficiency, extended temperature range, compact dimensions and easy snap-on mounting on DIN rails.

The robust power supplies are available in the 50, 120, 240, 480 and 600 W power classes. The output voltage of 48 VDC can be set up to 56 VDC directly at the power supply. This is especially important for PoE+ (according to IEEE 802.3at with up to 30 W per port). All devices also feature effective overvoltage and overload protection.

Products
Products
Products

MS700455


Product is available

MS700455

Industrial DIN-Rail Netzteil 48VDC / 1,05A PoE+ (50W) Input 85..264VAC/90..375VDC, Output 48..56VDC, -10..+70°C

In: 3-polig, Out: 4-polig

Products

MS700456


Product is available

MS700456

Industrial DIN-Rail Netzteil 48VDC / 2,5A PoE+ (120W) Input 90..132/180..264VAC/210..370VDC, Output 45..55VDC, -35..+70°C

In: 3-polig, Out: 6-polig

Products

MS700457


Product is available

MS700457

Industrial DIN-Rail Netzteil 48VDC / 5A PoE+ (240W) Input 90..132/180..264VAC/210..370VDC, Output 47..56VDC, -40..+70°C

In: 3-polig, Out: 6-polig

Products

MS700458


Product is available

MS700458

Industrial DIN-Rail Netzteil 48VDC / 10A PoE+ (480W) Input 90..264VAC/120..370VDC, Output 47..56VDC, -40..+70°C

In: 3-polig, Out: 6-polig

Products

MS700430


Product is available

MS700430

Industrial DIN-Rail Netzteil 48VDC / 1,25A PoE+ (60W) Input 85..264VAC/83..375VDC, Output 48..56VDC, -10..+70°C

In: 3-polig, Out: 5-polig

Products

MS700466


Product is available

MS700466

Industrial DIN-Rail Netzteil 48VDC / 2A PoE+ (96W) Input 85..264VAC, Output 48..56VDC, -25..+70°C

In: 3-polig, Out: 2-polig

Products

MS700467


Product is available

MS700467

Industrial DIN-Rail Netzteil 48VDC / 4A PoE+ (192W) Input 85..264VAC, Output 48..56VDC, -25..+70°C

In: 3-polig, Out: 4-polig

Products

MS700468


Product is available

MS700468

Industrial DIN-Rail Netzteil 48VDC / 7,5A PoE+ (360W) Input 85..264VAC, Output 48..56VDC, -25..+70°C

In: 3-polig, Out: 4-polig

Products

MS700469


Product is available

MS700469

Industrial DIN-Rail Netzteil 48VDC / 12,5A PoE+ (600W) Input 85..264VAC, Output 48..56VDC, -25..+70°C

In: 3-polig, Out: 4-polig
