12/24-Port FE Multiport Converter

Inquiry
12/24-Port FE Multiport Converter

12/24-Port FE Multiport Converter

  • Cost-optimized managed Fast Ethernet multiport converter
  • 12- and 24-port versions available
  • Auto-negotiation support for automatic selection of full or half duplex mode
  • Compact design (1U) with high port density
  • Easy 19" installation and use
  • Integrated Outband network management
Download
Data Sheet
Manual
Secure Download
Firmware_Multiportconverter_1_08_01
Visio Multiportconverter
Detail information
Description
Description

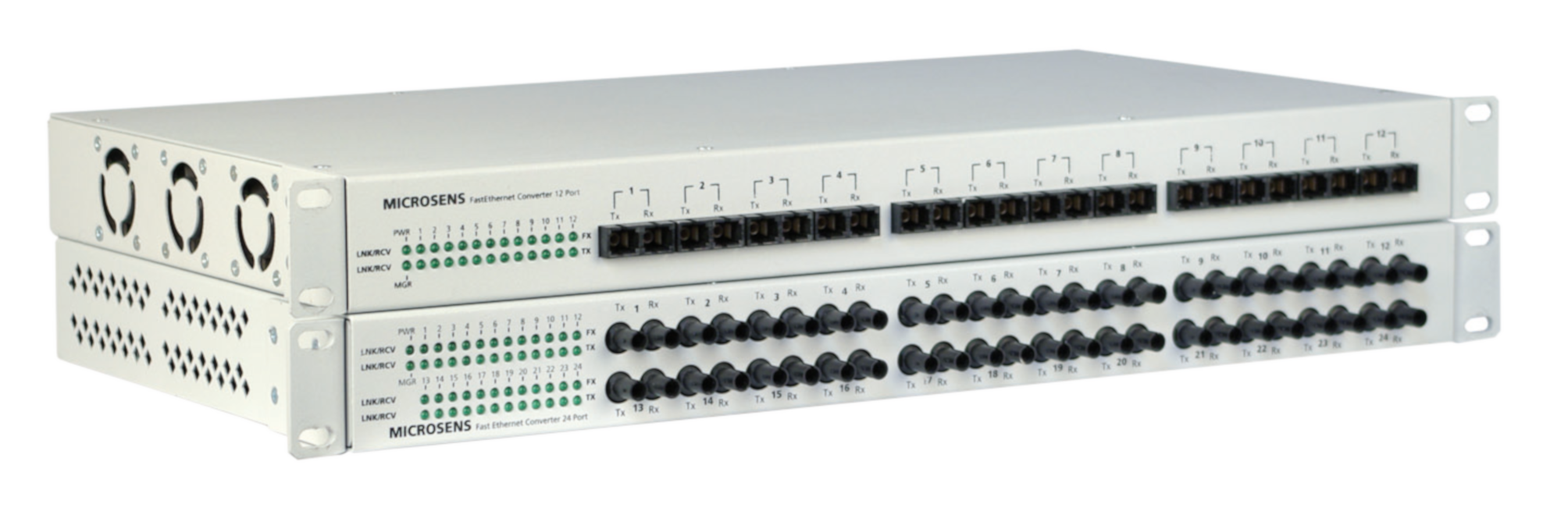

MICROSENS multi-port converters offer a multitude of 100Base-FX to 100Base-TX conversions on 1U in a 19" environment.



MICROSENS offers two different versions. In addition to the 12-port version, there is also a 24-port version, which features an extremely high port density on only 1U.

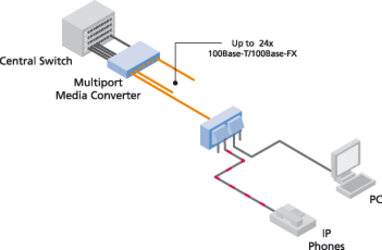

In fibre optic-based 100 Mbit networks, a large number of active fibre optic ports are required in the central distribution area. From an economic point of view, the use of media converters with copper-based switches makes a lot of sense.

However, central conversions within buildings that use 100 Mbit can also be achieved with the multiport converter. There are even single-mode variants of the device.

The fibre optic connections are designed with the standard SC duplex connector, while the copper-side interface is RJ-45. Multi-port converters have a number of additional features, such as integrated SNMP and web management for remote administration and interchangeable ventilation modules.

Items

Products
Products
Products

MS416901M


Product is available

Order offer

MS416901M

24 Port Konverter 100BaseTX/FX RJMMSC Multimode 1310nm SC, 19"1U, 24xRJ-45

24x RJ-45, 24x SC duplex MM, 1x 3plg. 230VAC, 3x RJ-45 Management

Products

MS416906M


Product is available

Order offer

MS416906M

24 Port Konverter 100BaseTX/FX RJSMSC Monomode 1310nm SC15km,19"1U,24xRJ-45

24x RJ-45, 24x SC duplex SM, 1x 3plg. 230VAC, 3x RJ-45 Management

Products

MS416951M


Product is available

Order offer

MS416951M

12 Port Konverter 100BaseTX/FX RJ45 MMSC 1310nm Multimode SC 19"1U Geh. 12xRJ45

12x RJ-45, 12x SC duplex MM, 1x 3plg. 230VAC, 3x RJ-45 Management

Products

MS416956M


Product is available

Order offer

MS416956M

12 Port Konverter 100BaseTX/FX RJ45 SCSM 1310nm Monomode 15km SC, 19"1HE 12xRJ45

12x RJ-45, 12x SC duplex SM, 1x 3plg. 230VAC, 3x RJ-45 Management

Accessories
Accessories

MS416991


Product is available

Order offer

MS416991

Fan/Filter Module long-life for 12/24 Port Converter MS4169xxM

End of Life / Out of product range
End of Life / Out of product range

MS416900M

show alternative

Product reached his Life-Time

Order offer

MS416900M

End of Life / Out of product range

24 Port Konverter 100BaseTX/FX RJMMST Multimode 1310nm ST, 19"1U, 24xRJ-45

NIL -> MS416901M

hide alternative

MS416901M

hide alternative

Product is available

Order offer

MS416901M

hide alternative

24 Port Konverter 100BaseTX/FX RJMMSC Multimode 1310nm SC, 19"1U, 24xRJ-45

24x RJ-45, 24x SC duplex MM, 1x 3plg. 230VAC, 3x RJ-45 Management

End of Life / Out of product range

MS416905M

show alternative

Product reached his Life-Time

Order offer

MS416905M

End of Life / Out of product range

24 Port Konverter 100BaseTX/FX RJSMST Monomode 1310nm ST15km,19"1U,24xRJ-45

NIL -> MS416906M

hide alternative

MS416906M

hide alternative

Product is available

Order offer

MS416906M

hide alternative

24 Port Konverter 100BaseTX/FX RJSMSC Monomode 1310nm SC15km,19"1U,24xRJ-45

24x RJ-45, 24x SC duplex SM, 1x 3plg. 230VAC, 3x RJ-45 Management

End of Life / Out of product range

MS416920M

show alternative

Product reached his Life-Time

Order offer

MS416920M

End of Life / Out of product range

24 Port Konverter 100BaseTX/FX TEL MMST Multimode 1310nm ST, 19"1U, 2xTELCO

NIL -> MS416901M

hide alternative

MS416901M

hide alternative

Product is available

Order offer

MS416901M

hide alternative

24 Port Konverter 100BaseTX/FX RJMMSC Multimode 1310nm SC, 19"1U, 24xRJ-45

24x RJ-45, 24x SC duplex MM, 1x 3plg. 230VAC, 3x RJ-45 Management

End of Life / Out of product range

MS416921M

show alternative

Product reached his Life-Time

Order offer

MS416921M

End of Life / Out of product range

24 Port Konverter 100BaseTX/FX TEL MMSC Multimode 1310nm SC,19"1U, 2xTELCO

NIL -> MS416901M

hide alternative

MS416901M

hide alternative

Product is available

Order offer

MS416901M

hide alternative

24 Port Konverter 100BaseTX/FX RJMMSC Multimode 1310nm SC, 19"1U, 24xRJ-45

24x RJ-45, 24x SC duplex MM, 1x 3plg. 230VAC, 3x RJ-45 Management

show more
