Multi PoE+/++ Switches 19“

Multi PoE+/++ Switches 19“

Multi PoE+/++ Switches 19“

  • Cost-effective 28-port Gigabit Ethernet 19" switch, 24x 10/100/1000Base-T PoE+ ports (802.3at) and a power budget of 370W
  • 4x 100/1000Base-X SFP Slots (uncoded)
  • Extensive functions such as QoS, VLANs, RSTP, etc.
  • Network management via web browser
  • Low total cost of ownership (TCO) due to energy-efficient design
  • Enhanced PoE management and disposition through 802.3az (Energy Efficient Ethernet)
Bezpieczne pobieranie
Szczegółowe informacje
Opis
Opis

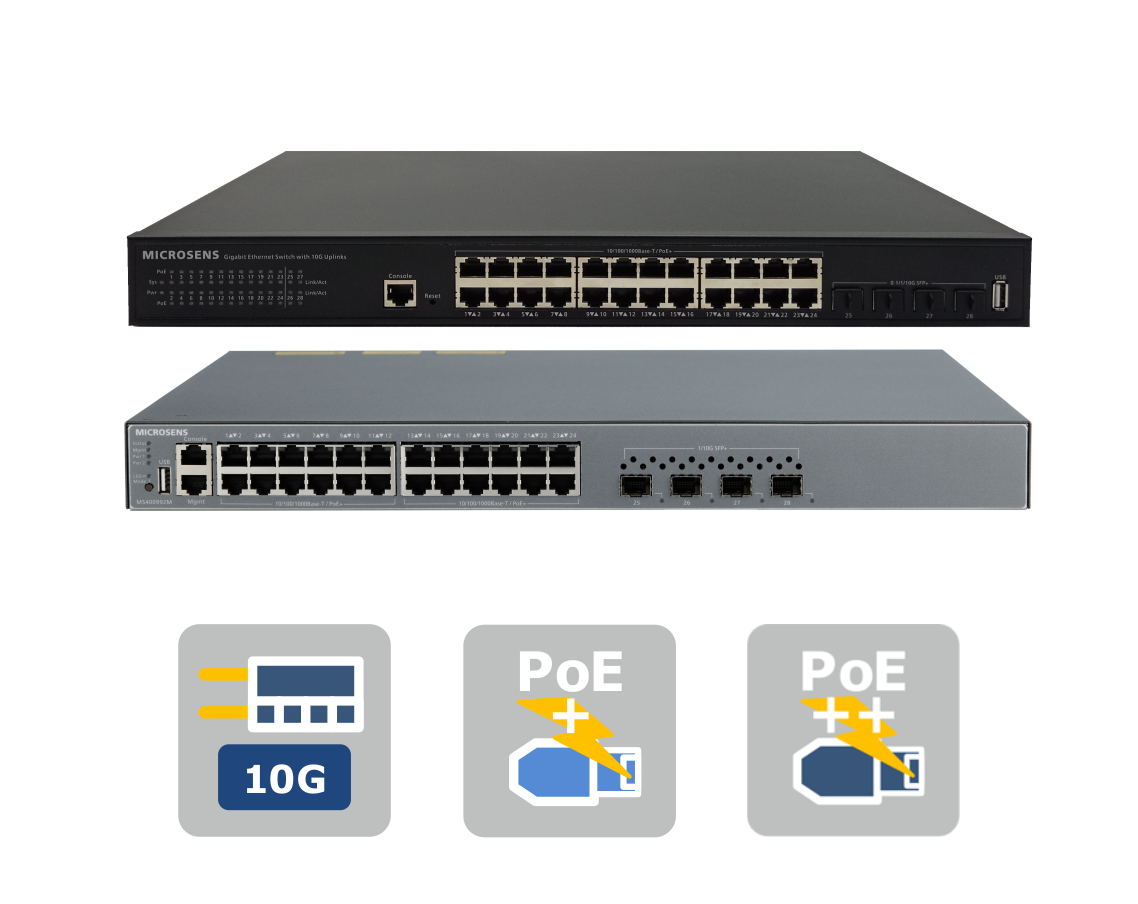

The high-performance 28-port Gigabit Ethernet switch is specially designed for use in networks in which Power-over-Ethernet functionality is used. All 24 10/100/1000Base-T copper ports offer PoE according to IEEE802.3af and IEEE802.3at standards.



This allows end devices connected to the network port to be supplied with a power of up to 30 W per port cost-effectively and without additional cabling. The total power output of the switch is up to 370 W.

The 28 port switch has 4x 100/1000X ports. This enables a direct connection to a GBE fiber optic backbone via standard SFP transceivers. Switches located further away can be cascaded via fiber optic cables.

All network ports are accessible from the front of the device, making patching much easier. The switch is equipped with an integrated smart management (via web browser). In addition, the status information can be read out via SNMP. The GBE switch also supports a wide range of functions such as QoS, VLANs, STP/RSTP, loop protection, IGMP snooping, SNMP traps and much more.

The device is powered with 100..230 VAC via a connector on the rear of the device.

Produkty
Produkty
Products

MS400835M


Produkt jest dostępny

MS400835M

28-Port 10G Switch 19" PoE+, 24x10/100/1000T PoE+, 4x 1/10G-X SFP+-slots, int. 110/230VAC (C14), 370W, managed

Products

MS400980M


Produkt jest dostępny

MS400980M

28-Port 10G L2/L3 Switch 19" PoE+, 4x 1/10GBase-X SFP+-Slots, managed, 24x 10/100/1000Base-T PoE+, int. 100~240VAC (C14), console port (RJ-45)

24x RJ-45, 4x SFP+ Slots, 1x Console RJ-45, 1x SV

Products

MS400981M


Produkt jest dostępny

MS400981M

28-Port 10G L2/L3 Switch 19" PoE+ fanless, 4x 1/10GBase-X SFP+-Slots, managed, 24x 10/100/1000Base-T PoE+, int. 100~240VAC (C14), Console port (RJ-45)

24x RJ-45, 4x SFP-Slots, 1x SV

Products

MS400970M


Produkt jest dostępny

MS400970M

28-Port GbE Switch 19" Full-PoE++, 4x 1000Base-X SFP-Slots, managed, 24x 10/100/1000Base-T PoE++, 1900W, int. 100~240VAC (C14), Console Port (RJ-45)

Zaprzestano produkcji / niedostępny
End of Life / Out of product range

MS400834M

Pokaż alternatywę

Product reached his Life-Time

MS400834M

End of Life / Out of product range

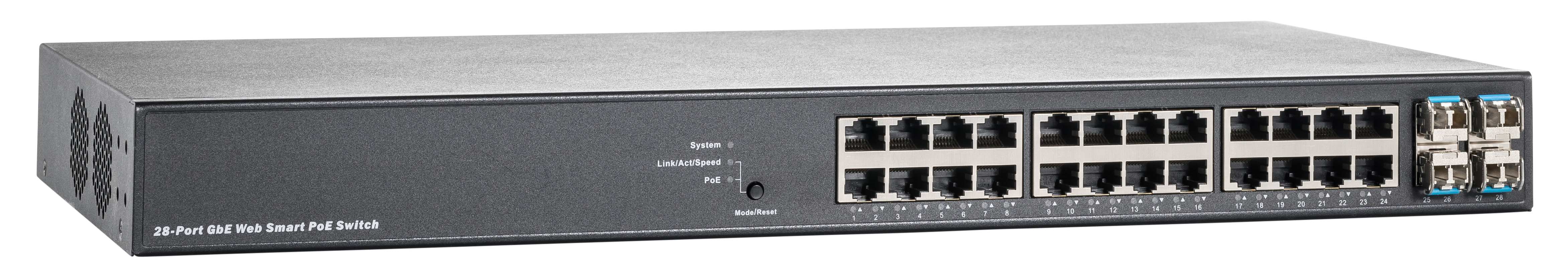

28-Port GbE Switch 19" 1HE PoE+ 24x10/100/1000T PoE+, 4x 100/1000X SFP-Slots, int. 110/230VAC (C14), 420W, managed

NIL --> MS400835M

Ukryj alternatywę

MS400835M

Ukryj alternatywę

Produkt jest dostępny

MS400835M

Ukryj alternatywę

28-Port 10G Switch 19" PoE+, 24x10/100/1000T PoE+, 4x 1/10G-X SFP+-slots, int. 110/230VAC (C14), 370W, managed

End of Life / Out of product range

MS400830M

Pokaż alternatywę

Product reached his Life-Time

MS400830M

End of Life / Out of product range

24 Port Gigabit Ethernet Switch, 20 Port 10/100/1000Base-T PoE + 4 Port TP/(100M/1G SFP) Combo Smart Management 19" 1U

NIL -> MS400835M

Ukryj alternatywę

MS400835M

Ukryj alternatywę

Produkt jest dostępny

MS400835M

Ukryj alternatywę

28-Port 10G Switch 19" PoE+, 24x10/100/1000T PoE+, 4x 1/10G-X SFP+-slots, int. 110/230VAC (C14), 370W, managed
