GbE Transceiver
simplex SFP
simplex SFP
Twisted Pair SFP
Twisted Pair SFP

GbE Transceiver

  • Wide range of transceivers, tested manufacturer quality for maximum lifespan and fatigue strength in operation
  • Optionally with extended operating temperature range, recommended for use in fan-less / passively cooled devices
  • Simplex versions for bi-directional use available (Single Mode)
Bezpieczne pobieranie
Szczegółowe informacje
Opis
Opis

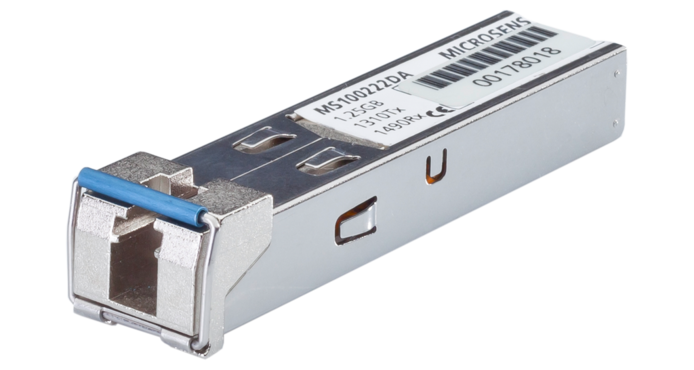

SFP Transceivers (Small FormFactor Pluggable) have become indispensable components in today's transmission and network technology.

Due to its standardized design (MSA) and as a flexibly exchangeable optical component, the SFP offers great advantages in the dynamic network world.

Especially starting from Gigabit bandwidth (1.25GBit/s) devices with integrated SC or ST optics are rarely available on the market. Mostly and especially in the central area, the SFP is very popular due to its compactness and flexibility. A typical Gigabit application is mainly operated centrally with SFP.

SFP transceivers with DDM function (Digital Diagnostics Monitoring) can display the optical parameters.

At MICROSENS all versions of the Gigabit SFP are used in all device types.

MICROSENS Gigabit Ethernet SFPs are available as in multimode, single mode with different power budgets from 10km (1310nm) to 120km (1550nm) as well as in the simplex variant. All SFPs have optional DDM and are also available with an extended operating temperature range for use in passively cooled components.

Produkty
Produkty
Products

MS100200


Produkt jest dostępny

MS100200

SFP GbE Transceiver 1.25G Multimode 850nm, LC

1x LC duplex MM

Products

MS100200D


Produkt jest dostępny

MS100200D

SFP GbE Transceiver 1.25G Multimode 850nm, DDM, LC

1x LC duplex MM

Products

MS100200DX


Produkt jest dostępny

MS100200DX

SFP GbE Transceiver 1.25G Multimode 850nm, DDM, LC, -40..+85°C

1x LC duplex MM

Products

MS100210


Produkt jest dostępny

MS100210

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km

1x LC duplex SM

Products

MS100210D


Produkt jest dostępny

MS100210D

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km, DDM, LC

1x LC duplex SM

Products

MS100210DX


Produkt jest dostępny

MS100210DX

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km, DDM, LC, -40..+85°C

1x LC duplex SM

Products

MS100211


Produkt jest dostępny

MS100211

SFP GbE Transceiver 1.25G SingleMode 1310nm, 25km, LC

1x LC duplex SM

Products

MS100221DXA


Produkt jest dostępny

MS100221DXA

SFP GbE WDM-Transceiver 1.25G SingleMode TX1310nm / RX1550nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM

Products

MS100221DXB


Produkt jest dostępny

MS100221DXB

SFP GbE WDM-Transceiver 1.25G SingleMode TX1550nm / RX1310nm, 10km, DDM, LC simplex, -40..+85°C

1x LC simplex SM
