Desktop 10 GbE Desktop Media Converter

Desktop 10 GbE Desktop Media Converter

Desktop 10 GbE Desktop Media Converter

  • Cost-efficient 10 Gigabit Ethernet media conversion
  • Bandwidths of 1G, 2.5G, 5G and 10G convertible from TP to fiber optic
  • Supports Jumbo Frames
  • Can be used in CWDM and DWDM applications
  • Compact desktop design with external power supply
  • SFP/SFP+ slot FO side for use with common FO cable types and applications
Szczegółowe informacje
Opis
Opis

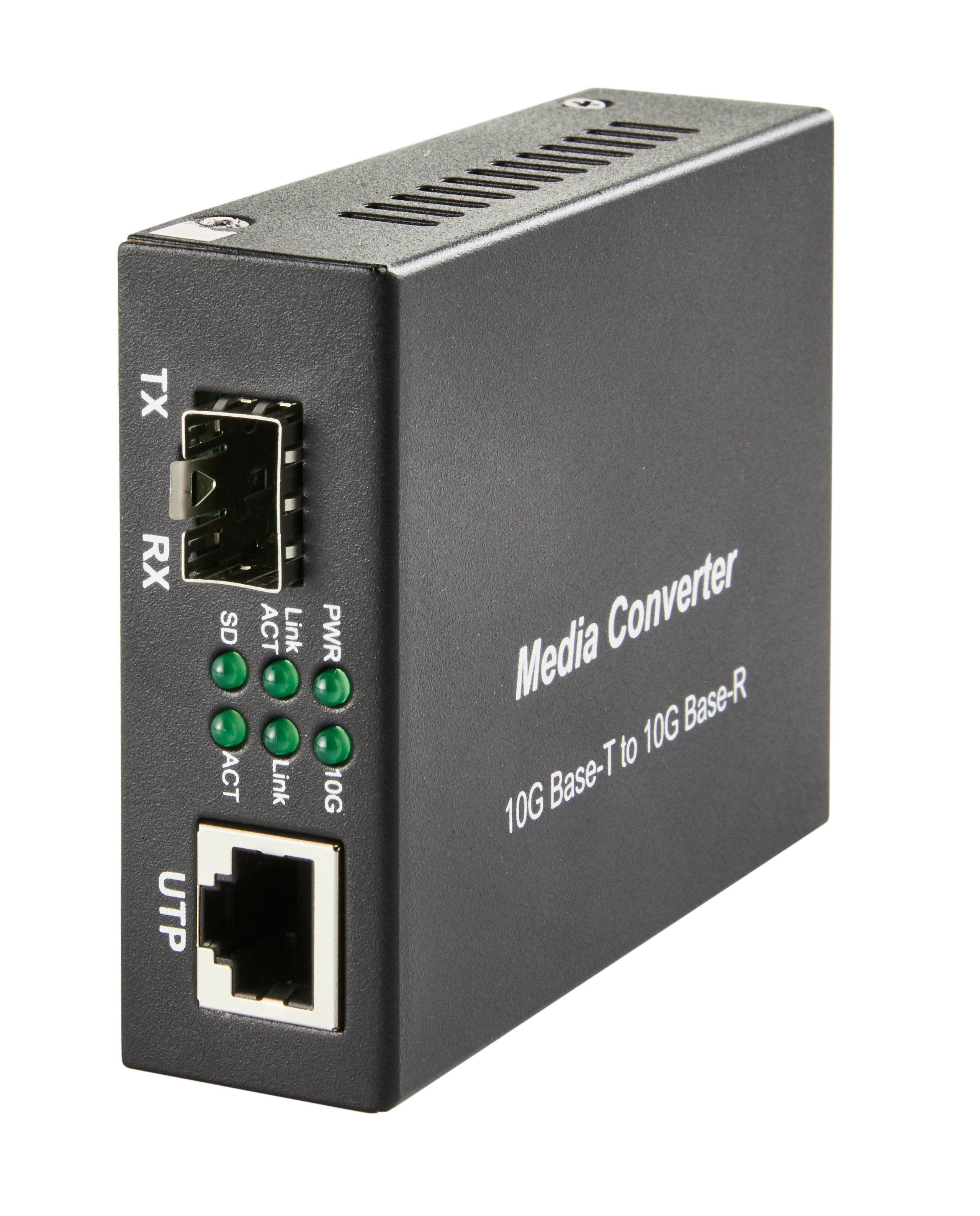

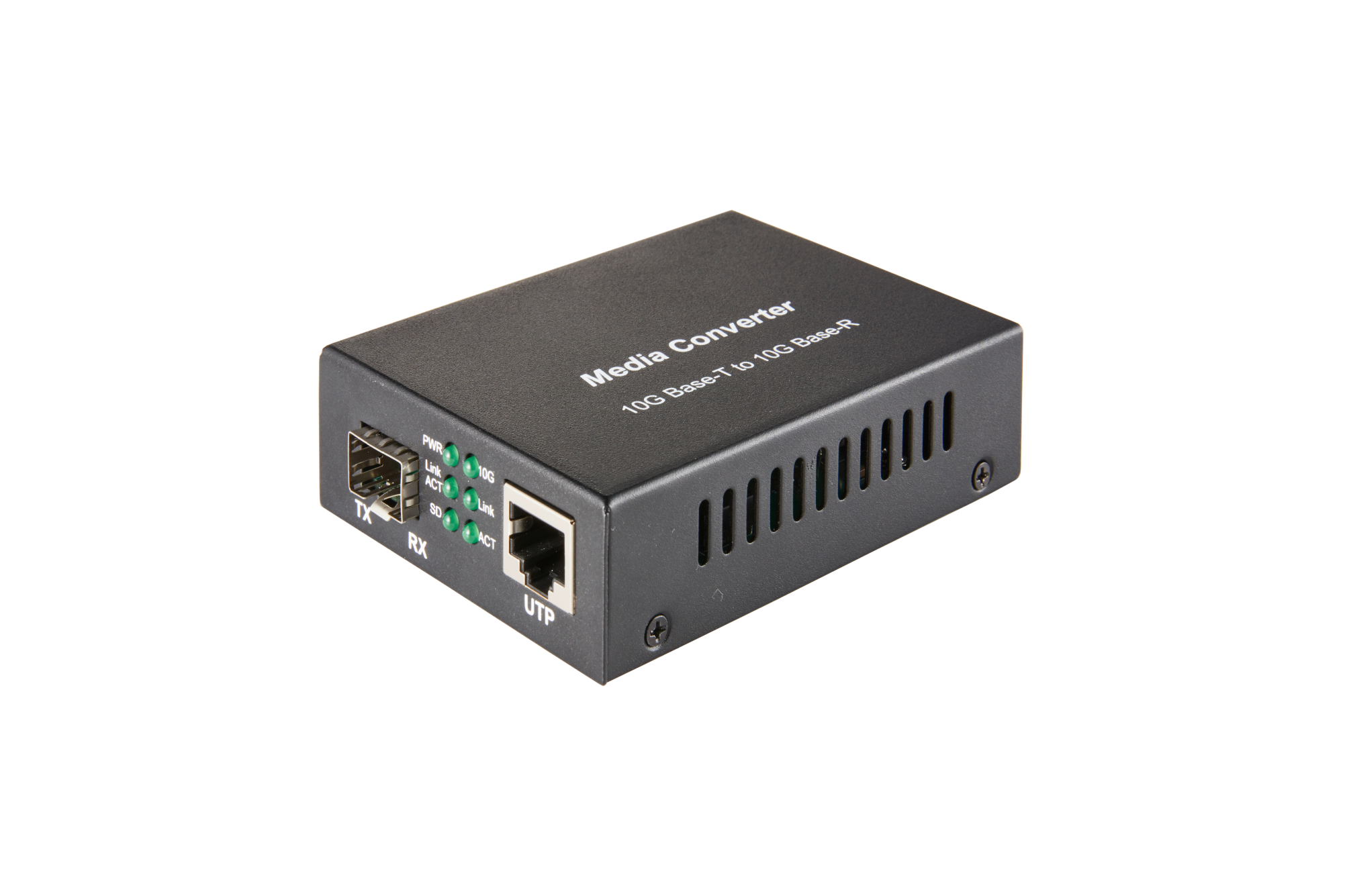

With the 10G Desktop Media Converter MICROSENS covers the product portfolio of media converters up to 10G Ethernet. This converter is used for the conversion from TP to FO and can support the following standards

- Gigabit Ethernet (1000Base-T / 1000Base-X)

- 2.5G Ethernet (2.5GBase-T / 2.5GBase-X)

- 5G Ethernet (5GBase-T / 5GBase-R)

- 10 Gigabit Ethernet (10G-Base-T / 10GBase-R)



The copper interface is designed in RJ-45 format, the media converter has an SFP or SFP+ slot on the fiber-optic side, which is equipped with a suitable SFP or SFP+ transceiver. This allows a cost-efficient connection and implementation in the multimode range, but also single mode up to xWDM.

A 230 V AC power plug is included in the scope of delivery, optionally the device can also be powered with power via USB (5V) using a suitable cable. A voltage input range of 5..12 V DC also provides the option of supplying the device with an existing 12 V DC voltage source.

Produkty
Produkty
Products

MS400289


Produkt jest dostępny

MS400289

10GbE Desktop Medienkonverter SFP+ 1x 1G/2.5G/5G/10GBase-X SFP+-Slot, 1x 1000/2.5G/5G/10GBase-T, ext. PS (110/230VAC)

1x RJ-45, 1x SFP+ Slot, 1x SV

Products

MS100700D


Produkt jest dostępny

MS100700D

SFP+ 10G Transceiver SR Multimode 850nm, DDM, LC

1x LC duplex MM

Products

MS100702D


Produkt jest dostępny

MS100702D

SFP+ 10G Transceiver LR SingleMode 1310nm, 10km, DDM, LC

1x LC duplex SM

Products

MS100200


Produkt jest dostępny

MS100200

SFP GbE Transceiver 1.25G Multimode 850nm, LC

1x LC duplex MM

Products

MS100210


Produkt jest dostępny

MS100210

SFP GbE Transceiver 1.25G SingleMode 1310nm, 10km

1x LC duplex SM
