Industrial DIN-Rail 24V Power Supply

  • Industrial power supply for highest reliability, efficiency and availability
  • DIN rail adapter and terminal blocks for easy mounting
  • Power classes from 24W up to 120W
  • Wide range input depending on version 85..264 VAC or 85..375 VDC
Bezpieczne pobieranie
Szczegółowe informacje
Opis
Opis

The industrial power supplies are designed for extremely demanding applications under harsh environmental conditions. They are optimally matched for operation with MICROSENS industrial devices (Entry Line / Profi Line / Ruggedized Micro Switch 24 VDC).

In addition to the standard features such as effective overvoltage protection or wide-range input for worldwide use, these power supplies offer additional technical optimizations. The design of the chassis increases the surface and leads together with the high efficiency to optimum heat dissipation. This ensures a long service life and reliability of the devices.

The power supplies are available in the 24, 60 and 120 W power classes.

The compact power supplies can be snapped directly onto DIN top-hat rails or mounted on the wall using a bracket included in the scope of delivery. Removable plug-in terminals simplify wiring.

Produkty
Produkty
Products

MS700440


Produkt jest dostępny

MS700440

DIN Rail mounting power supply 30Watt 24VDC/1.25A, input voltage 100-240VAC, 1x screw terminal

In: 3-polig, Out: 2-polig

Products

MS700420


Produkt jest dostępny

MS700420

Industrial DIN-Rail Netzteil 24VDC / 1A (24W) Input 85..264VAC/83..375VDC, Output 24..28VDC, -10..+70°C

In: 3-polig, Out: 2-polig

Products

MS700421


Produkt jest dostępny

MS700421

Industrial DIN-Rail Netzteil 24VDC / 2,5A (60W) Input 85..264VAC/83..375VDC, Output 24..28VDC, -10..+70°C

In: 3-polig, Out: 5-polig

Products

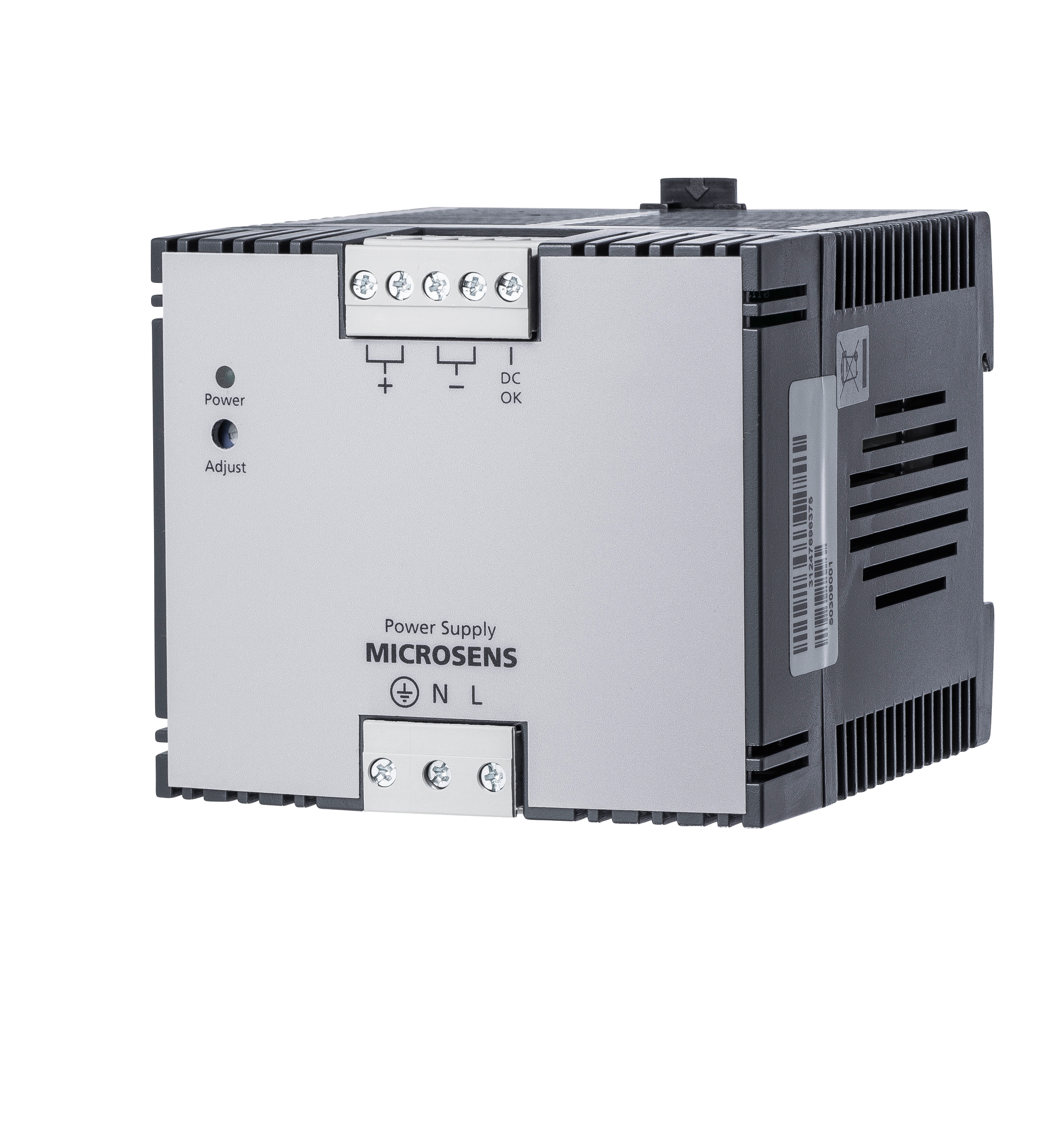

MS700422


Produkt jest dostępny

MS700422

Industrial DIN-Rail Netzteil 24VDC / 5A (120W) Input 85..264VAC/83..375VDC, Output 24..28VDC, -10..+70°C

In: 3-polig, Out: 5-polig
