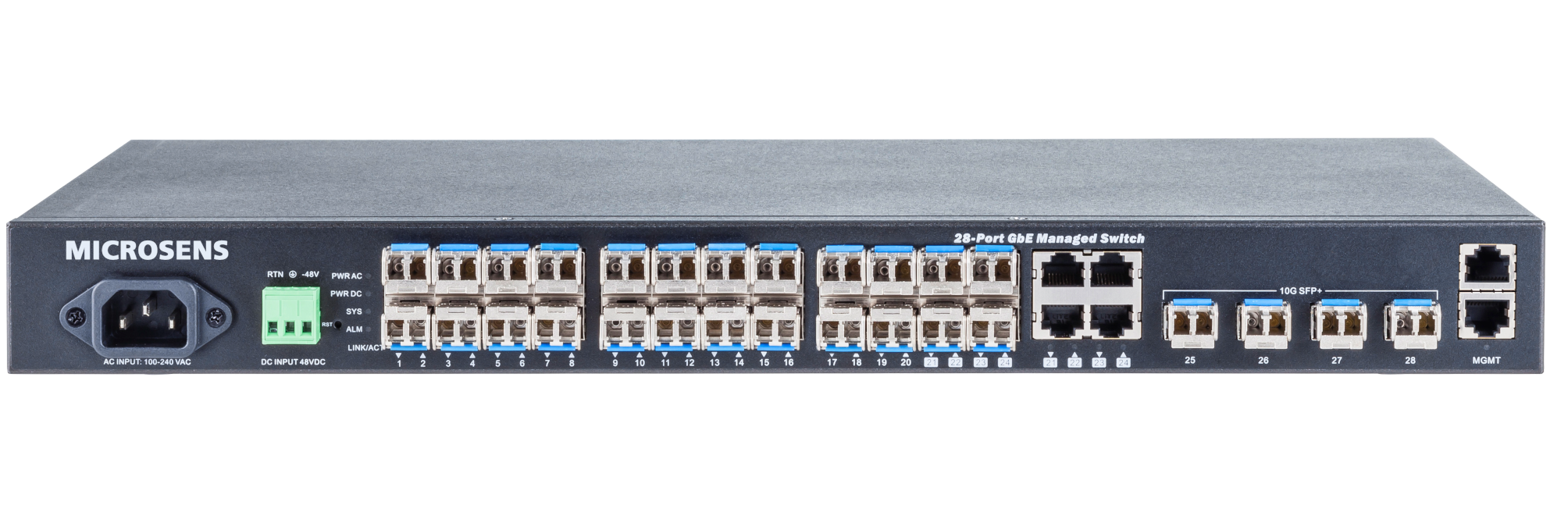

MS400863M
MS400863M

10G Multi Fiber Switches 19“ L2/L3

  • Powerful 28-port 10G L2+ multi-fiber switch with extensive management and security features
  • 28-port switch with 4x 1G/10G fiber optic SFP+ slots and 24x 100M/1G SFP slots, of which 4x 10/100/1000Base-T Combo
  • Dual input voltage 100..240 VAC and 24..48 VDC, redundantly usable
  • High security through SSH, HTTPS, SNMPv3 and Port Security 802.1x
  • Intuitive management via Web, SSH and SNMP interfaces
  • ideal price/performance ratio due to uncoded SFP slots in combination with high fiber optic port density
Téléchargements protégés
Informations détaillées
Description
Description

The MS400863M is an L2+ multi-fiber switch with a total of 28 fiber optic ports, of which up to 4 ports are designed as 10G uplink ports and a further 4 ports as so-called combo ports (fiber optic/TP). The power supply can be 230 VAC, 24..48 VDC or parallel (redundant).



The existing feature set (firmware) corresponds to the powerful hardware. The MS400863M supports common IEEE standards for setting up secure and powerful IP networks, particularly in the area of IT security.

Various standardized interfaces are available for management access for configuration or administration purposes

- CLI (sshv1 / sshv2)

- Web (http/https)

- SNMP (v1/v2c/v3)

- Serial interface RS-232 (Outband, designed as RJ-45)

It makes sense to use this switch primarily in the central access area as an efficient distribution component in FTTO infrastructures. The connection to the higher-level core area is performed efficiently with 10G Ethernet. It can also be used for aggregation in outdoor networks, such as video surveillance or WLAN illumination.

Powerful hardware, flexible application and cost-efficient: these are the features that describe the MS400863M simply and quickly.

Highlights

- flexible fiber optic connection through Dual Speed SFP (100/1000Base-X) and SFP+ (1000/10GBase-X)

- L3 Static Route Function

- IPv6 support

- Flexible and redundant power supply AC/DC

- Compact 1U design, all interfaces available on the front panel

- Extended operating temperature range from -20..+60°C

Produits
Produits
Products

MS400990M


Le produit est disponible

MS400990M

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

Products

MS400991M


Le produit est disponible

MS400991M

52-Port 10G Multi Fiber L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed L3, 48x 100/1000Base-X SFP-Slots, OOB-Port (RJ-45), int. 100~240VAC (C14), console port (RJ-45)

48x SFP-Slots, 4x SFP+ Slots, 1x Console RJ-45, 2x SV

Accessoires
Accessories

MS400990-AC


Le produit est disponible

MS400990-AC

Power module 230VAC for MS400990M, 100~240 VAC, 50/60 Hz, 60 W

fin de vie / non disponible
End of Life / Out of product range

MS400863M

Montrer l'alternative

Product reached his Life-Time

MS400863M

End of Life / Out of product range

28-Port 10 GbE LWL L2+ Switch 19" 1HE 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000X SFP-Slots, 4x Combo int. 110/230VAC (C14) + 24~48VDC red. RS-232 Port (DB9/RJ-45)

NIL --> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

End of Life / Out of product range

MS400860M

Montrer l'alternative

Product reached his Life-Time

MS400860M

End of Life / Out of product range

28-Port 10 GbE LWL Switch 19" 1HE 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000X SFP-Slots, 4x Combo int. 110/230VAC (C14) + 48VDC red. RS-232 Port (DB9/RJ-45)

EOL -> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

End of Life / Out of product range

MS400870M-1A

Montrer l'alternative

Product reached his Life-Time

MS400870M-1A

End of Life / Out of product range

26 Port Gigabit Ethernet Switch 24x 10/100/1000T RJ-45 oder Dual Speed 100/1000X SFP Combo-Ports, 2x 10/100/1000T oder 1000X SFP-Combo Port, SNMP/Web/Telnet-Management, int. 90-240 VAC Netzteil

EOL -> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

End of Life / Out of product range

MS400870M-1D

Montrer l'alternative

Product reached his Life-Time

MS400870M-1D

End of Life / Out of product range

26 Port Gigabit Ethernet Switch 24x 10/100/1000T RJ-45 oder Dual Speed 100/1000X SFP Combo-Ports, 2x 10/100/1000T oder 1000X SFP-Combo Port, SNMP/Web/Telnet-Management, int. 48 VDC Netzteil

EOL -> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

End of Life / Out of product range

MS400870M-2A

Montrer l'alternative

Product reached his Life-Time

MS400870M-2A

End of Life / Out of product range

26 Port Gigabit Ethernet Switch 24x 10/100/1000T RJ-45 oder Dual Speed 100/1000X SFP Combo-Ports, 2x 10/100/1000T oder 1000X SFP-Combo Port, SNMP/Web/Telnet-Management, 2x int. 90-240 VAC Netzteil (Redundanz)

EOL -> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV

End of Life / Out of product range

MS400870M-2D

Montrer l'alternative

Product reached his Life-Time

MS400870M-2D

End of Life / Out of product range

26 Port Gigabit Ethernet Switch 24x 10/100/1000T RJ-45 oder Dual Speed 100/1000X SFP Combo-Ports, 2x 10/100/1000T oder 1000X SFP-Combo Port, SNMP/Web/Telnet-Management, 2x int. 48 VDC Netzteil (Redundanz)

EOL -> MS400990M

Cacher l'alternative

MS400990M

Cacher l'alternative

Le produit est disponible

MS400990M

Cacher l'alternative

28-Port 10G Multi Fiber L2/L3 Switch 19", 4x 1/10GBase-X SFP+-Slots, managed, 24x 100/1000Base-X SFP-Slots, 8x Combo, int. 100~240VAC (C14), console port (RJ-45)

24x SFP-Slots, 4x SFP+ Slots, 8x RJ-45, 1x Console RJ-45, 1x SV
