Switch multifibra 10G 19" L2/L3

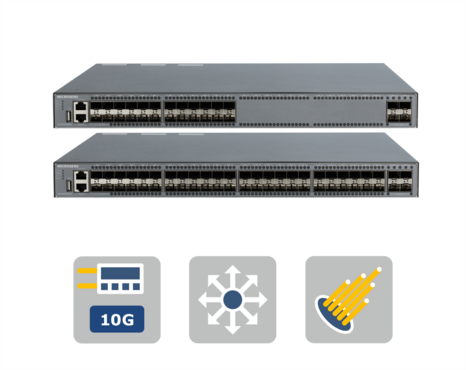

The MS400863M is an L2+ multi-fiber switch with a total of 28 fiber optic ports, of which up to 4 ports are designed as 10G uplink ports and a further 4 ports as so-called combo ports (fiber optic/TP). The power supply can be 230 VAC, 24..48 VDC or parallel (redundant).

The existing feature set (firmware) corresponds to the powerful hardware. The MS400863M supports common IEEE standards for setting up secure and powerful IP networks, particularly in the area of IT security.

Various standardized interfaces are available for management access for configuration or administration purposes

- CLI (sshv1 / sshv2)

- Web (http/https)

- SNMP (v1/v2c/v3)

- Serial interface RS-232 (Outband, designed as RJ-45)

It makes sense to use this switch primarily in the central access area as an efficient distribution component in FTTO infrastructures. The connection to the higher-level core area is performed efficiently with 10G Ethernet. It can also be used for aggregation in outdoor networks, such as video surveillance or WLAN illumination.

Powerful hardware, flexible application and cost-efficient: these are the features that describe the MS400863M simply and quickly.

Highlights

- flexible fiber optic connection through Dual Speed SFP (100/1000Base-X) and SFP+ (1000/10GBase-X)

- L3 Static Route Function

- IPv6 support

- Flexible and redundant power supply AC/DC

- Compact 1U design, all interfaces available on the front panel

- Extended operating temperature range from -20..+60°C
