MSP800 Single / Dual Bridgemodul

MSP800 Single / Dual Bridgemodul

MSP800 Single / Dual Bridgemodul

  • Insertion module for installation in MICROSENS Access chassis

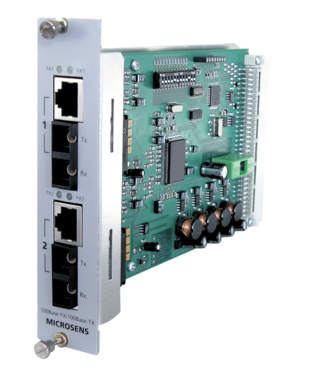

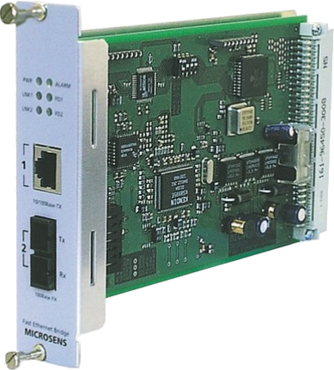

  • Available as single and dual converter with bridging function
  • Auto Negotiation 10/100Base-TX, Auto Crossover
  • Half or full duplex mode manually configurable
  • Multimode, single mode & special versions (Bidi, xWDM on request)
  • Can optionally be integrated into network management (SNMP)
Téléchargements protégés
Informations détaillées
Description
Description

The Fast Ethernet Bridge Modules (IEEE802.3u) used within the MSP800 platform are available in both single bridge (10/100Base-TX to 100Base-FX) and twin bridge designs (2x 10/100Base-TX to 2x 100Base-FX).



The integration of older equipment and existing Ethernet segments into fiber-based Fast Ethernet networks is often a problem. With a copper/fiber bridge a media conversion can be realized very easily, but a speed adjustment is not possible. The two-port bridge, which carries out a corresponding speed adjustment in addition to the media conversion solves this problem.

The data rates 10 and 100 MBit/s are adjusted. Additionally, a combination of the half and full duplex operating modes is possible. The existing length restrictions for Ethernet segments (5 km) and Fast Ethernet (412 m) in half-duplex mode can be broken in full-duplex mode. This allows the expansion of hub-based networks that only operate in half-duplex.

In addition to multimode versions, MICROSENS offers single mode bridges with adapted optical parameters. This allows wide segment couplings from 15 km in the basic version up to 125 km in the extended version. The focus of the application of these single mode versions is mainly Fiber to the Home (FTTH) projects. Internet services, video on demand and VoIP applications are then available to the end user via the familiar 10/100Base-TX copper connection.

The copper port is configured either automatically via the auto-negotiation protocol (10/100Base-TX) or manually via integrated configuration switches. The fiber port is configured manually for half or full duplex operation.

The Auto Crossing function on the twisted pair side makes it unnecessary to distinguish between crossed and 1:1 patch cables. The bridge automatically detects the assignment and adjusts itself accordingly.

Produits
Produits
Products

MS416206M-V2


Le produit est disponible

MS416206M-V2

MSP800 Fast Ethernet Bridgemodul managed 10/100Base-TX, 100Base-FX, 1310nm SingleMode, SC duplex 15km

1x RJ-45, 1x SC duplex SM

Products

MS416206MA-V2


Le produit est disponible

MS416206MA-V2

MSP800 Fast Ethernet WDM-Bridgemodul managed 10/100Base-TX, 100Base-FX, TX1310nm RX1550nm, SingleMode SC simplex 15km

1x RJ-45, 1x SC simplex SM

Products

MS416206MB-V2


Le produit est disponible

MS416206MB-V2

MSP800 Fast Ethernet WDM-Bridgemodul managed 10/100Base-TX, 100Base-FX, TX1550nm RX1310nm, SingleMode SC simplex 15km

1x RJ-45, 1x SC simplex SM

Products

MS416207M-V2


Le produit est disponible

MS416207M-V2

MSP800 Fast Ethernet Bridgemodul managed 10/100Base-TX, 100Base-FX, 1310nm SingleMode, ST duplex 15km

1x RJ-45, 1x ST duplex SM

Products

MS416208M-V2


Le produit est disponible

MS416208M-V2

MSP800 Fast Ethernet Bridgemodul managed 10/100Base-TX, 100Base-FX, 1310nm SingleMode, SC duplex 40km

1x RJ-45, 1x SC duplex SM

Products

MS416234M-V2


Le produit est disponible

MS416234M-V2

MSP800 Fast Ethernet Doppel-Bridgemodul managed 2x 10/100Base-TX, 2x 100Base-FX, 1310nm SingleMode ST duplex 15km

2x RJ-45, 2x ST duplex SM

Products

MS416235M-V2


Le produit est disponible

MS416235M-V2

MSP800 Fast Ethernet Doppel-Bridgemodul managed 2x 10/100Base-TX, 2x 100Base-FX, 1310nm SingleMode SC duplex 15km

2x RJ-45, 2x SC duplex SM

Products

MS416236M-V2


Le produit est disponible

MS416236M-V2

MSP800 Fast Ethernet Doppel-Bridgemodul managed 2x 10/100Base-TX, 2x 100Base-FX, 1310nm SingleMode SC duplex 40km

2x RJ-45, 2x SC duplex SM

fin de vie / non disponible
End of Life / Out of product range

MS400193

Montrer l'alternative

Product reached his Life-Time

MS400193

End of Life / Out of product range

GbE Desktop Konverter SM 1x 1000LX SC/SM (50km), 1x 1000T, ext. PS (110/230VAC)

1x RJ-45, 1x SC duplex SM, 1x SV

Cacher l'alternative

MS400249

Cacher l'alternative

Le produit est disponible

MS400249

Cacher l'alternative

GbE Desktop Bridging Konverter SFP 1x 1000X SFP-Slot, 1x 10/100/1000T, ext. PS (110/230VAC)

1x RJ-45, 1x SFP Slot, 1x SV
