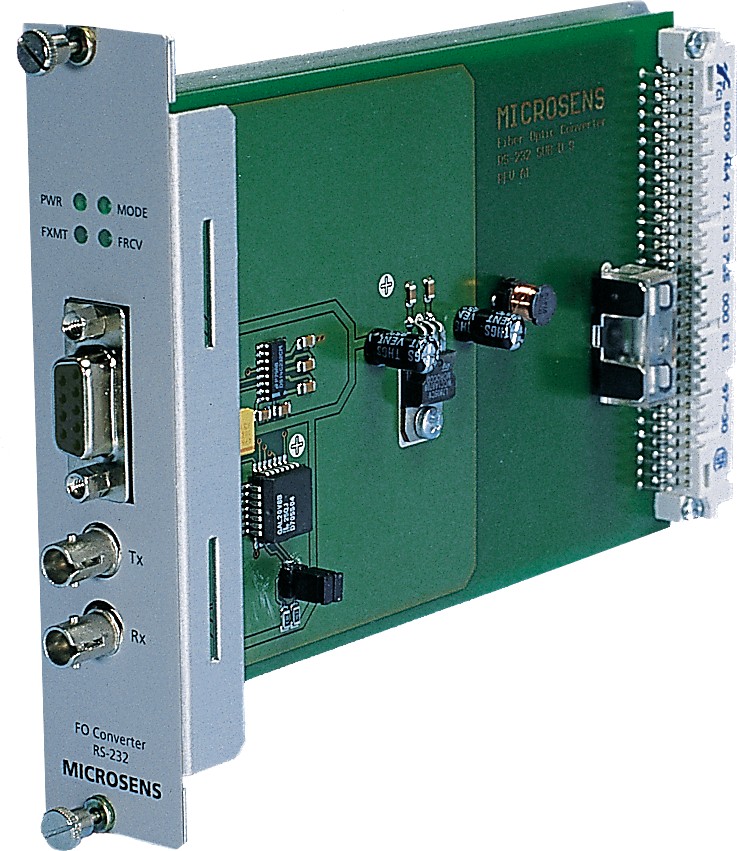

MSP800 Serial converter module

MSP800 Serial converter module

MSP800 Serial converter module

  • Transparent transmission of an RS-232/422/485 interface to duplex fiber optics
  • Insertion module for installation in MICROSENS Access chassis
  • Multimode, singlemode and special versions (Bidi, xWDM on request)
  • Optimized for use in pairs
Téléchargements protégés
Informations détaillées
Description
Description

For the transmission of serial protocols (RS-232 / V.24, RS-422 / V.11, RS-485) via a fiber optic link, MICROSENS offers special insertion modules for the MSP800 platform.



The serial protocols are used to couple devices, switchgear and machine controls with standardized serial interfaces. Depending on the protocol, the MICROSENS media converter is used in pairs and transmits the signals via fiber optics. Distances of up to 120km can be achieved without a repeater using a powerful single-mode optical system.

Special converters for RS-232, RS-422 and RS-485 interfaces are available. The RS-485 transmitter is compatible with various industrial fieldbus systems such as Profibus, Bitbus, Interbus.

The conversion is transparent, this means the data rate to be transmitted doesn´t have to be adapted.

The converter is always used in pairs and can be paired with the converters from the Profi Line series. This allows a classic central/decentral connection in star-shaped network topologies.

Produits
Produits
Products

MS415012


Le produit est disponible

MS415012

MSP800 Serieller Umsetzer RS-232/LWL 1x RS232 (SUBD9), 1x LWL 1310nm Multimode ST duplex

1x ST duplex MM, 1x SUBD9

Products

MS415015


Le produit est disponible

MS415015

MSP800 Serieller Umsetzer RS-232/LWL 1x RS232 (SUBD9), 1x LWL 1310nm SingleMode ST duplex 15km

1x ST duplex SM, 1x SUBD9

Products

MS415016


Le produit est disponible

MS415016

MSP800 Serieller Umsetzer RS-232/LWL 1x RS232 (SUBD9), 1x LWL 1310nm SingleMode SC duplex 40km

1x SC duplex SM, 1x SUBD9

Products

MS415017


Le produit est disponible

MS415017

MSP800 Serieller Umsetzer RS-232/LWL 1x RS232 (SUBD9), 1x LWL 1310nm SingleMode SC duplex 15km

1x SC duplex SM, 1x SUBD9

Products

MS415018


Le produit est disponible

MS415018

MSP800 Serieller Umsetzer RS-232/LWL 1x RS232 (SUBD9), 1x LWL 1310nm SingleMode ST duplex 40km

1x ST duplex SM, 1x SUBD9

Products

MS415025


Le produit est disponible

MS415025

MSP800 Serieller Umsetzer RS-232/LWL 1x RS422 (SUBD9), 1x LWL 1310nm SingleMode ST duplex 15km

1x ST duplex SM
1x SUBD9

Products

MS415026


Le produit est disponible

MS415026

MSP800 Serieller Umsetzer RS-422/LWL 1x RS422 (SUBD9), 1x LWL 1310nm SingleMode SC duplex 40km

1x SC duplex SM, 1x SUBD9

Products

MS415027


Le produit est disponible

MS415027

MSP800 Serieller Umsetzer RS-422/LWL 1x RS422 (SUBD9), 1x LWL 1310nm SingleMode SC duplex 15km

1x SC duplex SM, 1x SUBD9

Products

MS415028


Le produit est disponible

MS415028

MSP800 Serieller Umsetzer RS-422/LWL 1x RS422 (SUBD9), 1x LWL 1310nm SingleMode ST duplex 40km

1x ST duplex SM
1x SUBD9
