CWDM Multiplexer

CWDM Multiplexer

  • Cost-optimized design for mounting in 19" racks
  • 8 or 18 channels on one transmission path (according to ITU...)
  • Passive CWDM multiplexer and demultiplexer in one package
  • Suitable for all data rates
  • Optimized for bidirectional single-fiber use
Télécharger (download)
Informations détaillées
Description
Description

Standalone passive multiplexers are often used within xWDM systems to avoid the use of passive components in active module slots in chassis.



With the CWDM multiplexers MICROSENS offers cost-efficient solutions to extend active CWDM systems with multiplexers, but also to enable passive CWDM solutions (CWDM transceiver is installed directly in the upstream switch).

The CWDM channels are standardized according to ITU-T G.694.2.This means MICROSENS multiplexers are compatible with other CWDM systems and standardized CWDM transceivers.

MICROSENS offers two CWDM multiplexer versions, whereby multiplexing and demultiplexing are always implemented within the components:

- 8-channel CWDM multiplexer (1470 - 1610nm, 20 nm channel spacing)
- 18-channel CWDM multiplexer (1270 - 1610nm, 20 nm channel spacing)

Both versions are 19", do not require a power supply (MICROSENS definition for "passive device") and are completely protocol transparent. The CWDM multiplexers also have no limits with regard to the data rate to be transmitted; the limits are determined by the active technology and the fiber quality of the transmission path.

When using the 18-channel CWDM multiplexer, it must be ensured that the frequencies of 1270nm - 1450nm have an increased attenuation budget. This is due to the physical conditions. This should be taken into account in CWDM planning.



Produits
Produits
Products

MS419860-33


Le produit est disponible

MS419860-33

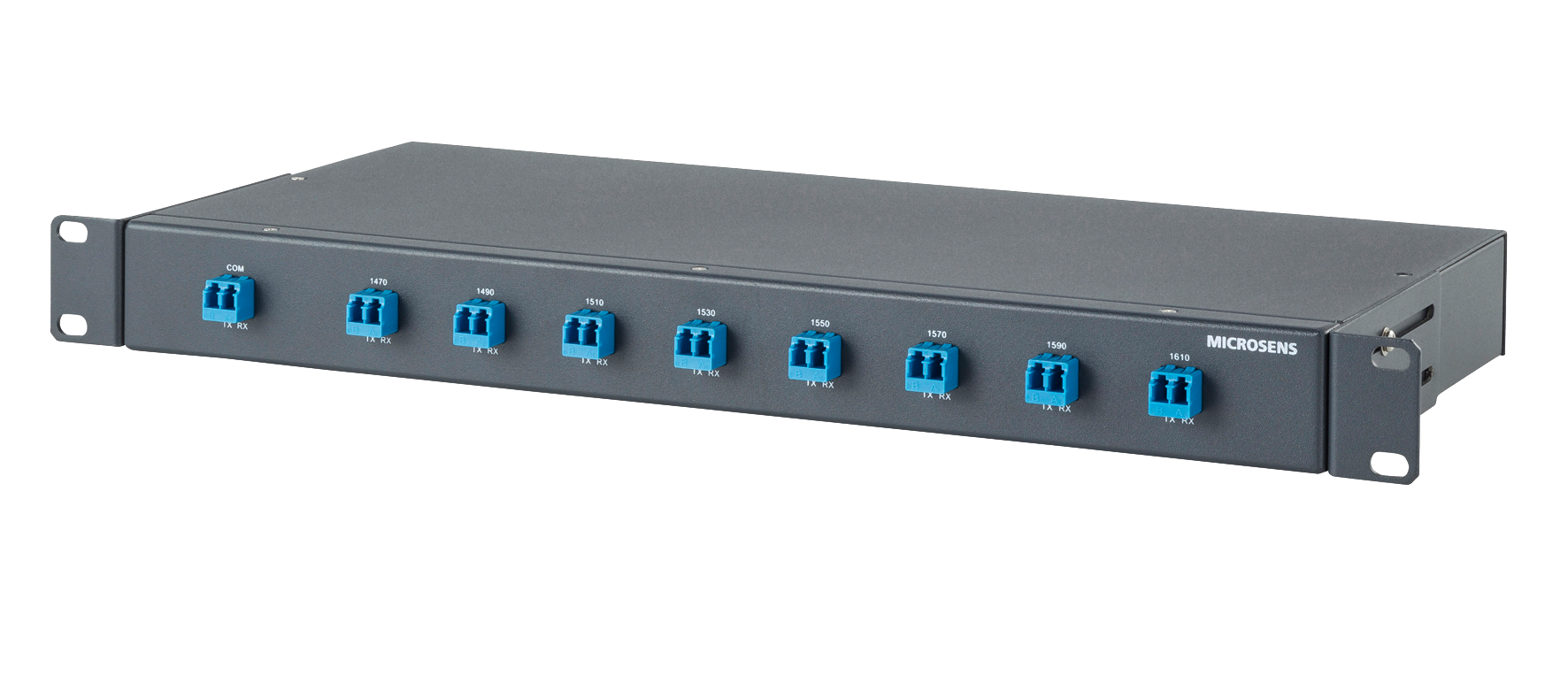

8 Chan. MUX/DEMUX CWDM 1470-1610n,19"1U Local:8x LC/PC dplx, Line:1x LC/PC dplx

9x LC duplex SM ww

Products

MS419863-33


Le produit est disponible

MS419863-33

18 Chan. MUX/DEMUX CWDM 1270..1610nm ,19"1U Local: 18x LC/PC duplex, Line:1x LC/PC duplex

19x LC duplex SM ww

fin de vie / non disponible
End of Life / Out of product range

MS419860-22

Montrer l'alternative

Product reached his Life-Time

MS419860-22

End of Life / Out of product range

8 Chan. MUX/DEMUX CWDM 1470-1610n,19"1U Local:8x SCPC dplx, Line:1x SCAPCdplx

EOL -> MS419860-33

Cacher l'alternative

MS419860-33

Cacher l'alternative

Le produit est disponible

MS419860-33

Cacher l'alternative

8 Chan. MUX/DEMUX CWDM 1470-1610n,19"1U Local:8x LC/PC dplx, Line:1x LC/PC dplx

9x LC duplex SM ww
