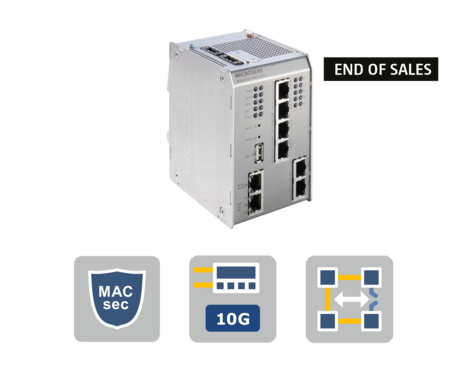

9-Port 10G Industrial Profi Line X Switch MACsec

9-Port 10G Industrial Profi Line X Switch MACsec

9-Port 10G Industrial Profi Line X Switch MACsec

  • MACsec (IEEE 802.1AE) - GCM-AES encrypted 10G LAN communication
  • 10G uplinks (IEEE 802.3ae) - 2 x 1/10G uplink ports with SFP+
  • Network ring redundancy - Feature set for fail-safe redundancy topologies
  • IT security - Feature set for high level of IT security
  • Extended operating temperature range - Ambient temperature range -40°..+75°C
  • Industrial fanless design - Easy to maintain, no noise emission for use in the workstation area
Télécharger (download)
Téléchargements protégés
Informations détaillées
Description
Description

With the new Industrial PLX Switch, the Profi Line range from MICROSENS has been extended in terms of performance and security. The design and hardware is based on the Profi Line G6 series. The PLX Switch also offers the familiar features

- Extended operating temperature range -40..+75°C

- Compact stainless steel housing with integrated DIN rail adapter

- Redundancy for power and data

- Fanless

- Two alarm inputs and outputs each

- Profi Line Generation 6 functionalities

The PLX switch also provides 2x 1/10G Base-X SFP+ ports (according to IEEE 802.3ae) for setting up redundant ring topologies with a bandwidth of up to 10G Ethernet.

The uplink ports can be operated with encryption to ensure secure communication between the devices within the LAN. Security plays an increasingly important role, especially when it comes to communication via fiber as these communication paths are often routed in or through public areas. The standardized MACsec function (media access control security) according to the IEEE 802.1AE standard, which has been well-proven in Layer2, ensures this.

Locally, 7x 10/100/1000Base-T ports are available for connecting LAN components. One of the LAN ports is designed as a PD port in order to operate the component without power supply and only powered via PoE/PoE+, if required.

The switch operating system, firmware and configuration data are stored on an SD card. If a switch needs to be replaced, the existing SD card is simply inserted into the new device, which automatically takes over all settings.

Additionally MICROSENS offers a 10G module for expanding the generation 6 PLM switch.

Produits
Produits
Products

MS652615M


Le produit est disponible

MS652615M

9-Pt. 10GbE Industrial PLX Switch MACsec, 2x 1/10GBase-X SFP+ Slots, 2x 24..57VDC, 7x 10/100/1000T (1x PD+), DIN-Rail, managed, USB, SD-Karte incl., 2x I/O, RS-232 Port (RJ-45), -40..75°C

Products

MS100700DX


Le produit est disponible

MS100700DX

SFP+ 10G Transceiver Multimode 850nm, DDM, LC -40..+85°C

1x LC duplex MM

Products

MS100702DX


Le produit est disponible

MS100702DX

SFP+ 10G Transceiver LR SingleMode 1310nm, 10km, DDM, LC, -40..+85°C

1x LC duplex SM

Products

MS100702DXA


Le produit est disponible

MS100702DXA

SFP+ 10G WDM-Transceiver Bidi-LR, SingleMode TX1270nm / RX1330nm, 10km, DDM, LC simplex, -40..+85°C

Products

MS100702DXB


Le produit est disponible

MS100702DXB

SFP+ 10G WDM-Transceiver Bidi-LR, SingleMode TX1330nm / RX1270nm, 10km, DDM, LC simplex, -40..+85°C

Products

MS700440


Le produit est disponible

MS700440

DIN Rail mounting power supply 30Watt 24VDC/1.25A, input voltage 100-240VAC, 1x screw terminal

In: 3-polig, Out: 2-polig
