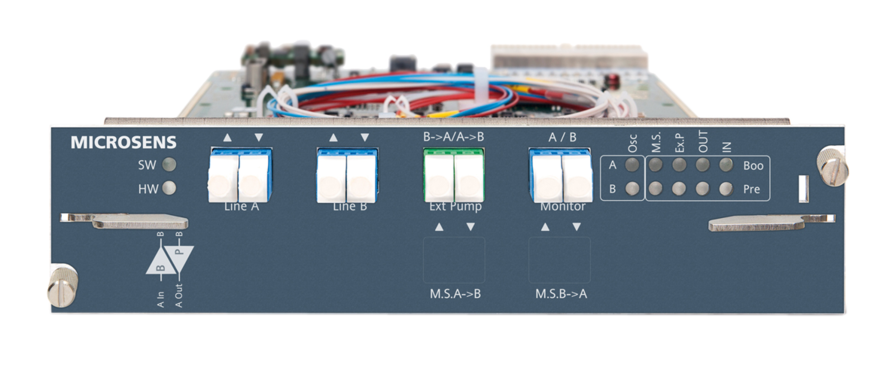

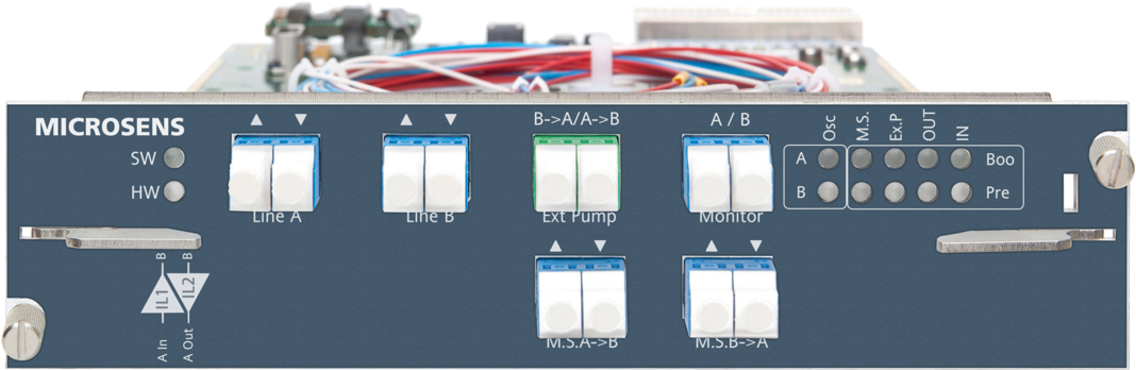

MSP3000 Amplifier

  • Integrated optical monitoring channel (OSC) available
  • Automatic fiber aging compensation
  • Amplification of multiple wavelengths over multiple 100km
  • Amplification in C- and L-Band by RAMAN-Amplifier
  • Bridging distances up to 450km without using inline amplifiers with ROPA (Remote Optical Pump Amplification) amplification
  • Bidirectional amplification (TX and RX fibers are amplified)



Télécharger (download)
Informations détaillées
Description
Description

Optical amplifiers increase the range of optical transmission systems. The amplification takes place on a purely optical level and without the signal having to be converted into an electrical signal in between. Depending on the physical method of amplification, there are 2 amplifier types in the MICROSENS portfolio:



in erbium-doped fiber amplifiers (EDFA amplifiers), the optical fiber is doped with erbium over a certain length. This fiber section is then optically pumped with the help of a semiconductor laser. The EDFA amplification method only works in the C-band, which is why CWDM signals cannot be amplified.

The MICROSENS EDFA amplifiers take the concept of variable gain into account. The basic family can be used as booster (amplification at the starting point), as pre-amp (amplification at the end point) and as inline amplifier (amplification on the line). The entire MICROSENS EDFA amplifier family can be configured either according to the principle of "constant output power", so that the output signal always has the same amount, or according to the principle of "constant gain", so that the amplification amount remains unchanged. Each amplifier has an internal optical supervisory channel (OSC) at 1510nm, which is necessary for the manageability of the amplifiers. The output power values of the respective amplifiers are also transmitted via this channel, which are used to automatically compensate for fiber aging. The EDFA amplifiers are also available for use in extreme conditions (extended operating temperature range from -40 to +65°C), with these versions additional air conditioning at the direct place of use become obsolete.

Raman amplifiers use so-called Raman dispersion. When an optical pump wave (high intensity) is irradiated, the photons are scattered at the silicon dioxide molecules in quartz glass fibers. A part of the energy is converted into phonons and the rest is scattered as photons of lower energy. This process initially takes place spontaneously, but can also be stimulated by the signal wave to be amplified. This is called stimulated Raman scattering. The advantages of Raman amplification are that, in addition to the C-band, it can also be used in the L-band and that, compared to EDFA amplification, it produces a better signal-to-noise ratio (OSNR) during amplification. This is of particular importance when multiple amplification is used to convert very long distances.

The MICROSENS RAMAN amplifiers are designed for long distances, so that intermediate stations can be dispensed with. With the MICROSENS RAMAN amplifier, particularly large output power values can be achieved, whereby the signal-to-noise ratio is very favorable.

The portfolio is completed by Remote Optical Power Amplification (ROPA) systems, with which distances of up to 450 km can be realized (with savings on active inline components). The basic product of this solution is the absolutely passive Remote Optical Amplifier (ROA), which is spliced into the fiber along the line and fed via the active Remote Amplifier Pump (RAP) installed at the terminal ends.

Produits
Produits
Products

MS430846MX


Le produit est disponible

MS430846MX

Variable Gain Line Amplifier +32dBm (down to 18dB), +17dBm output power for WDM application with 1510 OSC A&D and 2 external pump input for 20 & 23dBm upgrade, Extended Temperature range

Products

MS430848M-17


Le produit est disponible

MS430848M-17

Variable gain Optical Line Amplifier 32 dB (can be reduced till 18dB) Unit, +17dBm output power for WDM application with one external pump input for 20dBm upgrade. Includes 1510nm optical supervisory channel.

Products

MS430848M-17-SF


Le produit est disponible

MS430848M-17-SF

Variable gain Optical Line Amplifier 32 dB (can be reduced till 18dB) Unit, + 17dBm output power for WDM applications. Compatibel with single Fiber configuration. Includes 1510 and 1590 optical supervisory channel.

Products

MS430848M-20


Le produit est disponible

MS430848M-20

Variable gain Optical Line Amplifier 32 dB (can be reduced till 18dB) Unit, + 20dBm output power for WDM application with one external pump input for 23 dBm upgrade. Includes 1510nm optical supervisory channel.

Products

MS430849M-17


Le produit est disponible

MS430849M-17

Variable gain Optical Booster 18 dB (can be reduced till 10 dB)&variable gain pre-amplifier 32 dB (can be reduced till 18 dB) Unit, + 17dBm output power for WDM application with one external pump input for 20 dBm upgrade. Includes 1510nm optical supervisory channel.

Products

MS430849M-17-BR


Le produit est disponible

MS430849M-17-BR

Variable gain Optical Booster 18 dB (can be reduced till 10 dB)&variable gain pre-amplifier 32 dB (can be reduced till 18 dB) Unit, + 17dBm output power for WDM application. Compatibel with Single Fiber configuration. Includes 1510 (add) and 1590 (drop) nm optical supervisory channel.

Products

MS430849M-17-RB


Le produit est disponible

MS430849M-17-RB

Variable gain Optical Booster 18 dB (can be reduced till 10 dB)&variable gain pre-amplifier 32 dB (can be reduced till 18 dB) Unit, + 17dBm output power for WDM application. Compatibel with Single Fiber configuration. Includes 1590 (add) and 1510 (drop) nm optical supervisory channel.

Products

MS430849M-20


Le produit est disponible

MS430849M-20

Variable gain Optical Booster 18 dB (can be reduced till 10 dB)  &variable gain pre-amplifier 32 dB (can be reduced till 18 dB) Unit, + 20 dBm output power for WDM application with one external pump input for 23 dBm upgrade. Includes 1510nm optical supervisory channel.

Products

MS430865M


Le produit est disponible

MS430865M

Optical Line Amplifier 23 dB Unit +17dBm  for WDM application
