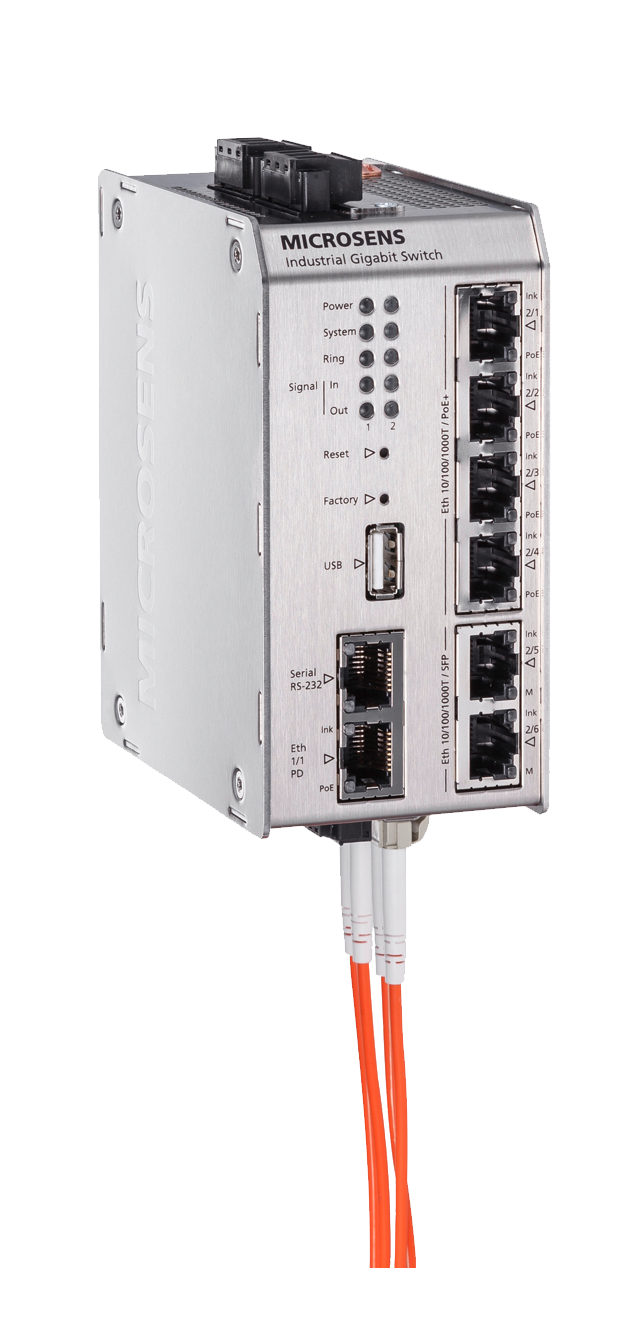

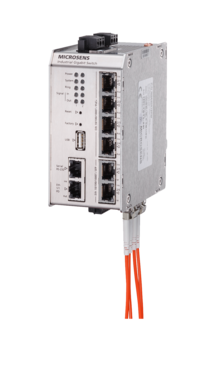

Switch industrial Profi Line+ PoE+ de 7 puertos GbE

Rendimiento Gigabit completo con Ethernet de bajo consumo, 7 GBE-, incluidos 4 PoE+ y 2 puertos combinados de fibra óptica
Power-over-Ethernet+ (802.3at) en los 4 puertos, 30 W por puerto
Gestión intuitiva vía Web, SSH, interfaz SNMP y software MICROSENS NMP

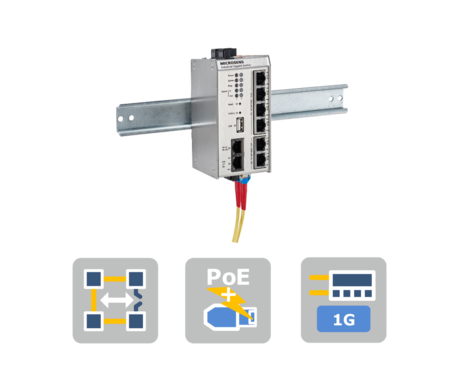

Carcasa VA robusta, compacta y sin ventilador con adaptador para carril DIN integrado, rango de temperatura de funcionamiento ampliado de -40°..+75°C
Alta seguridad mediante SSH, HTTPS, SNMPv3, Port Security 802.1x y compatibilidad total con RADIUS NAC
Redundante en alimentación y datos, a prueba de fallos gracias a la función de anillo MICROSENS con el menor tiempo de recuperación

Download

Data sheet

FW-Features

WP_Decentralized networks

WP- Secure building networks

FTTO Redundancy concepts

Revit file (rfa) MS650919PM

Secure Download

Firmware G6 v10.8.2

Firmware G6 v10.8.1

Visio ProfiLinePlus

microSCRIPTING-Guide_G6_v33_EN

Detail information

Description

The new Profi Line+ switch offers seven Gigabit ports with extremely compact dimensions. Performance and security have the highest priority, both in terms of network and access security as well as the individual switch functions themselves.

This makes the switch ideal for high-availability areas such as industrial automation, traffic information and control systems and power engineering. Applications such as wireless LAN and IP video surveillance benefit from the integrated power supply for the end devices with PoE+ according to IEEE 803.3at. The switch provides up to 30 W per port, on four 10/100/1000T connections.

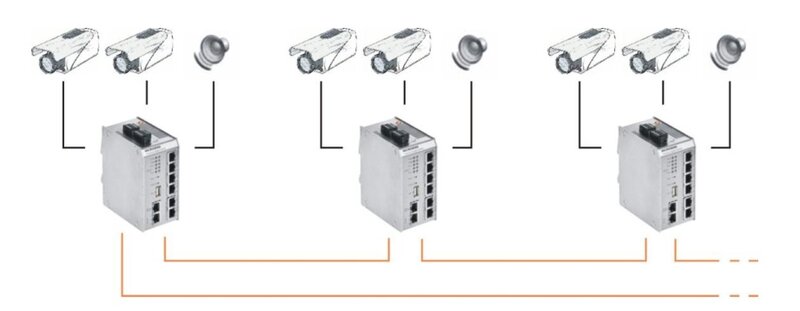

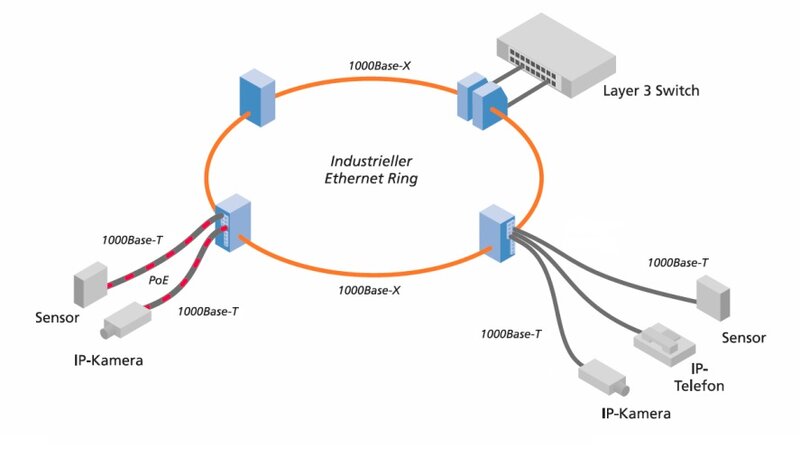

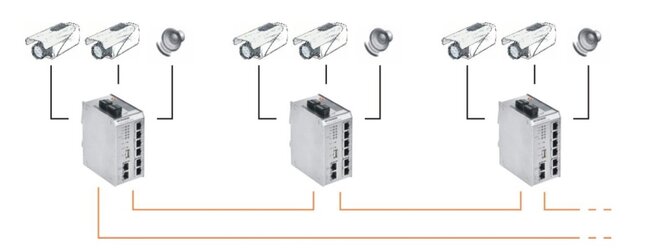

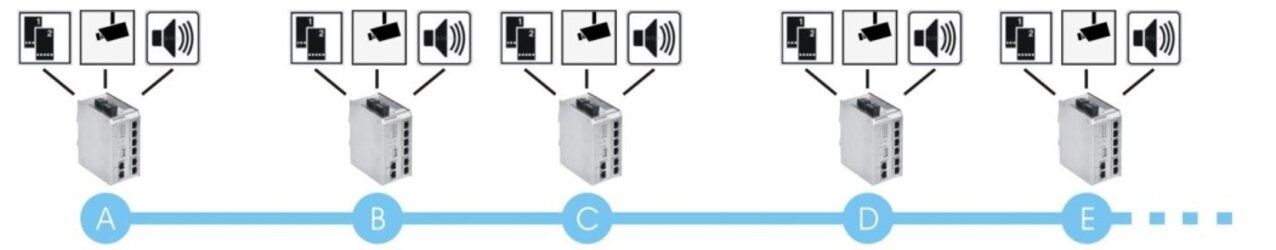

The switch has two GBE combo ports with 10/100/1000T or 100/1000X SFP slots. This allows a redundant uplink to be set up either via copper cable or fibre optic cables. In the event of a line interruption, the ring protocol ensures uninterrupted availability. Via the RJ-45 uplink port, the switch itself can be supplied as a powered device via Power-over-Ethernet, which ensures increased availability in the event of a power failure.

Sensors and actuators can be integrated via the switch's two I/O ports or the switch can be connected to an existing alarm solution.

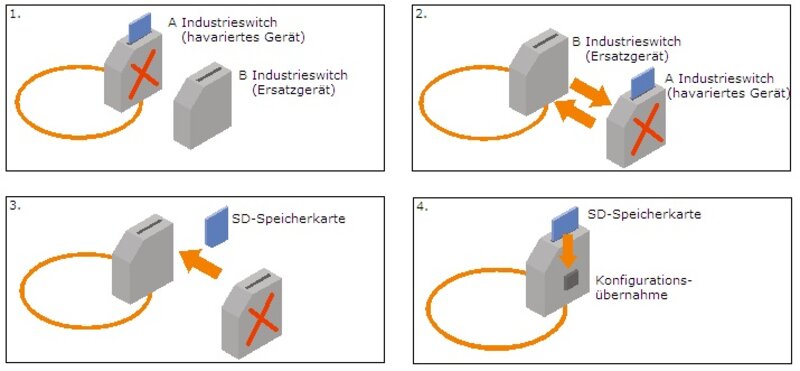

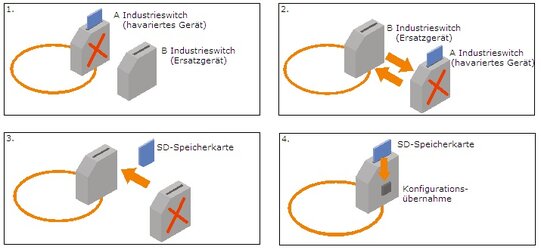

Switch operating system, firmware and configuration data are stored on an SD card. Should a switch have to be replaced, the existing SD card is simply inserted into the new device, which automatically takes over all settings.
