Switch modular de línea Profi industrial PoE+ de 13 puertos GbE

Switch modular de línea Profi industrial PoE+ de 13 puertos GbE

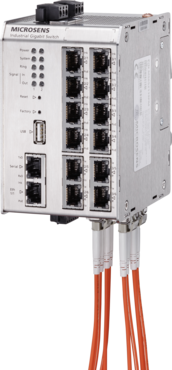

Profiline Modular base module
Profiline Modular base module

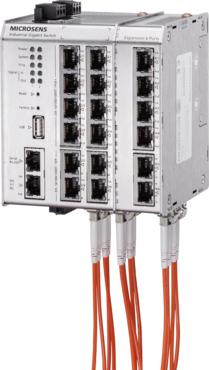

modular extension to 19 Ports
modular extension to 19 Ports

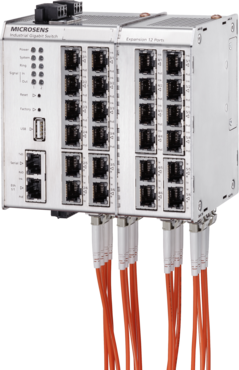

modular extension to 25 Ports
modular extension to 25 Ports

Switch modular de línea Profi industrial PoE+ de 13 puertos GbE

  • Performance Gigabit completo con Ethernet de bajo consumo, ampliable a 25 GbE, incluidos 16 puertos PoE+ y 8 puertos combinados de fibra óptica
  • Power-over-Ethernet+ (802.3at) en los 8 puertos, 30 W por puerto, versión especial con un total de 16x PoE+ (480W) disponible
  • Gestión intuitiva vía Web, SSH, interfaz SNMP y software MICROSENS NMP
  • Carcasa VA robusta, compacta y sin ventilador con adaptador para carril DIN integrado, rango de temperatura de funcionamiento ampliado de -40°..+75°C
  • Alta seguridad mediante SSH, HTTPS, SNMPv3, Port Security 802.1x y compatibilidad total con RADIUS NACPv3, Port Security 802.1x and full RADIUS NAC compatibility

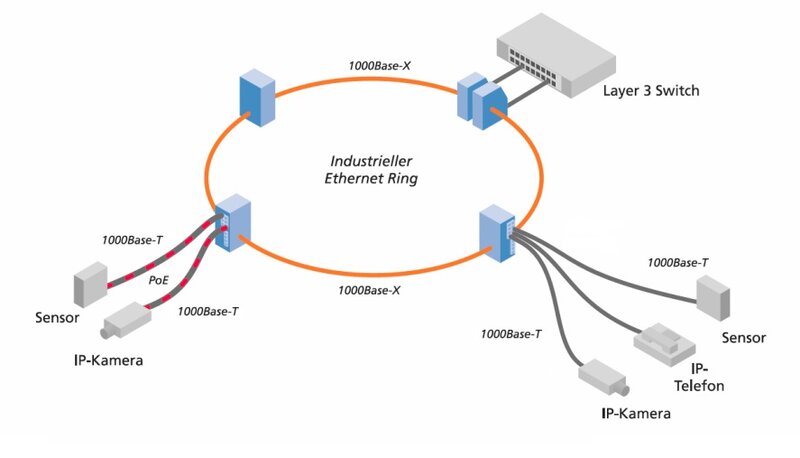

  • Redundante en alimentación y datos, a prueba de fallos gracias a la función de anillo MICROSENS con el menor tiempo de recuperación
Secure Download
Detail information
Description
Description

The new Profi Line Modular Switches from MICROSENS offer highest performance and flexibility in the smallest space.



The modular design of the Profi Line Modular Switch enables expansions according to your requirements, which limits initial investments to a minimum.

The switch base module offers thirteen Gigabit ports, four of which can be upgraded as combo ports with SFP modules to fiber optic connections.

Despite its space-saving design, it has two alarm inputs and two alarm outputs each. To be used for example for cabinet monitoring or sensor/actuator integration. The copper ports offer PoE/PoE. These can be used to supply connected terminals with power without additional cabling in a cost-effective way. The switch itself can also operate without its own power supply, powered via PoE/PoE+ as a powered device.

Maximum scalability is available through the expansion modules with six or twelve Gigabit Ethernet ports, which can simply be connected to the side as required. The expansion modules also have Gigabit combo ports, which means that a considerable number of fiber optic connections can be implemented economically and depending on use.

25 Gigabit ports on DIN rail even in the smallest of spaces. The MICROSENS Profi Line Modular Industrial Switch makes it possible.

Switch operating system, firmware and configuration data are stored on an SD card. Should a switch have to be replaced, the existing SD card is simply inserted into the new device, which automatically takes over all settings.


Products
Products
Products

MS652119PM-V2


Product is available

MS652119PM-V2

13-Port GbE Industrial PLM Switch PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

13x RJ-45, 4x SFP Slots, 2x 3plg. 24..57VDC, 1x Konsole, 1x USB, 1x SD-Slot, 2x I/O, 1x Expansion Port

Products

MS652129PM


Product is available

MS652129PM

13-Port GbE Industrial PLM Switch HI-PoE 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 4x PoE 60W, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

13x RJ-45, 4x SFP Slots, 2x 3plg. 24..57VDC, 1x Konsole, 1x USB, 1x SD-Slot, 2x I/O, 1x Expansion Port

Products

MS652159PM


Product is available

MS652159PM

13-Port GbE Industrial PLM Switch PoE+ 480W 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45), max. PSE-Budget 480W

13x RJ-45, 4x SFP Slots, 1x 3plg. 24..57VDC, 1x Konsole, 1x USB, 1x SD-Slot, 2x I/O, 1x Expansion Port

Products

MS652219PM


Product is available

MS652219PM

6-Port GbE Erweiterungsmodul 4x 10/100/1000T PoE+ 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo) für MS652119PM-V2 (auf 19-Port)

6x RJ-45, 2x SFP Slot

Products

MS652419PM


Product is available

MS652419PM

12-Port GbE Erweiterungsmodul 8x 10/100/1000T PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo) für MS652119PM-V2 (auf 25-Port)

12x RJ-45, 4x SFP Slots

Accessories
Accessories

MS140890X-4GB


Product is available

MS140890X-4GB

Storage media card 4GB for industrial switches, -40..+85°C

Accessories

MS190411-01,8


Product is available

MS190411-01,8

Konsolenkabel für Industrial Switch G6 RJ45 Stecker auf SUBD-9 Buchse, 1,8m

End of Life / Out of product range
End of Life / Out of product range

MS652119PM

show alternative

Product reached his Life-Time

MS652119PM

End of Life / Out of product range

13-Port GbE Industrial PLM Switch PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

EOL -> MS652119PM-V2

hide alternative

MS652119PM-V2

hide alternative

Product is available

MS652119PM-V2

hide alternative

13-Port GbE Industrial PLM Switch PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

13x RJ-45, 4x SFP Slots, 2x 3plg. 24..57VDC, 1x Konsole, 1x USB, 1x SD-Slot, 2x I/O, 1x Expansion Port
