Controlador de iluminación smart NeuronGrid

Controlador de iluminación smart NeuronGrid

Controlador de iluminación smart NeuronGrid

  • PoE+ LED Driver
  • Automatización de edificios orientada a objetos
  • Función de automatización predefinida - comandos de último estado/OFF/ON por fallo de alimentación
  • Potencia de la lámpara LED de hasta 30 W
Secure Download
Detail information
Description
Description

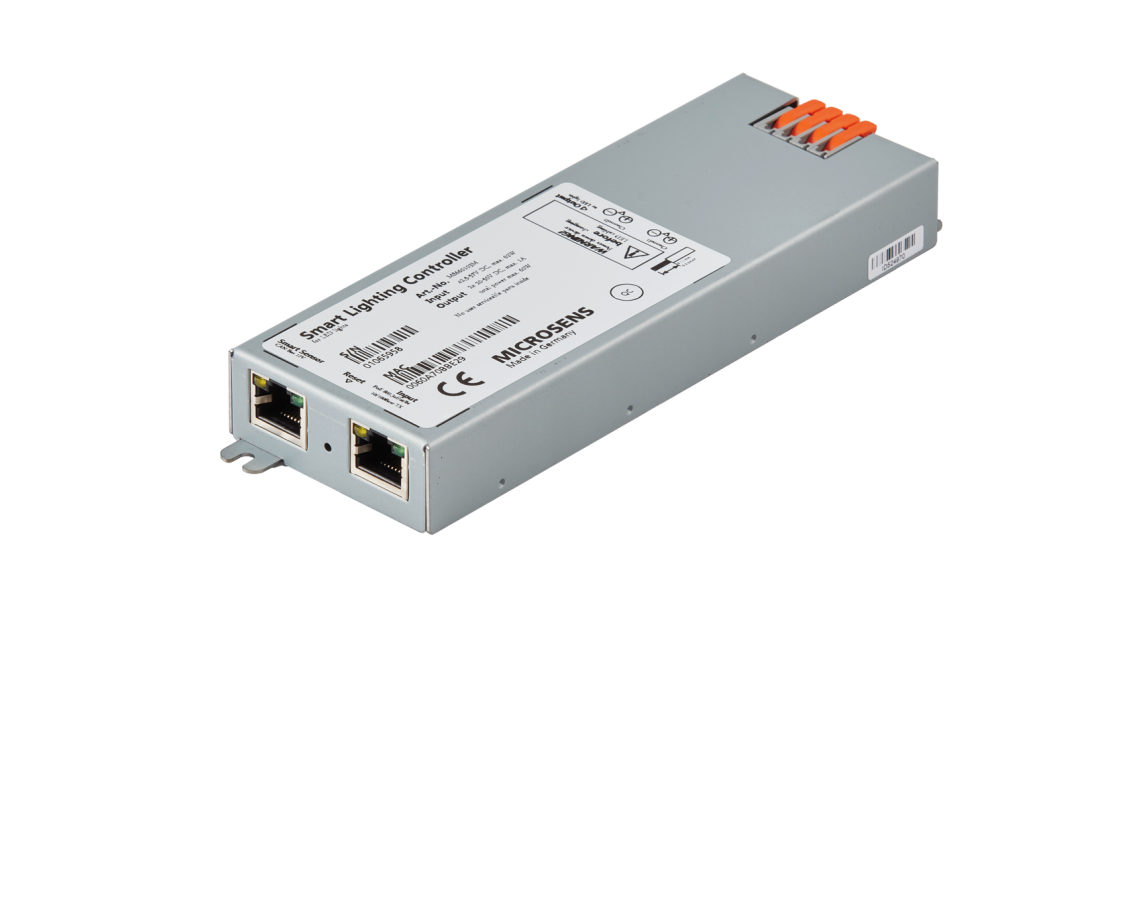

The MICROSENS is designed to drive and control LED lights. As further function the device transfers environmental data captured from a sensor device like MICROSENS Smart Sensor. Typical areas of applications are intelligent control of light and brightness in various environments like offices, hotels, hospitals, corridors and many more.

Multiple Smart Lighting Controllers are managed by the MICROSENS Smart Director App which is running on a MICROSENS G6 Switch. Optionally, the Smart Lighting Controller collects environmental data like light level, motion, room temperature or humidity from a connected sensor device. The sensor data are transferred via the network to the Smart Director App.

Continuing their tradition of providing innovative products and solutions, MICROSENS introduces the second generation of the MICROSENS now.
As a member of the MICROSENS Smart Building Solutions Family, the is an IP networking device which is supplied through the IT network with Power over Ethernet voltage (PoE+).

Features:

  • Provides electrical power to a connected LED light via Power-over-Ethernet (POE+)
  •  Selectable dimming functions for brightness control through Smart Director
  •  Manual Dimming, setting of Dimming-Level
  •  Communicates with a connected sensor device
  •  MQTT integrated (publish & subscribe)
  •  Two controller variants available which support either MICROSENS Smart Sensor or other CAN bus based Sensors like CP Electronics® Rapid™ sensor devices
  •  Measurement of LED power consumption
Products
Products
Products

MS660103M


Product is available

MS660103M

Smart Lighting Controller for MICROSENS Smart Sensor NeuronGrid (up to 2 Sensors) Network powered controller for LED lighting, Slim-Format, 1x RJ-45 jack for 10/100Base-TX, PoE++ PD input, max.60W, 1x RJ-45 jack for MICROSENS Smart Sensor MS660222, 2x Current Output for LED Light

Products

MS660104M


Product is available

MS660104M

Smart Lighting Controller for NeuronGrid Sensors (up to 6 Sensors) Network powered controller for LED lighting Desktop-Format, 1x RJ-45 jack for 10/100Base-TX, PoE++ PD input, max.90 W, 1x RJ-45 jack for MICROSENS Smart Sensor MS660222, 6x Current Output for LED Light

Accessories
Accessories

MS660309


Product is available

MS660309

Termination resistor for Smart Sensor Bus, 100 Ohm, RJ-45 plug

End of Life / Out of product range
End of Life / Out of product range

MS660202

show alternative

Product reached his Life-Time

MS660202

End of Life / Out of product range

Smart Sensor NeuronLink, Integrated Sensor for Light Level, Motion, Temperature and Humidity; cable l=1m, RJ-45 connector compatible with MS660102MI (required)

hide alternative

MS660222

hide alternative

Product is available

MS660222

hide alternative

Smart Sensor NeuronGrid, Integrated Sensor for Light Level, Motion, Temperature and Humidity; supply via bus, 2x RJ-45 jack for bus compatible with MS660301M-V4 and MS660102MMS

End of Life / Out of product range

MS660102MMS

show alternative

Product reached his Life-Time

MS660102MMS

End of Life / Out of product range

Smart Lighting Controller for NeuronGrid Sensors (up to 2 Sensors) Network powered controller for LED lighting, Slim-Format, 1x RJ-45 jack for 10/100Base-TX, PoE+ PD input, max.30W, 1x RJ-45 jack for MICROSENS Smart Sensor MS660202, 1x Current Output for LED Light

hide alternative

MS660103M

hide alternative

Product is available

MS660103M

hide alternative

Smart Lighting Controller for MICROSENS Smart Sensor NeuronGrid (up to 2 Sensors) Network powered controller for LED lighting, Slim-Format, 1x RJ-45 jack for 10/100Base-TX, PoE++ PD input, max.60W, 1x RJ-45 jack for MICROSENS Smart Sensor MS660222, 2x Current Output for LED Light
