GbE PC-Slotconverter / Bridges

GbE PC-Slotconverter / Bridges

GbE PC-Slotconverter / Bridges

  • Upgrade to fiber optic using an onboard network card
  • Simple installation and commissioning
  • No drivers required, no compatibility problems
  • Power supply via internal PC power supply (ATX), internal USB port or via PCIe bus
  • Transparent in link status through Link Through function
  • Also available in low-profile format (MS484189xxx-LP)
Download
Detail information
Description
Description

The use of special PC network cards with integrated fiber optic was the only way to provide a PC-internal fiber optic interface for connecting computers to existing Fiber to the Desk (FTTD) infrastructures, especially in the 1990s and 2000s.



MICROSENS has developed the PC slot converter in order to minimize the effort, especially during commissioning and the separate installation of driver software for the fiber optic network cards.

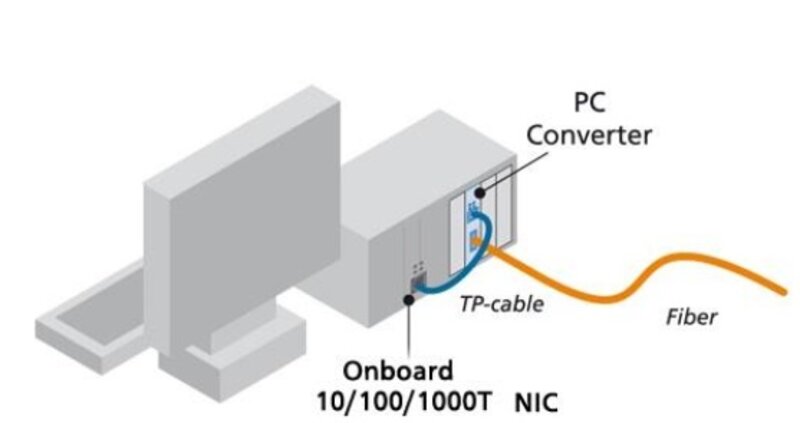

Compared to the fiber optic network card, the PC slot converter is characterized by the simple and driver-free installation and connection of fiber optic to a standard PC, independent of the slot profiles used in the PC (standard profile / low profile). The onboard network card with copper connection, which is already provided in the PC and anchored in the operating system, is still used. The PC slot converter is simply connected to the network card via a short copper cable and thus provides the ideal conversion of the fiber optic medium to copper.

Compared to the converter in desktop design, (which is often used for media conversion and is then usually supplied with 230VAC in the office via a socket located behind the PC on the floor), the PC slot converter has the advantage that it receives the operating voltage of 5 VDC from the internal PC power supply. Therefore it does not require a separate power supply. The standard power supply is realized via USB, an adapter cable also allows a 12V tap via Y-cable. A built-in DIP switch allows versatile setting options such as the selection of the transmission speed, auto negotiation or the link through function.

The fiber optic connection is made via a fixed fiber optic (optionally SC/ST multimode or SC singlemode). The interface supports Fast Ethernet (100 MBit/s) and MICROSENS also has a Gigabit counterpart with SFP slot on the fiber optic side.

Products
Products
Products

MS484189USB


Product is available

MS484189USB

GbE PC-Bridging Slotkonverter 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. USB

1x RJ-45, 1x SFP Slot, 1x SV

Products

MS484189USB-LP


Product is available

MS484189USB-LP

GbE PC-Bridging Slotkonverter LP 1x 100/1000X SFP-Slot, 1x 10/100/1000T, Low Profile, powered via PC-int. USB

1x RJ-45, 1x SFP Slot, 1x SV

Products

MS484189YPE


Product is available

MS484189YPE

GbE PC-Bridging Slotkonverter 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. PCIe 12V

1x RJ-45, 1x SFP Slot, 1x SV

Products

MS484189YPE-LP


Product is available

MS484189YPE-LP

GbE PC-Bridging Slotkonverter LP 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. PCIe 12V

1x RJ-45, 1x SFP Slot, 1x SV

Products

MS484189A24


Product is available

MS484189A24

GbE PC-Bridging Slotkonverter 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. A24

1x RJ-45, 1x SFP Slot, 1x SV

Products

MS484189A24-LP


Product is available

MS484189A24-LP

GbE PC-Bridging Slotkonverter LP 1x 100/1000X SFP-Slot, 1x 10/100/1000T, Low Profile, powered via PC-int. A24

1x RJ-45, 1x SFP Slot, 1x SV

Accessories
Accessories

MS190300-0,25


Product is available

MS190300-0,25

RJ45 Patchkabel, geschirmt, l=0.25m grau Cat6

End of Life / Out of product range
End of Life / Out of product range

MS483750

show alternative

Product reached his Life-Time

MS483750

End of Life / Out of product range

Gigabit Ethernet Adapter Card 1000BaseSX Multimode 850nm SC, PCI Express Bus

EOL -> MS484189USB zzgl. MS100200

hide alternative

MS484189USB

hide alternative

Product is available

MS484189USB

hide alternative

GbE PC-Bridging Slotkonverter 1x 100/1000X SFP-Slot, 1x 10/100/1000T, powered via PC-int. USB

1x RJ-45, 1x SFP Slot, 1x SV

End of Life / Out of product range

MS482750

show alternative

Product reached his Life-Time

MS482750

End of Life / Out of product range

PCMCIA Fast Ethernet Card 100BaseFX MMSC 32 Bit, multimode 1310nm SC, dongle-less

EOL -> MS484160USB-V2

hide alternative

MS484160USB-V2

hide alternative

Product is available

MS484160USB-V2

hide alternative

FE PC-Bridging Slotkonverter MM 1x 100FX SC/MM, 1x 10/100TX, powered via PC-int. USB

1x RJ-45, 1x SC duplex MM, 1x SV
